Karcher BD 80/100 W BP Classic

SKU: BD-80/100-W-BP Category:
  • 43″ Suction Bar
  • 32″ Cleaning Width
  • Traction Drive

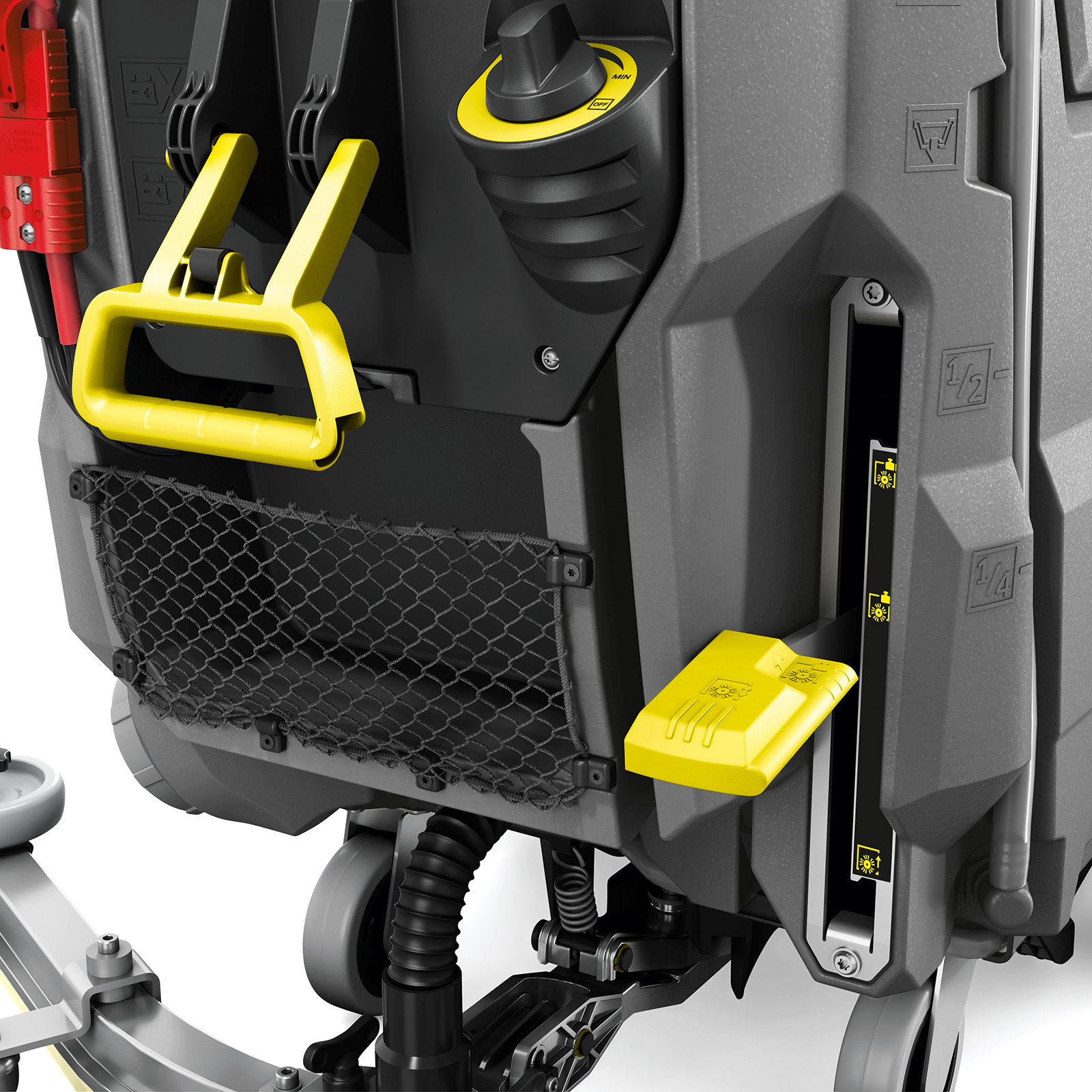

  • Storage compartment in the back for shelf charger and other accessories
  • Perfect recovery in 180 degree turns

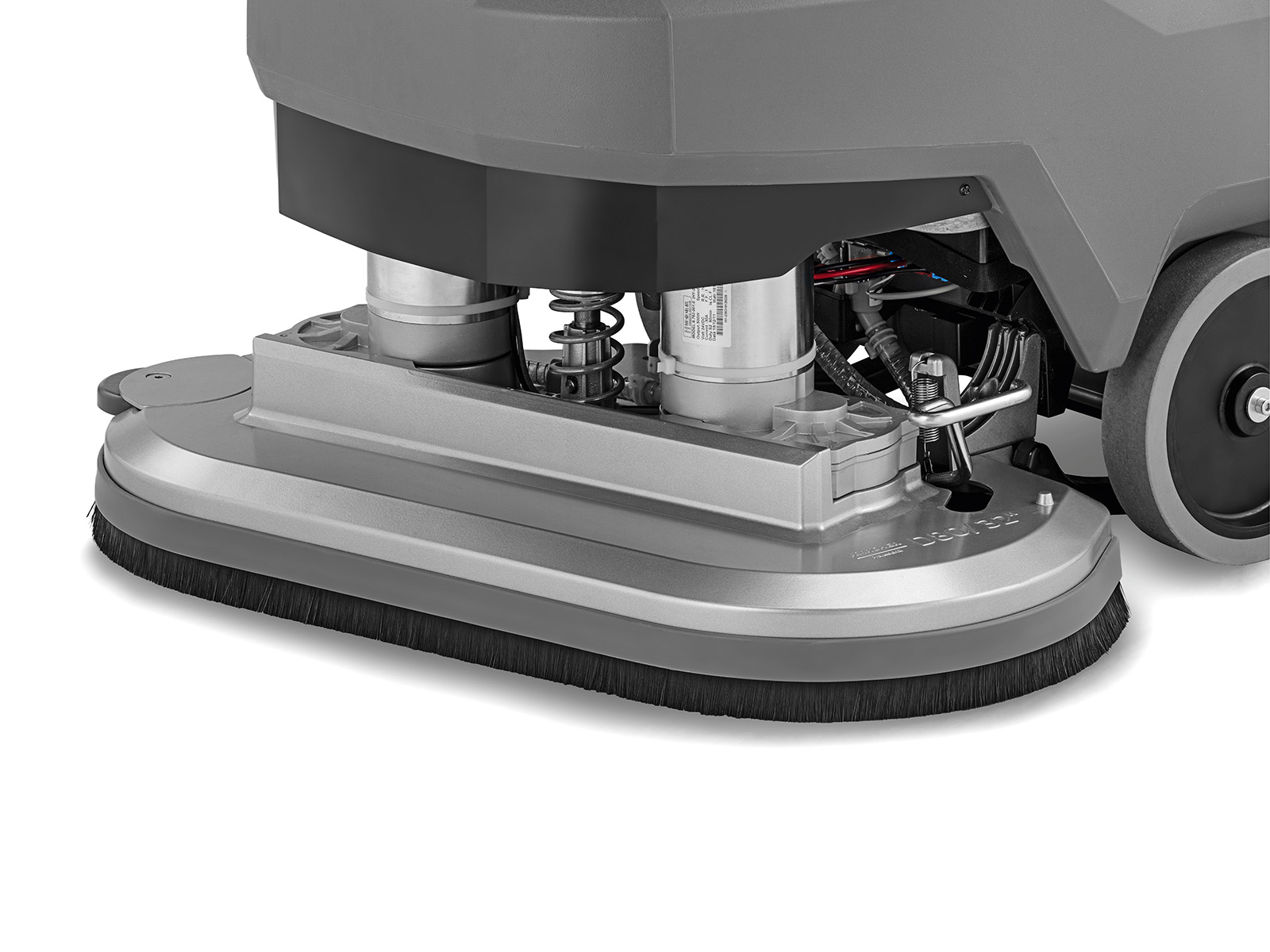

  • An automatic brake is integrated into the trans axle and a cost effective, large aluminum brush deck is included.

Karcher logo

Loading...

Quality and durability in a cost effective package.

Our BD 80/100 W Bp Classic auto scrubber provides excellent site-lines, a simple operator-friendly design, and robust materials for an efficient cleaning performance. The BD 80/100 scrubber has a powerful traction drive, which helps effortless travel of inclines and easy maneuverability. Components, which are exposed to extreme stress in tough working conditions, such as squeegee and pad brush head, are made from solid die-cast aluminum. With 32-inch disc cleaning path, a 26-gallon tank and maximum cleaning speed of up to 3 mph, which can be continuously adjusted, the machine achieves area performances of up to 35,025 ft² per hour. In the case of very stubborn dirt or for decorating, the brush contact pressure can be increased at any time from 88 to 200 lbs.

Specifications

Technical Specifications
Cleaning path/widthInch32
Brush type Pad
Brush quantityUnits2
Brush diameterInch16
Suction bar (squeegee) widthInch43
Drive Traction
Solution/recovery capacityGal26.4 / 26.4
Theoretical/practical productivitySq Ft/Hr35,025 / 22,770
Operating noise leveldBA63
Battery charger Shelf
Brush contact pressureLbs88 - 200
Brush speedRPM180
Vac motor ratingWatts600
Vac motor suctioncfm53
WaterliftIn of Water67
Weight with batteriesLbs705
Dimensions (LxWxH)Inch59 x 33 x 42

Models

Part NoDescription
9.841-456.0BD 80/100 W Bp Classic, 295 Ah wet batteries, shelf charger
9.841-457.0BD 80/100 W Bp Classic, 285 Ah AGM batteries, shelf charger

Accessories

Part No.Description
4.762-591.0Pad drive board
8.629-184.0Battery, Discover 6V/285 Ah AGM (std. with 9.841-457.0)
8.622-837.0Battery, Trojan 6V/271 Ah wet (std. with 9.841-456.0)
8.643-373.0Shelf charger for wet batteries (std. with 9.841-456.0)
8.643-374.0Shelf charger for AGM batteries (std. with 9.841-457.0)
4.777-102.0Squeegee, 1100 mm
4.037-138.0Suction blades, 1230 mm, blue
6.371-333.0Pad, green, medium-hard
4.905-000.0Disc brush, red, medium
4.905-032.0Disc brush, black, hard
4.905-031.0Disc brush, natural, soft
4.905-030.0Disc brush, white, very soft
4.037-140.0Suction blades, 1230 mm, transparent
9.753-088.0Squeegee transport plate
2.644-140.0Warning beacon add-on kit

■ Included  □ Optional

Literature

Product Sheet - Karcher BP Classic Series
