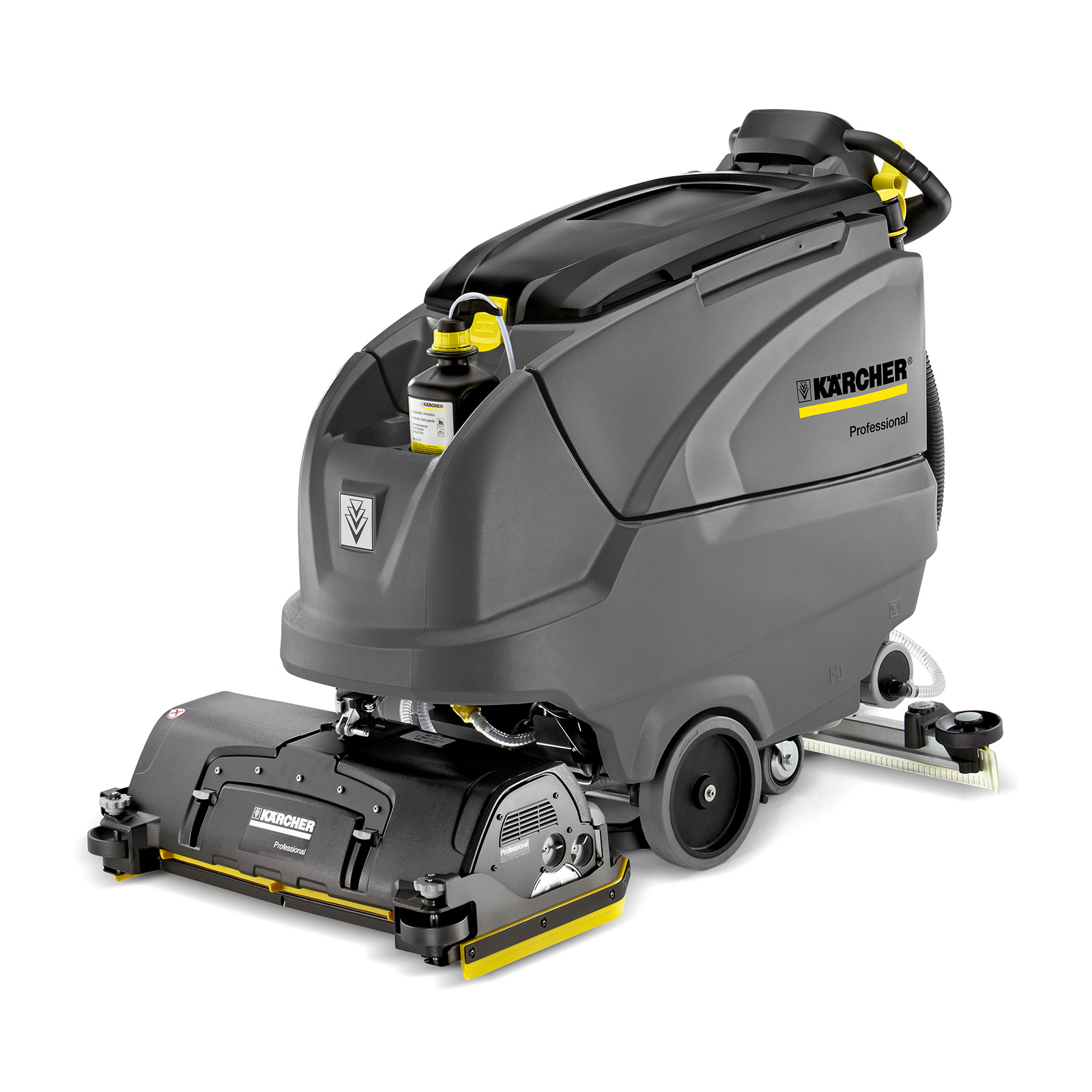

Karcher B 80 W BP Cylindrical

SKU: B-80-W-BP-C Category:
  • Cylindrical Scrub Deck
  • 39″ Suction Bar
  • 26″ Cleaning Path
  • Traction Drive
  • Decks automatically raise and lower as necessary
  • Interchangeable decks can be changed quickly and without tools

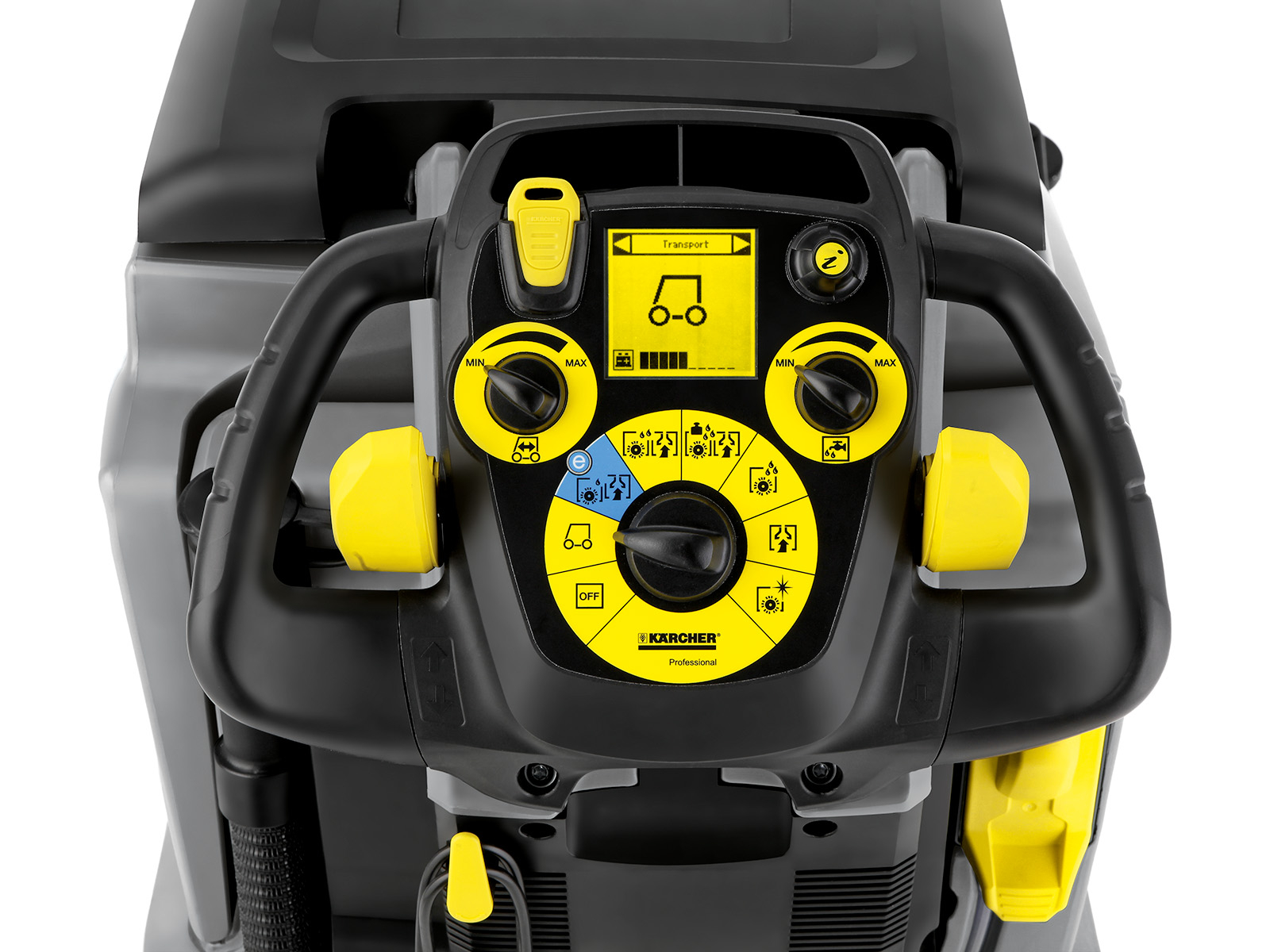

  • Easily select your cleaning mode with the easy-to-read symbols on the large 4-color display

Karcher logo

Loading...

Efficient and quite. Everything you need.

The B 80 W BP scrubbers cover a lot of area quickly, but are still easily maneuverable.  They feature a robust, interchangeable, maintenance-friendly cylindrical scrub deck.  Karcher Fleet comes pre-installed on these machines to provide you with complete visibility of your machine.

The B 80 W Bp battery-operated scrubber drier offers a variety of battery options (24 V, 225, 260 Ah and 255 Ah AGM). With fully automatic squeegee raising and lowering function, 26″ working width, large LCD color display, traction drive and KIK key system for protection against incorrect operation. Additional features include: eco!efficiency mode extends battery life, tank rinsing system for automatic cleaning of the dirty water tank without splash back as well as auto-fill function for convenient filling of the water tank. FACT technology, controls the speed of the roller brush and can be adjusted for different cleaning applications. Power Clean – 100% power, for stubborn dirt and polishing. Whisper Clean – 60% power, reduces noise levels and ensures longer working intervals with low power consumption. Fine Clean – 40% power, optimum for cleaning gray film from stoneware tiles in conjunction with green roller brush.

Easy Operation KIK System Configurable US Green Building Council LEED Seal Eco!efficiency

Specifications

TECHNICAL SPECIFICATIONS
Cleaning path / widthInch26
Brush type Cylindrical
Brush quantityUnits2
Suction bar (squeegee) widthInch39
Drive Traction
Solution / recovery capacityGal21 / 21
Theoretical / practical productivitySq Ft. Hour27,980 / 18,180
Operating noise level - Std/Eco! ModedBA69 / 66
Battery charger On Board
Brush contact pressureLbs213
Brush speedRPM400-1,500
Drive / vac motor ratingWatts350 / 580
Vac motor suctioncfm53
WaterliftIn of Water67
Weight with batteriesLbs617
Dimensions (LxWxH)Inch61 x 29 x 45

Models

Part NoDescription
9.841-198.0B 80 W Bp, R 65 cylindrical scrub deck, 24V/225 Ah wet batteries, on-board charger, with curved squeegee
9.841-200.0B 80 W Bp, R 65 cylindrical scrub deck, 24V/255 Ah AGM batteries, on-board charger, with curved squeegee
9.841-203.0B 80 W Bp, R 65 cylindrical scrub deck, 24V/260 Ah wet batteries, on-board charger, with curved squeegee

Accessories

Part No.Description
4.777-080.0Squeegee assembly, 39″ V-Shaped, oil-resistant polyurethane blades
5.035-488.0Home Base kit (adapter and cable hook)
6.980-077.0Double hook (requires Home Base kit)
8.600-251.0Cable assy, battery jumper x 15″ (required w/ no battery units)
4.035-345.0Quick fill tank system (requires Hose coupling 9.803-003.0)
9.083-003.0Hose coupling
6.273-025.0Squeegee blade set, anti-stripe oil-resistant
6.273-297.0Squeegee blade set, for textured floors
4.035-408.0KIK Key

■ Included  □ Optional

Literature

Product Sheet - Karcher 80 W Bp
