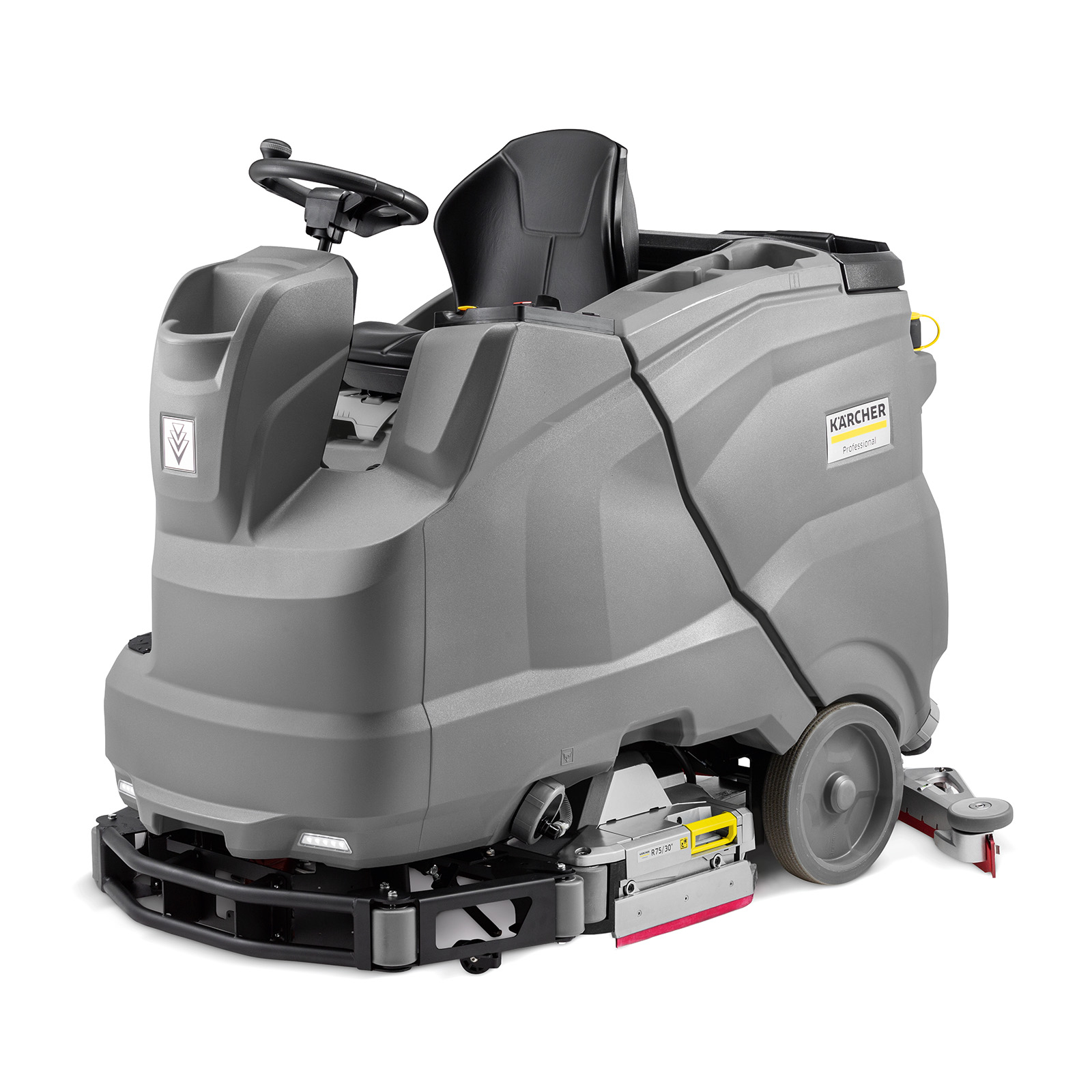

Karcher B 150 R BP

SKU: B-150-R-BP Category:

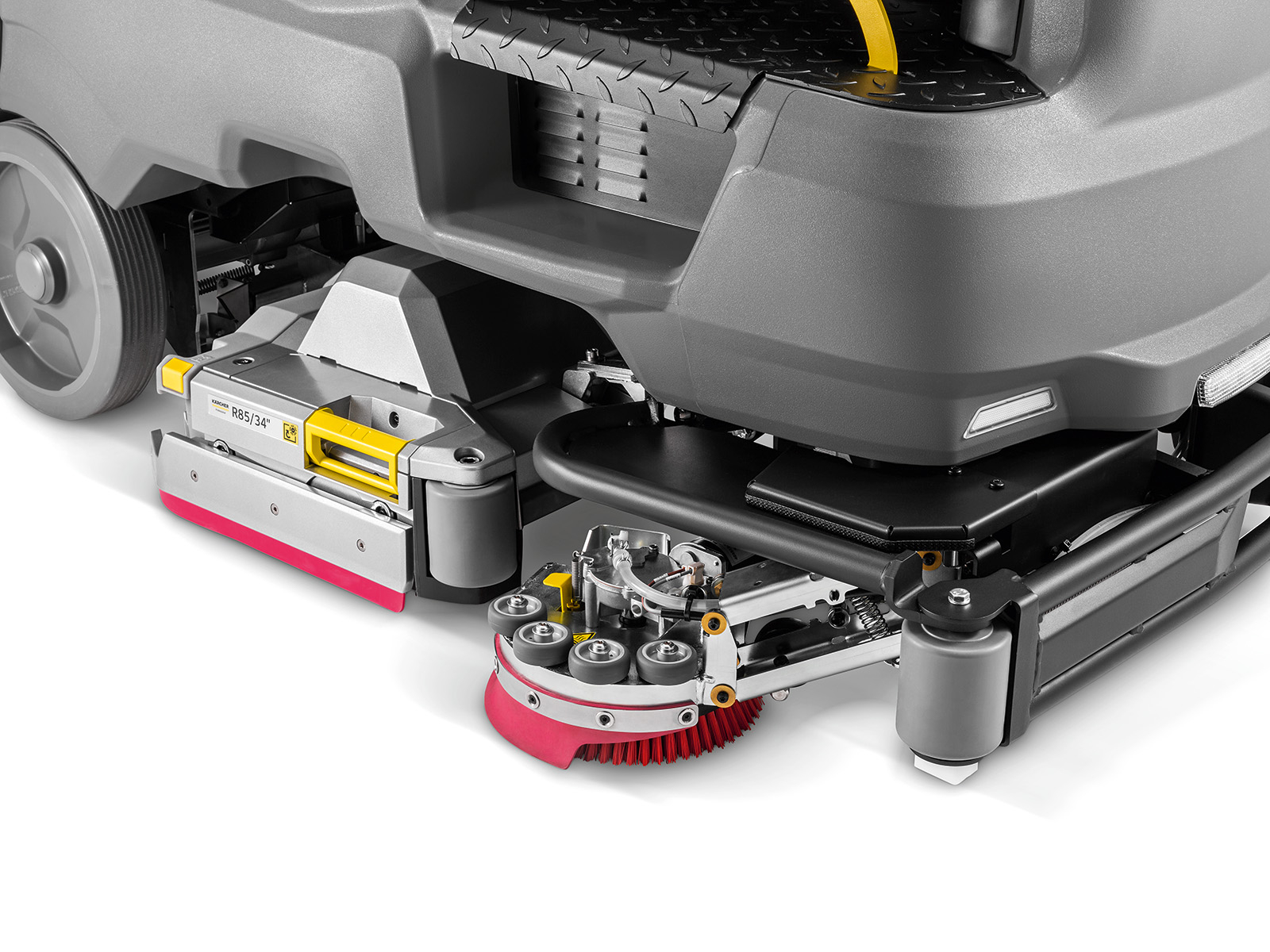

  • Cylindrical Scrub Deck
  • 37″ or 42″ Suction Bar
  • 30″ or 35″ Cleaning Path
  • Features a unique all-wheel brake system for safety
  • Utilize the large color LCD screen to adjust everything to your needs including contact pressure, water volume, brush speed, etc.

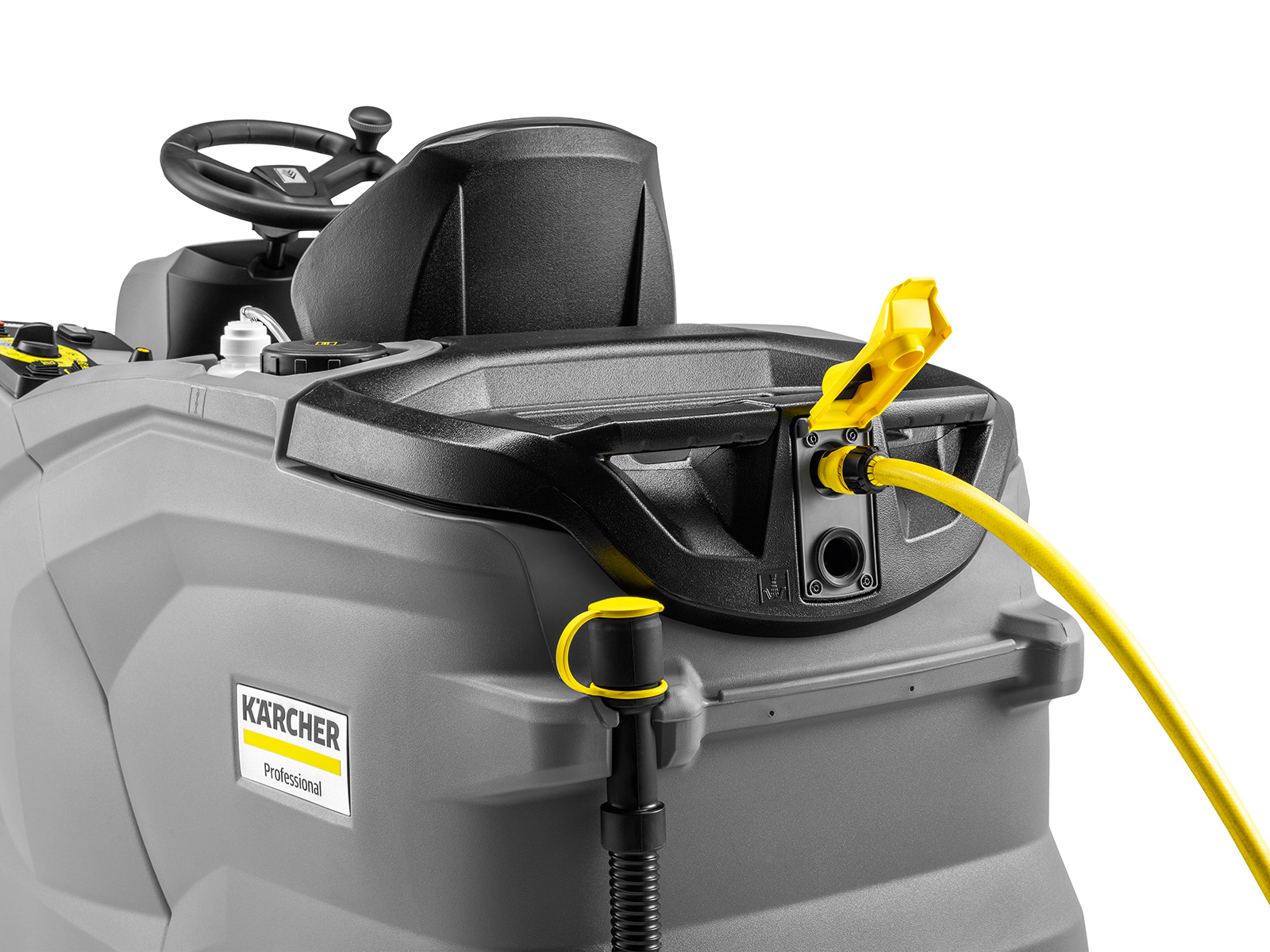

  • Auto tank-rinsing and auto-fill come standard to allow the operator to do other tasks while rinse and fill are taking place

Models shown may include optional features

Karcher

Loading...

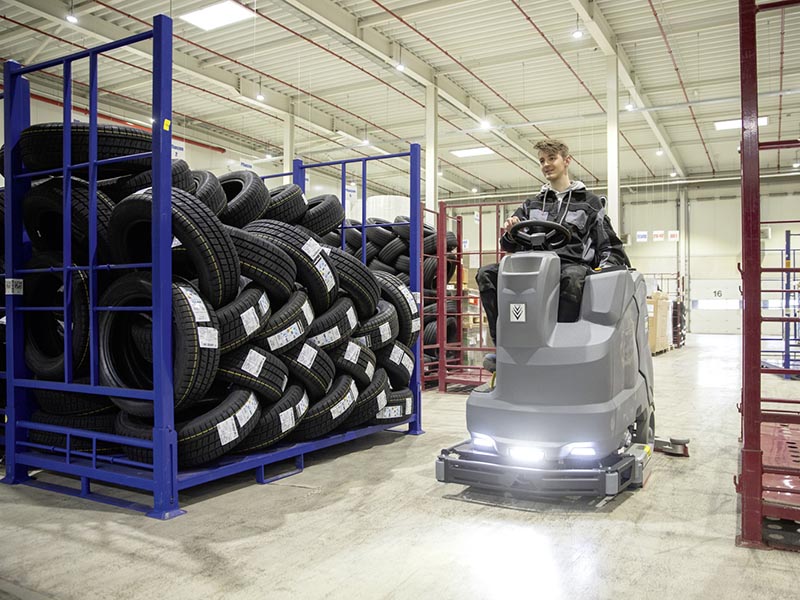

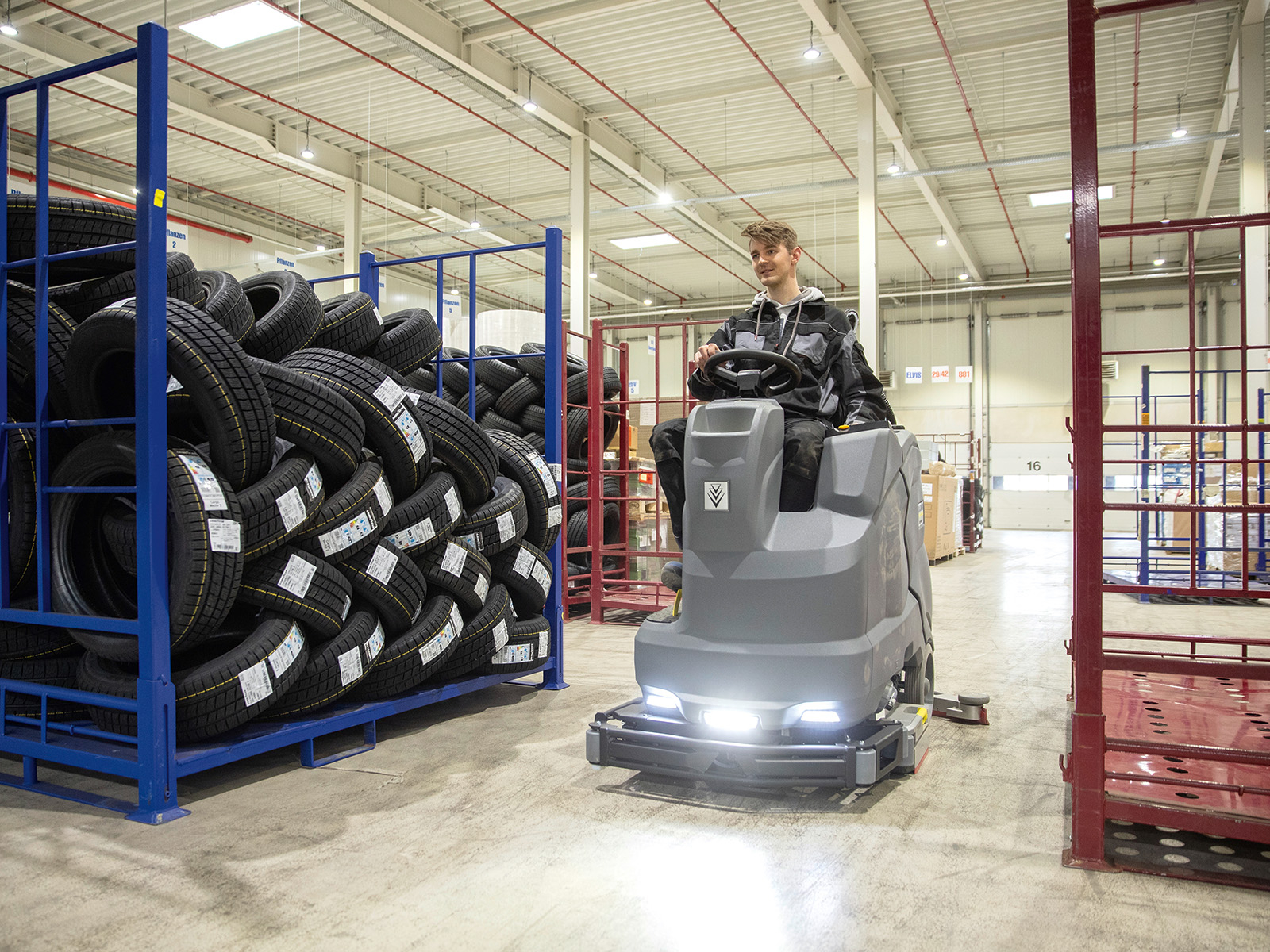

Race into efficiency with the B 150.

The B 150 R can cover up to 58,125 ft­² per hour making this one impressively productive scrubber. In addition to covering large areas quickly, we made sure that it has great visibility for safety. The B 150 R ride-on scrubber drier is full of customer-oriented design features and accessories to make cleaning safer, more convenient and more productive. Thanks to features like interchangeable cleaning heads, automatic tank rinsing system, FLEX roller brush speed control, KIK (Karcher Intelligent Key), different batteries options and available dual side brush pre-sweep system, the B 150 can be equipped to tackle many industrial cleaning applications. This model includes a 305 Ah low-maintenance batteries and dual side brushes. Optional scrub deck is available.

KIK System Auto Fill Easy Operation  FACT System Configurable USGBC Leed Rating

Specifications

Technical Specifications   B 150 R + R 75 B 150 R + R 90
Cleaning path / width Inch 30 35
Brush type   Clyindrical Clyindrical
Brush quantity Units 2 2
Brush diameter Inch 3.5 3.5
Suction bar (squeegee) width Inch 37 42
Drive   Traction Traction
Solution / recovery capacity Gal 40 / 40 40 / 40
Theoretical / practical productivity Sq Ft/ Hr 48,438 / 31,485 58,125 / 37,780
Operating noise level – std / Eco! mode dBA 67 / 64 67 / 64
Battery charger   Shelf Shelf
Brush contact pressure Lbs 245 275
Brush speed RPM 1,200 1,200
Drive / vac motor rating Watts 600 / 750 600 / 750
Vac motor suction cfm 55 55
Waterlift In of Water 72 72
Weight without batteries Lbs 959-1,146 959-1,146
Dimensions (LxWxH) Inch 65 x 31 x 56 65 x 31 x 56
Minimum turning radius Feet 2.9 2.9
Climbing ability – maximum slope % Grade 10 10
Max working speed working MPH 3.7 3.7

Models

Part No Description
9.841-290.0 B 150 R Bp, R 75 cylindrical scrub deck, 36V/360 Ah batteries
9.841-291.0 B 150 R Bp, R 75 cylindrical scrub deck, 36V/312 Ah AGM batteries
9.841-294.0 B 150 R Bp 2SB, R 75 cylindrical scrub deck, 36V/360 Ah batteries, dual side brushes
9.841-295.0 B 150 R Bp 2SB, R 75 cylindrical scrub deck, 36V/312 Ah AGM batteries, dual side brushes
9.841-292.0 B 150 R Bp, R 90 cylindrical scrub deck, 36V/360 Ah batteries.
9.841-293.0 B 150 R Bp, R 90 cylindrical scrub deck, 36V/312 Ah AGM batteries.
9.841-296.0 B 150 R Bp 2SB, R 90 cylindrical scrub deck, 36V/360 Ah batteries, dual side brushes
9.841-297.0 B 150 R Bp 2SB, R 90 cylindrical scrub deck, 36V/312 Ah AGM batteries, dual side brushes

Accessories

Product No. Description
4.777-080.0 Squeegee assembly, 39″ V-shaped polyurethane, oil-resistant (std. on R 75 machines)
4.777-413.0 Squeegee assembly, 42″ V-shaped polyurethane, oil-resistant (std. on R 90 machines)
8.622-842.0 Batteries 6V/360 Ah, wet*
8.629-184.0 Battery 6V/312 Ah, AGM*
8.628-408.0 Battery charger for wet batteries (use with 8.622-842.0)
8.600-015.0 Battery charger for AGM batteries (use with 8.629-184.0)
2.642-058.0 Spray Suction kit – for cleaning areas not easily accessible by machine
6.435-733.0 Non-marking rear wheel – for sensitive floors
4.444-015.0 Suction hose accessories – for taking in water from corners
4.035-516.0 360° Warning beacon
4.777-402.0 37″ Straight squeegee assembly (for R 75 machines)
4.777-403.0 42″ Straight squeegee assembly (for R 90 machines)
6.273-215.0 Blue squeegee blade (2 required)
6.273-209.0 Brown, oil-resistant squeegee blade
6.273-206.0 Brown, streak-free oil-resistant squeegee blade
2.641-811.0 Cleaning agent dosing system DS 3†
6.435-810.0 Front tires, traction – oil-proof with V profile and high traction tire compound
6.951-073.0 Replacement side broom (1 pack)

*See model description to find the battery the machine comes with.
† Can be directly connected to the main water supply; the fresh water tank is filled with the mixture of water and cleaning agent. Also in connection with the ABS filling system.

■ Included  □ Optional
