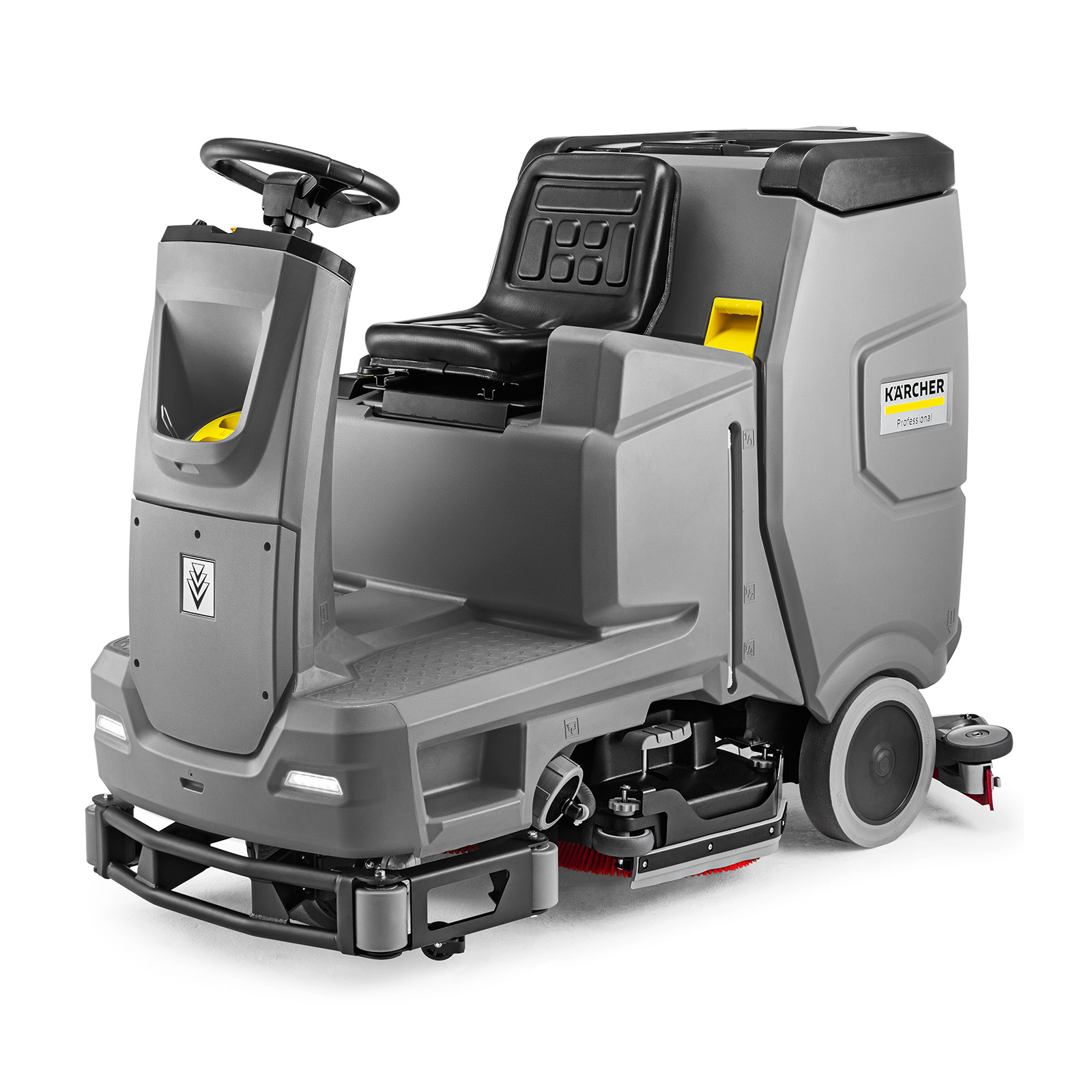

Karcher B 75/110 R Bp

SKU B-110-R Category
  • Cylindrical or Disc Scrub Deck
  • 37″ Suction Bar
  • 30″ Cleaning Path
  • Front bumper and driving lights

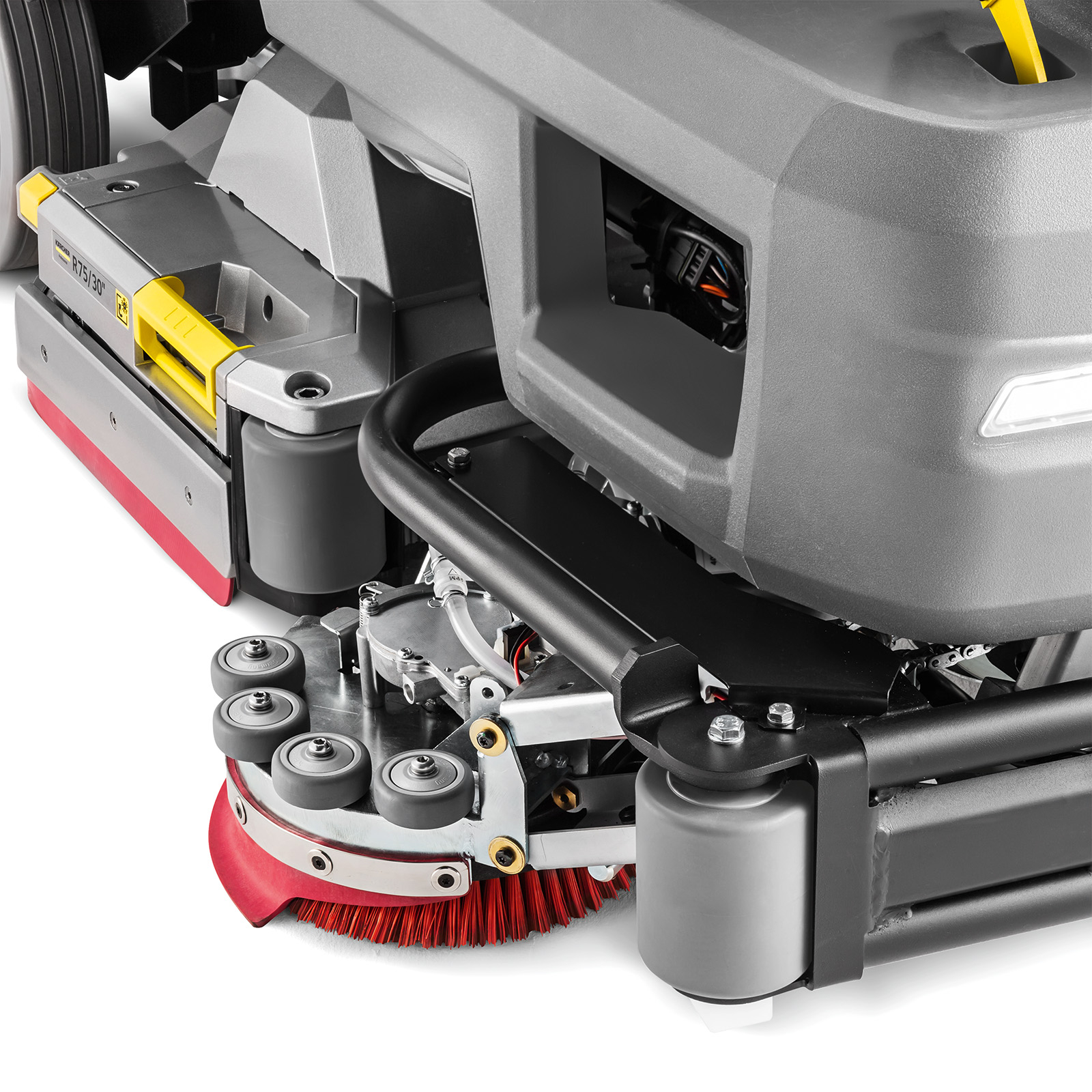

  • Side scrub deck for close to the edge cleaning

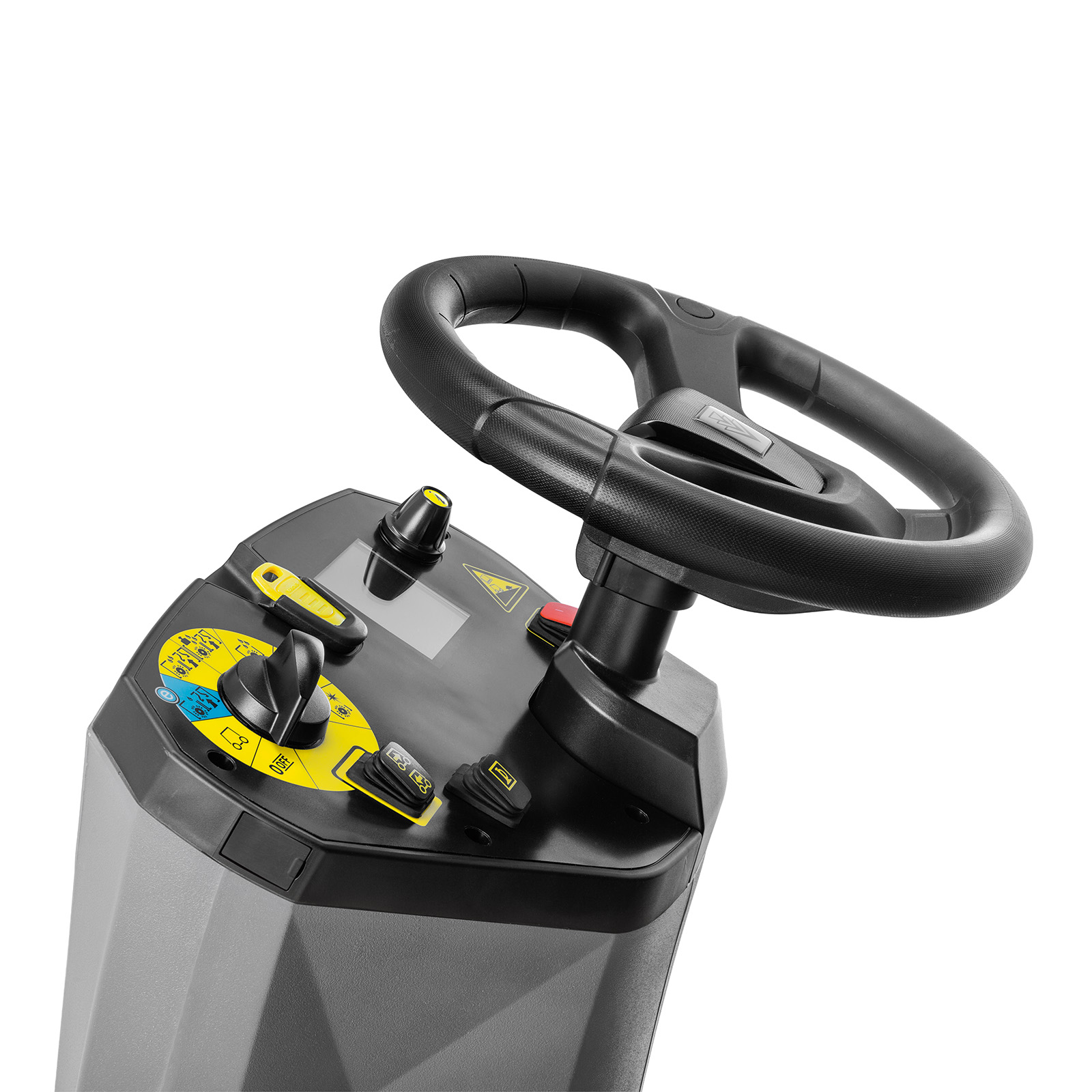

  • Adjustable comfort seat
  • Hill driving assistant and automatic electronic brake

Models shown may include optional features

Karcher

Call to Order

Outstanding suction performance.

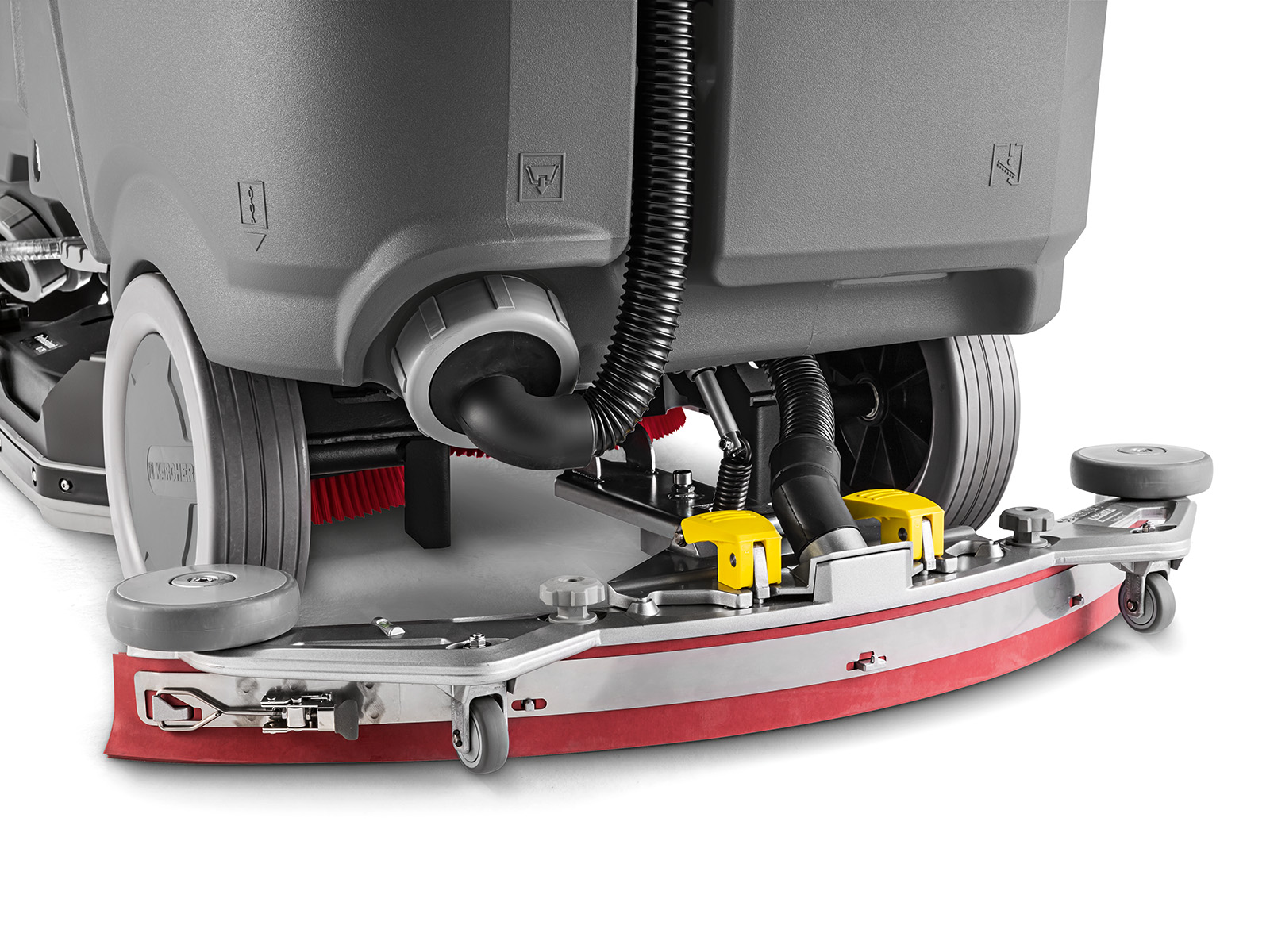

The brand-new B 110 R is perfect for all floors.  The robust front bumper prevents damage to the machine and other objects, while speed dependent water supply saves on water and detergents. The newly designed squeegee picks up more water and requires less attention, and the adjustable seat allows workers to feel more comfortable during long shifts.

Eco!Flow KIK System Auto Fill Easy Operation Configurable USGBC Leed Rating

Capacity

29/29 Gal

Cleaning Path

30 In.

Specifications

Technical Specifications
Cleaning path / width Inch 30
Brush type   Clyindrical or Disc
Brush quantity Units 2
Brush diameter Inch 4″ cylindrical, 15″ disc
Suction bar (squeegee) width Inch 37
Drive   Traction
Solution / recovery capacity Gal 29 / 29
Theoretical / practical productivity Sq Ft/ Hr 48,440 / 31,485
Operating noise level dBA 59-74
Battery charger   Shelf
Brush contact pressure Lbs 165
Brush speed RPM 180 – 1200
Drive / vac motor rating Watts 600
Vac motor suction cfm 53
Waterlift In of Water 68
Weight without batteries Lbs 1190
Dimensions (LxWxH) Inch 65 x 30 x 52
Minimum turning radius Feet 2.87
Climbing ability – maximum slope % Grade 10
Max working speed working MPH 3.8

Models

Part No. Description
9.841-441.0 BD 75/110 R Bp, Wet battery, 30″ disc scrub deck
9.841-444.0 BD 75/110 R Bp, AGM battery, 30″ disc scrub deck
9.841-445.0 BD 75/110 R Bp, Wet battery, 30″ cylindrical scrub deck
9.841-449.0 BD 75/110 R Bp, AGM battery, 30″ cylindrical scrub deck

Accessories

Part No. Description
4.778-007.0 950 mm parabolic squeegee
2.763-005.0 D 75 scrub deck*
2.763-047.0 R 75 scrub deck*
4.039-366.0 Linatex squeegee blade set
4.035-605.0 Red brush (for R 75 scrub deck)
6.907-731.0 Green brush (for R 75 scrub deck)
6.907-732.0 Balck brush (for R 75 scrub deck)
6.907-730.0 Orange brush (for R 75 scrub deck)
6.907-729.0 White brush (for R 75 scrub deck)
4.039-357.0 Polyurethane replacement squeegee blade
2.644-231.0 Spray suction kit
4.039-350.0 Warning beacon kit
4.039-327.0 Lid with tank rinsing
2.644-245.0 Dose system
4.035-406.0 Home Base box
4.039-349.0 Mop Home Base attachment kit
8.622-835.0 Trojan T105 225 Ah battery
8.632-254.0 Discover EVG76A-A 255 Ah battery
8.644-222.0 Shelf charger for wet batteries
8.643.374.0 Shelf charger for AGM batteries
8.644-917.0 Right side scrub deck

*Depending on model selected

■ Included  □ Optional
◆ Optional, must be installed at the factory.

Literature

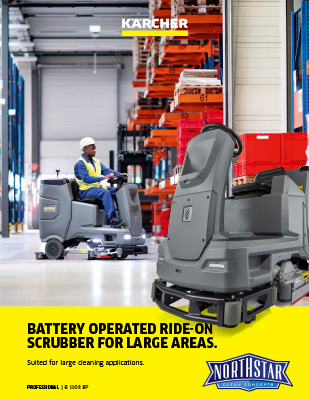

B 75/110 R Product Sheet Product Sheet – Karcher B 75/110 R Bp
