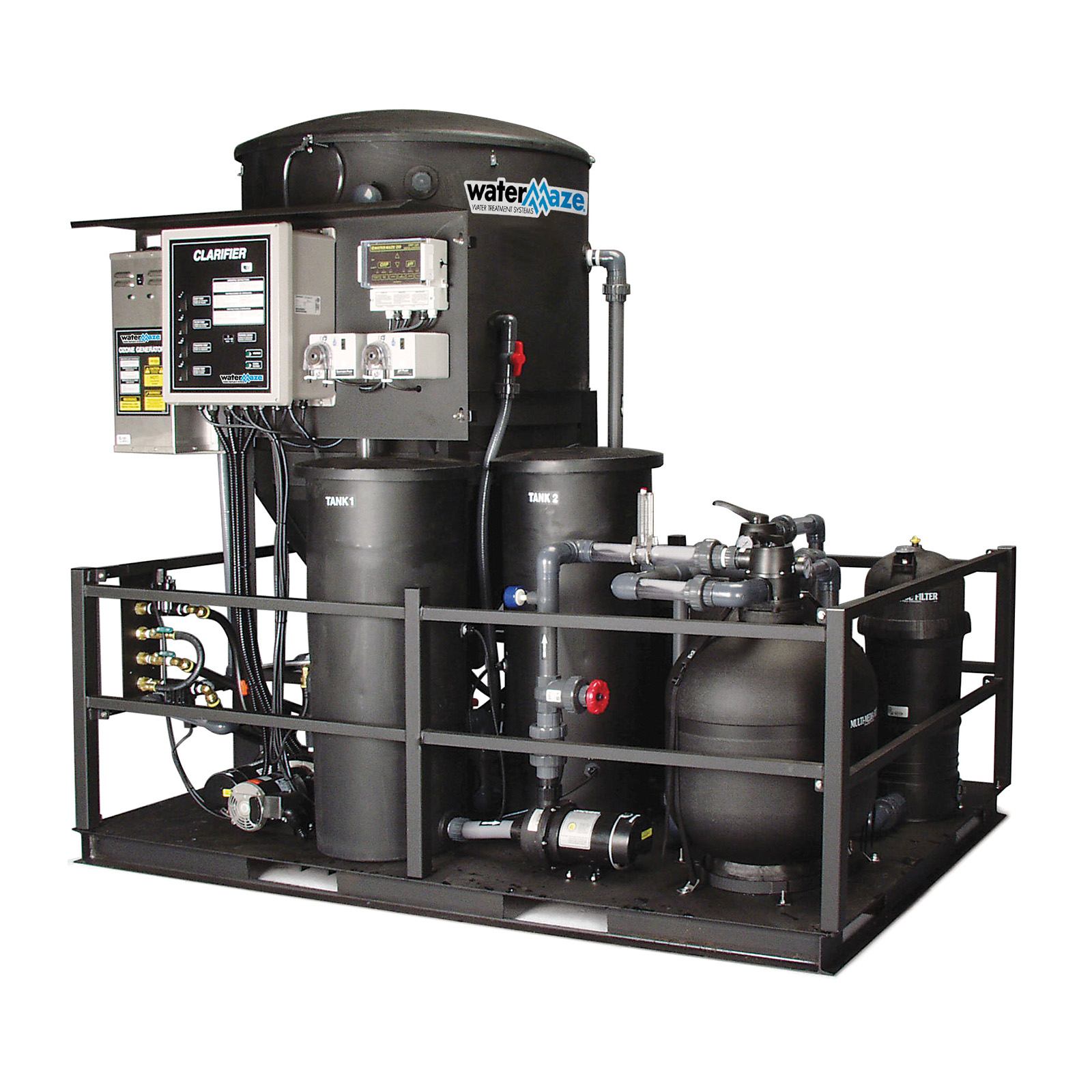

Custom Clarifier System

SKU Clarifier-Sys Category
  • Customizable to fit unique water treatment needs
  • Flow rates at up to 30 GPM (6.8 cubic meters/hour)
  • Expand system capacity
  • UV- and corrosion-resistant

Water Maze

Customized clarifiers can incorporate many options tailored to your unique situation. Start with a bare tank and add the options to optimize the treatment of your water. The CLT models are capable of pre-treatment, sewer discharge or recycling of wash water with flow rates of up to 30 gallons per minute. Not limited to but may include, belt-mop skimmer, auto-purge systems, auto-circulation systems, pH (only) controller, ORP/pH controller, dual pH Controller, and Bio-remediation.

Models

Model Part No Description Capacity (Gal) Flow GPM
CLT-600 Special Modular Clarifier System Base Unit 600 1 – 30
CLT-300 Special Modular Clarifier System Base Unit 300 1 – 15

Options

Part No Step-Base Unit Description
Special 3A-600, -300 Belt Mop Skimmer, 120 V/6 Amp, w/Oil Decanter Container
Special 7B-600, -300 AMC-1000D Auto-purge System (85 psi) 120 V/2 Amp +*
Special 7D-600, -300 pH (only) Contoller, Peristaltic Pump, 120 V/1 Amp +*
Special 7G-600, -300 Auto-water Discharge/Circulation Valve System, 120 V/2 Amp +*
Special 7E-600, -300 Integrated Compact CoAg (in lieu of stand-alone Compact CoAG module) +
Special 7F-600, -300 MetalR+ Chemical Injection Package (option to be used only w/CoAg modules) +
8.906-478.0 7H-600, -300 Sludge Tub with Lid
Special 6-600, -300 Self Cleaning Screen (mounted inside CLT)

CLT-600 ONLY
Special 7A-600 600-gallon Mounting Shield +
Special 3B-600 Coalescing cones (2) w/Funnel Oil Skimming, without Oil Decanter Container
Special 4B-600 8 Additional Coalescing Cones (for a total of 10)
Special 7C-600 UV Ozone System (4 bulb), 120 V/9 Amp +*
Special 2-600 CoAg Mixing Chamber (inside CLT tank)
Special 5-600 Biomedia Kit (EoFill)

CLT-300 Only
Special 7A-300 300-gallon Mounting Shield +
Special 3B-300 Coalescing cones (2) w/Funnel Oil Skimmer, w/Oil Decanter Container
Special 4A-300 4 Additional Coalescing Cones (for a total of 6)
Special 2-300 CoAg Mixing Chamber (inside CLT tank)
Special 7C-300 UV Ozone System (2 Bulb), 120 V/9 Amp +*
    + Factory Install Only. * Requires Rain Guard & Bracket option. NOTE: Sump pump sold separately.
