CLT-600 Modular Clarifier

SKU: 1.103-435.0 Category:
  • Expand system capacity
  • UV- and corrosion-resistant
  • Provides cushion in handling high volumes of wash water

Water Maze

Loading...

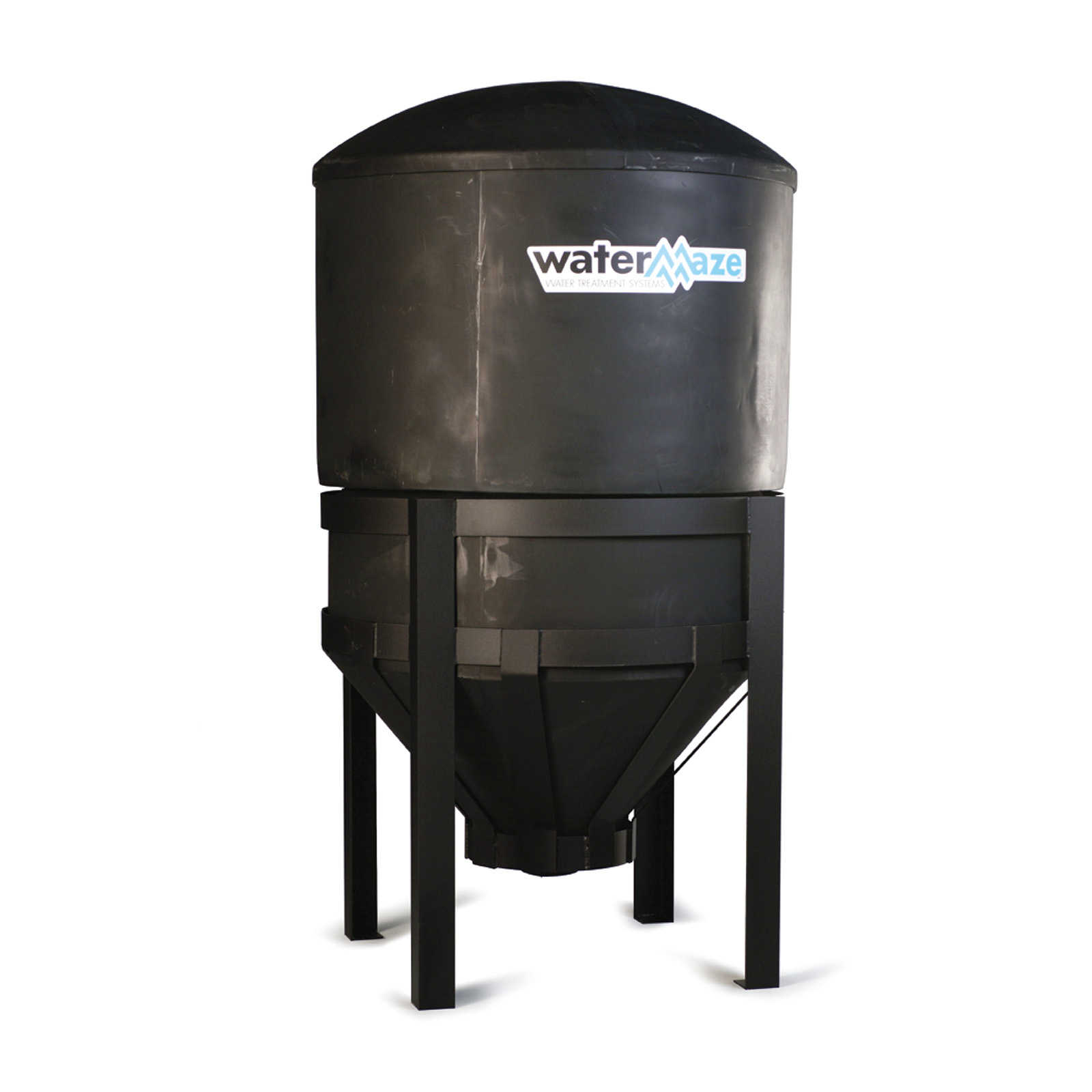

The CLT-600 is an above-ground, cone-bottom tank used to enhance existing pit systems that may be too small or do not provide adequate pre-treatment. With its 600-gallon capacity, this cone-bottom tank can provide lower clean-out maintenance costs compared to many in-ground pit systems, and it can be applied as pre-treatment, post-treatment, or as a stand alone water clarifier treatment system. The CLT-300 utilizes cross-linked polyethylene cone-bottom tanks with steep, 55-degree slopes for maximum solids separation. Each tank has a full open top with removable lid and includes heavy duty metal stand with cradle. These base models are also incorporated into other Water Maze clarifier models and can be an economical alternative to expensive pit system reconstruction costs.

Models

ModelPart NoDescriptionCapacityFlow GPM
CLT-6001.103-435.0Polishing Tank600 gal
SpecialModular Clarifier System Base Unit600 gal1 - 30

Options

Special3A-600Belt Mop Skimmer, 120 v/6 Amp, w/Oil Decanter Container
Special7B-600AMC-1000D Auto-purge System (85 psi) 120 V/2 Amp +*
Special7D-600pH (only) Controller, Peristaltic Pump, 120 V/1 Amp +*
Special7G-600Auto-water Discharge / Circulation Valve System, 120 V/2 Amp +*
Special7E-600Integrated Compant CoAg (in lieu of stand-alone Compacy CoAG module) +
Special7F-600MetalR+ Chemical Injection Package (option to be used only w/CoAg modules) +
8.906-478.07H-600Sludge Tub w/Lid
Special6-600Self Cleaning Screen (mounted inside CLT)
Special7A-600600-Gallon Mounting Shield +
Special3B-600Coalescing cones (2) w/Funnel Oil Skimming, without Oil Decanter Container
Special4B-6008 Additional Coalescing Cones (for a total of 10)
Special7C-600UV Ozone System (4 bulb) 120 V/9 Amp +*
Special2-600CoAg Mixing Chamber (inside CLT tank)
Special5-600Biomedia Kit (EoFill)
+ Factory Install Only. * Requires Rain Guard and Bracket option. Note: Sump pumps sold separately.
