SKU 1.103-511.0 Category
  • Designed to interface with pretreatment & post treatment modules
  • Stainless steel skid with painted carbon steel enclosure
  • Lockable front door
  • Easy access to components (pump, piping, and electrical)

Water Maze

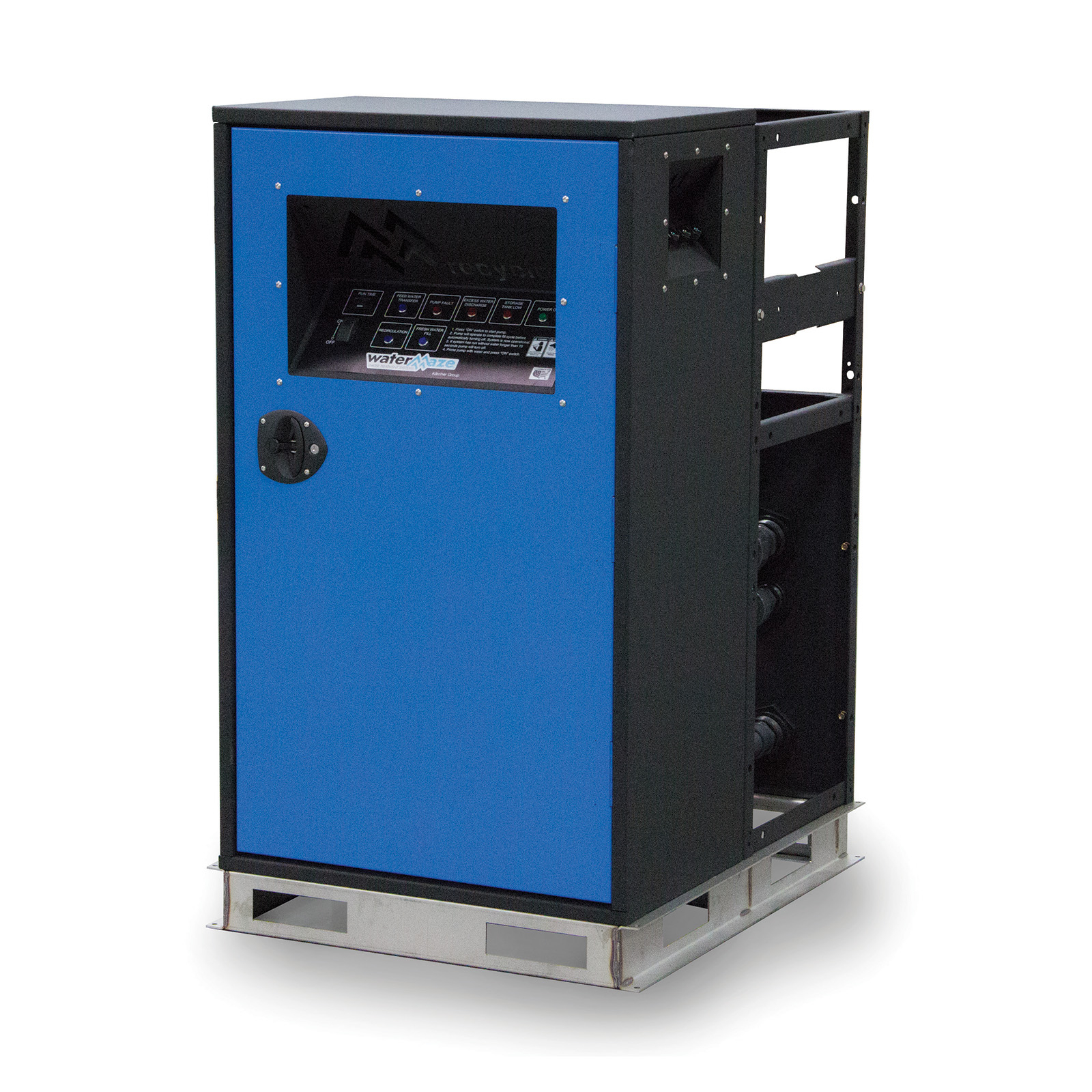

A compact water management control center, the REC3-30A is an upgrade to the REC2-20A module. It is a versatile water management module that pumps water from upstream pre-treatment tanks or pit system to downstream reuse storage tanks. When combined with the ZCF filtration module, it pumps influent water through the filters to remove particulate, as well as provides pressurized water for backwashing and for recycling purposes. It provides makeup water, as well as discharges any excess water volume.


Model Part No Description Flow GPM Transfer Rate GPM Voltage/Phases Amps
REC3-30A 1.103-511.0 Water Management Pumping System Up to 20 Up to 30 230/1 20
REC3-30A Special Special REC3-30A with 2 HP Self-Priming Pump Up to 20 Up to 40 230/1 20

Dimensions (approximate): Physical: 38″ x 31″ x 53″ Shipping: 58″ x 41″ x 66″ Estimated product tare weight: 325 lbs. Estimated ship weight: 525 lbs.


Part No. Description
8.928-603.0 Ozone Generator Kit for REC3-30A +
1.103-467.0 PM-1000D BioSystem – Bioremediation to consume dissolved organic matter

+Factory Install Only


REC3-30A Product Sheet Product Sheet – Water Maze REC3-30A
