SKU: 1.103-513.0 Categories: ,
  • Plug and play filtering
  • Standard stainless steel skid
  • Two media filters with automatic back washing
  • Two automatic control valves

Water Maze

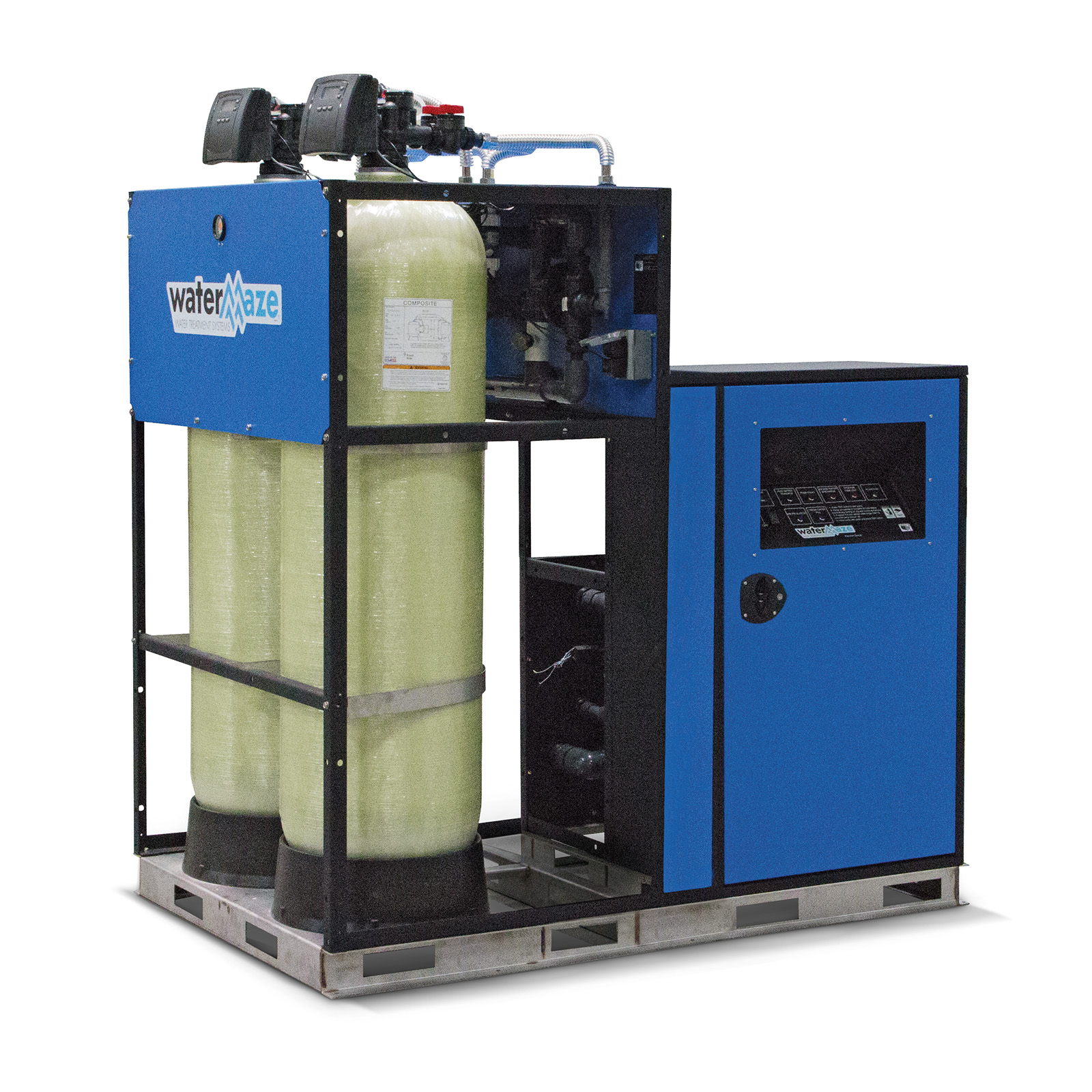

The REC-ZCF3-30 is a major advance in filtration performance. Delivering superior recycled water quality with fully automatic operation, the plug-and-play unit is pre-piped and wired, ready for connection to tanks and wash process. Flexible programming and self-cleaning backwash cycles enables large volumes of waste water to recycle while generating a minimum amount of waste volume. Using robust, industry-standard components built into a highly functional structural steel frame with a stainless steel base. As a powerful and flexible pumping and filtration system that can serve as the hub of a wide range of treatment system processes.


Model Part No Description Flow GPM Voltage/Phases Amps
REC-ZCF3-30A 1.103-513.0 Pumping & Filtration Sytem Up to 30 230/1 20
REC-ZCF3-30A Special Special REC-ZCF3-30 with 2 HP Self-Priming Pump Up to 40 230/1 20

Dimensions (approximate):
REC-ZCF Physical: 70” x 49” x 81” Shipping: 84” x 56” x 86” Estimated product tare weight: 1,726 lbs.
ZCF Physical: 46” x 34” x 81” Shipping: 66” x 53” x 86” Estimated product tare weight: 1,250 lbs.
REC Physical: 38” x 31” x 53” Shipping: 58” x 41” x 66” Estimated product tare weight: 325 lbs.


Part No Description
8.928-603.0 Ozone Generator Kit for REC-ZCF3-30A & REC3-30A ONLY+

+Factory Install Only
