WB Series Waste Water Evaporator Combustion

SKU: WB-Evaporator Category:
  • Waste streams up to 120 gallons per hour
  • Temperatures up to 2000°F
  • Top-of-the-line immersion tube jet burner components
  • Auto purge, auto start/stop and auto fill come standard
  • Heat-resistant, heavy-duty stainless steel sparger tube

Water Maze

Loading...

The WB series is the first to use the extra-high efficient submerged combustion technology to deliver 100% heat exchanger efficiency sending the heat directly into the water, not up a vent stack, creating significant operational and energy cost savings. There are two models for handling waste streams at 60 and 120 gallons per hour. Featuring top-of-the-line immersion tube jet burner components, with a solid-state flame control monitor, the WB models are capable of creating temperatures of up to 2000°F, releasing hot flue gases directly into the water.

Models

ModelPart NoDescriptionBTUEvaporation TechFlow Rate GPH

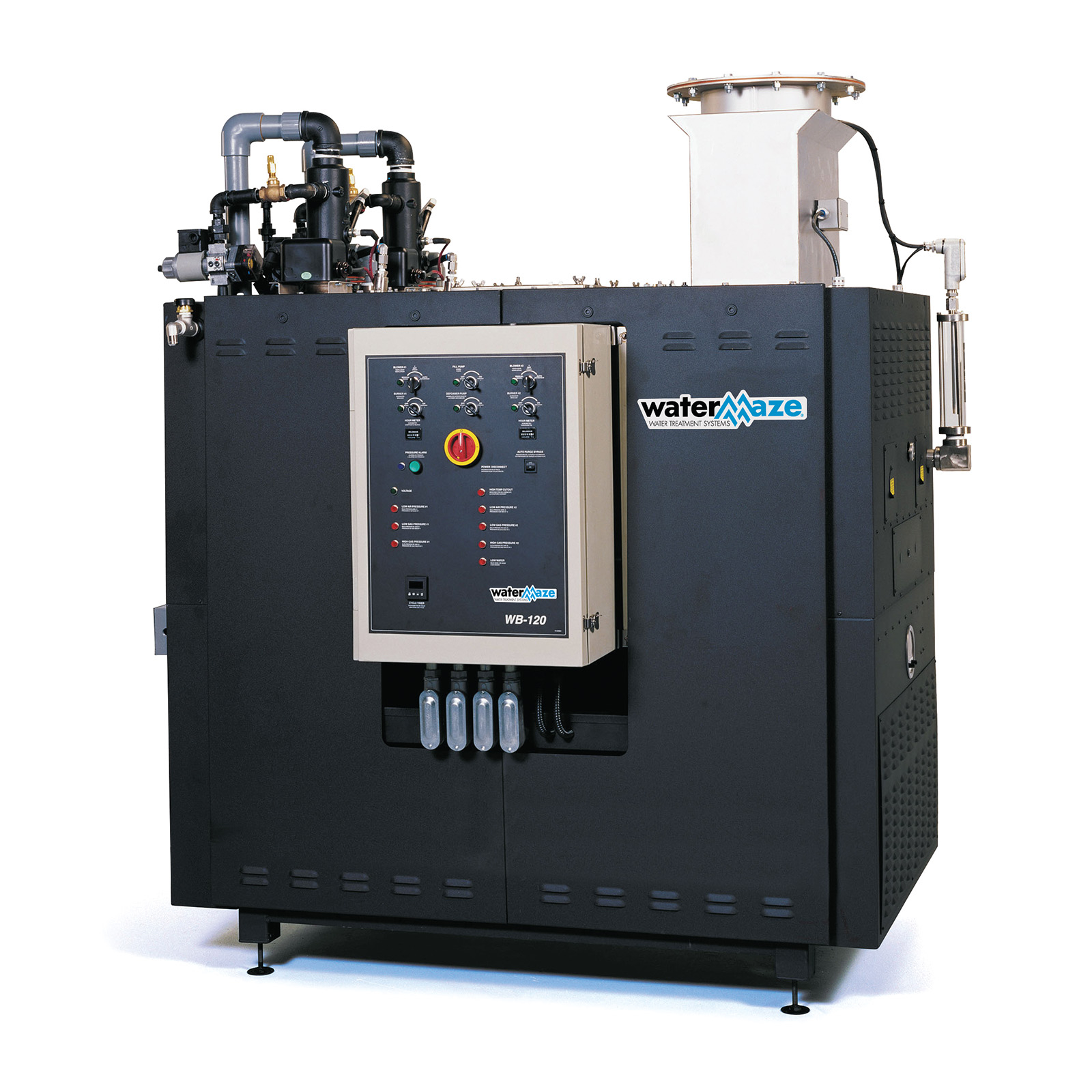

WB-120A1.103-483.0Wastewater Evaporator1,142,000Combustion1 – 120

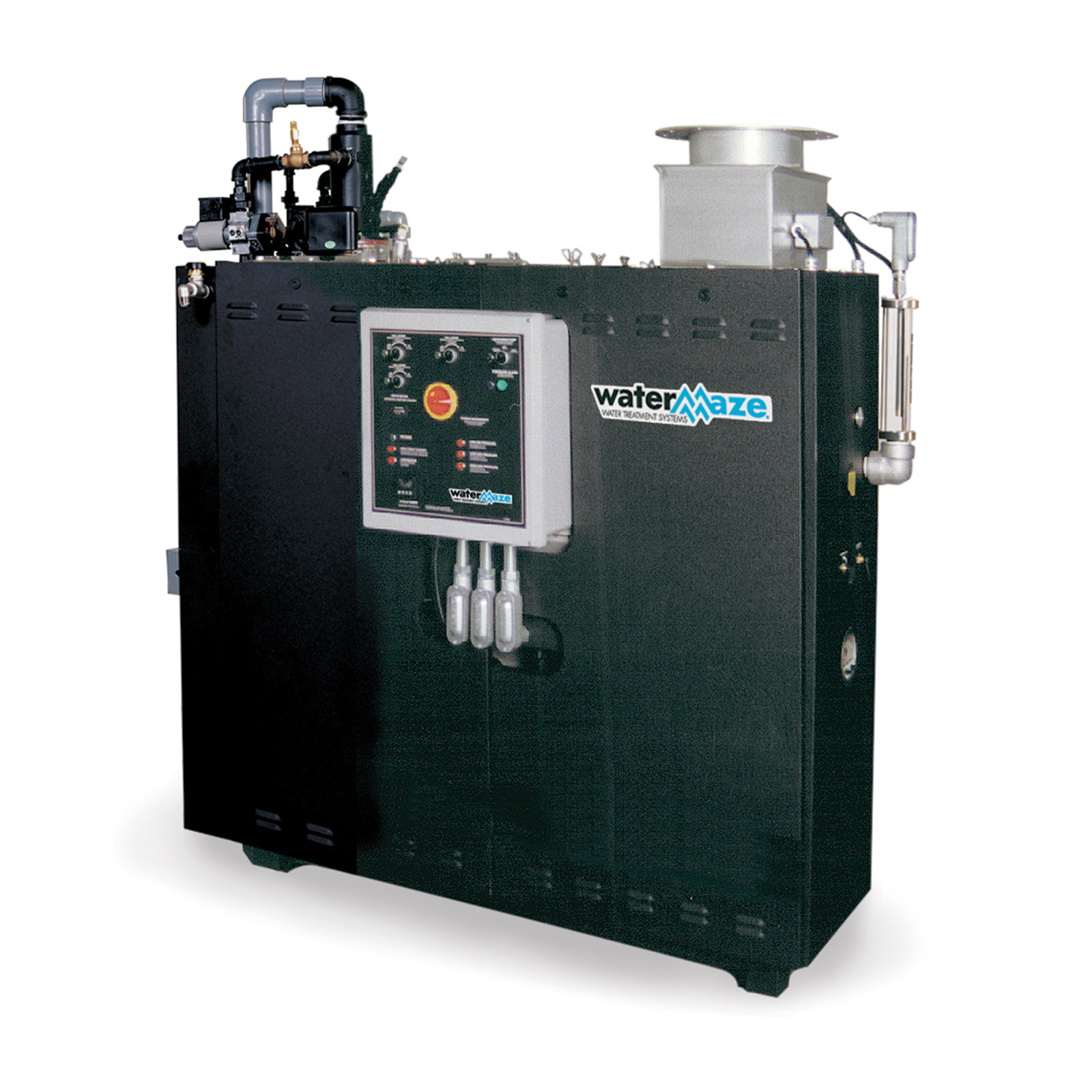

WB-50A1.103-474.0Wastewater Evaporator571,000Combustion1 – 60

Literature

Product Sheet - Water Maze WB Series Evaporator Combustion
