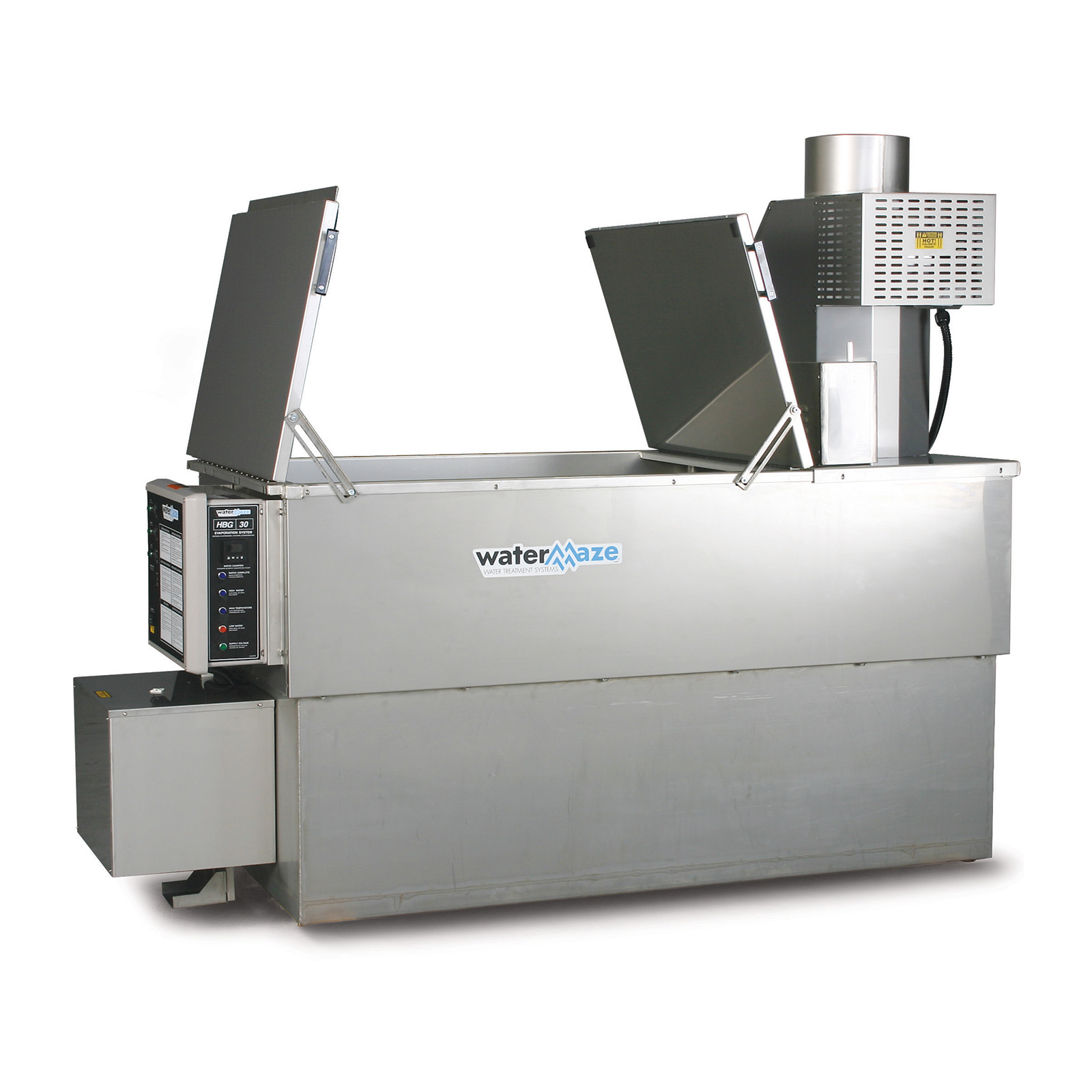

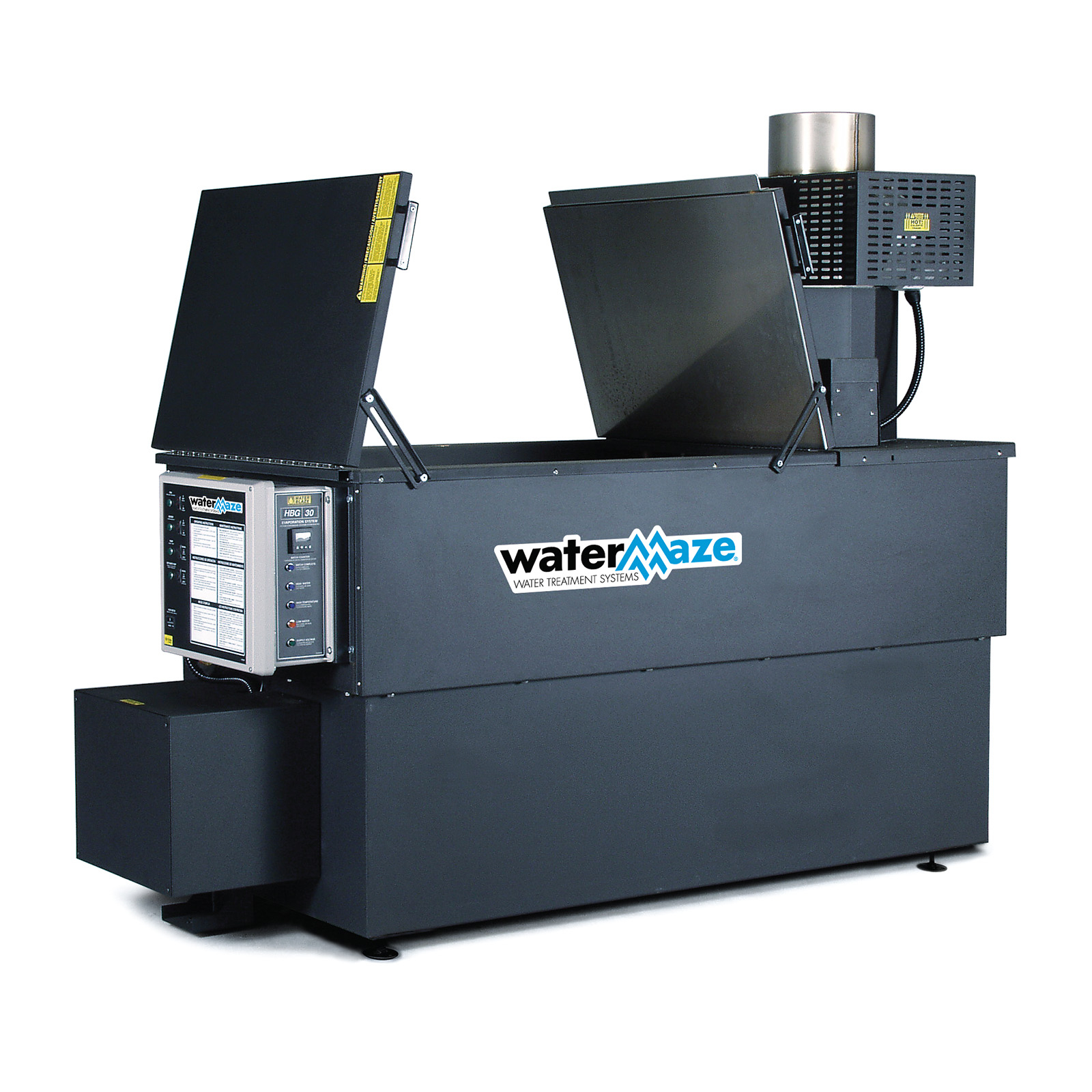

HBG-30 Waste Water Evaporator Hot Plate

SKU: 1.103-449.0 Category:
  • Evaporates waste water up to 30 gallons per hour
  • Natural gas-heated system
  • Combustion box made of advanced heat reflective material

Models shown may include optional features

Water Maze

Loading...

The natural gas-heated HBG system is capable of evaporating wastewater at up to 30 gallons per hour. The combustion box in the HBG is made of advanced heat reflective material and features a unique energy-efficient design for reflecting the heat directly onto the floor of the evaporation tank for energy cost savings. A high-efficiency burner shoots a flame, fueled by natural gas or propane, into the combustion chamber for unusually high energy efficiency. The unit is made of heavy-duty steel, insulated and double lined for both energy efficiency and safety.

Models

ModelPart NoDescriptionBTUEvaporation
Technology
Flow Rate GHP
HBG-30D1.103-449.0Wastewater Evaporator390,000Hot-Plate1 – 30

Options

Part NoDescription
8.903-740.0Air Diaphragm Fill Pump & Level Controls for Auto Fill (compressed air required, 3 cfm at 60-100 PSI) ‡
8.903-753.0Electric Centrifugal Fill Pump & Level Controls for Auto Fill ‡
8.903-741.0Motorized Belt Oil Skimmer, 316L Stainless Steel ‡
8.906-074.0Chemical Injector, Defoamer, Air-Injected ‡
8.906-073.0Inline Chemical Injector for Anti-foam or Rust Inhibitor, Electric-Powered ‡
8.903-749.0Tank Conversion to 316L Stainless Steel ‡
8.903-750.0Tank Conversion to AL-6XN ‡
8.906-077.0Conversion from Natural Gas to Propane ‡
8.717-742.010″ Flue Pipe Rain Shield
SPECIALConvert All Carbon Steel Parts to Stainless Steel ‡
‡ Factory Install Only

Literature

Product Sheet - Water Maze HBG-30 Evaporator Hot Plate
