Karcher KM 100/120 R Bp

SKU 9.899-870.0 Category
  • Debris container holds up to 31 Gal

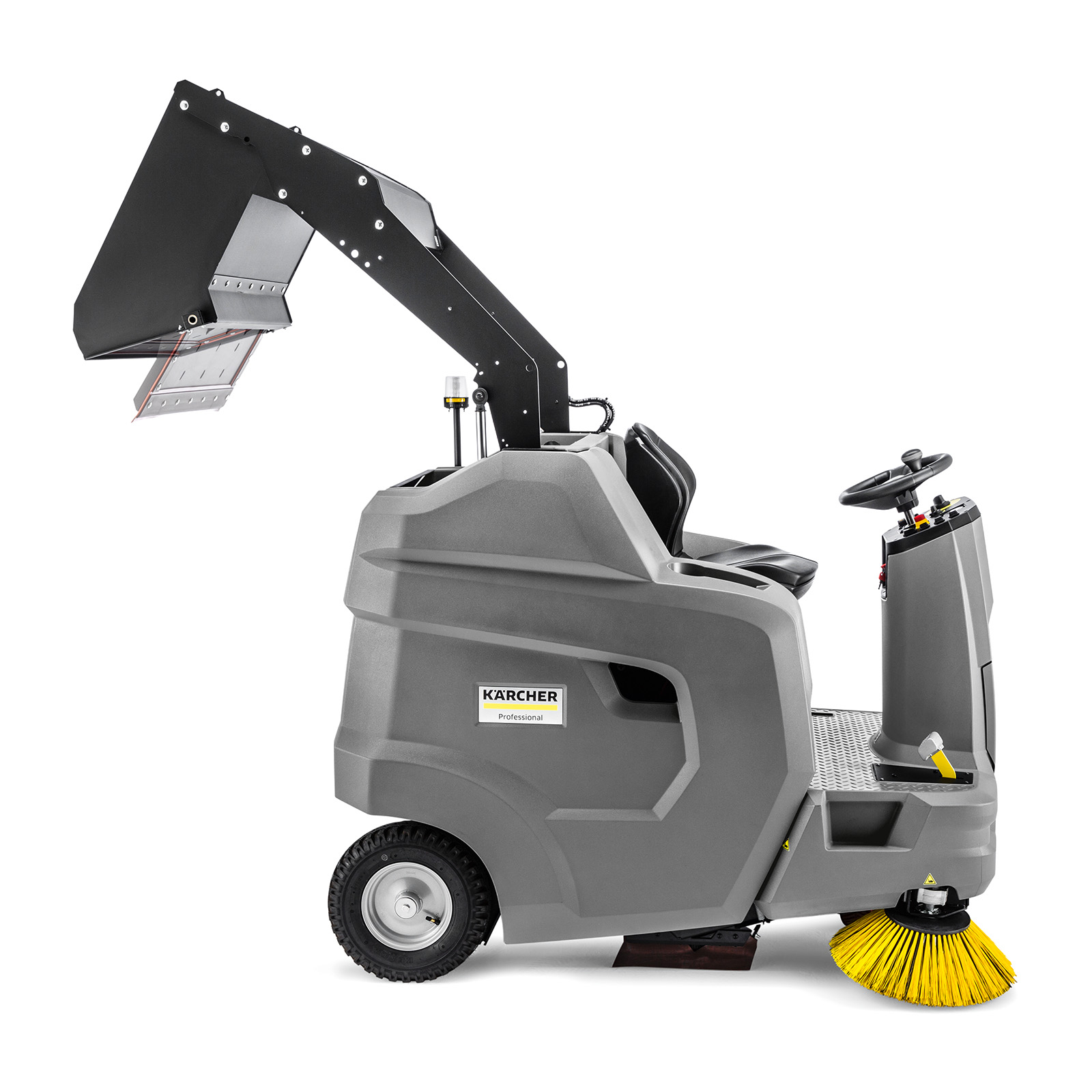

  • Easy waste disposal with hydraulic container emptying high dump (>4ft 11in)
  • Up to 3.5 hours of run time with a fully charged battery
  • Working speed of 4.35 mph for higher productivity

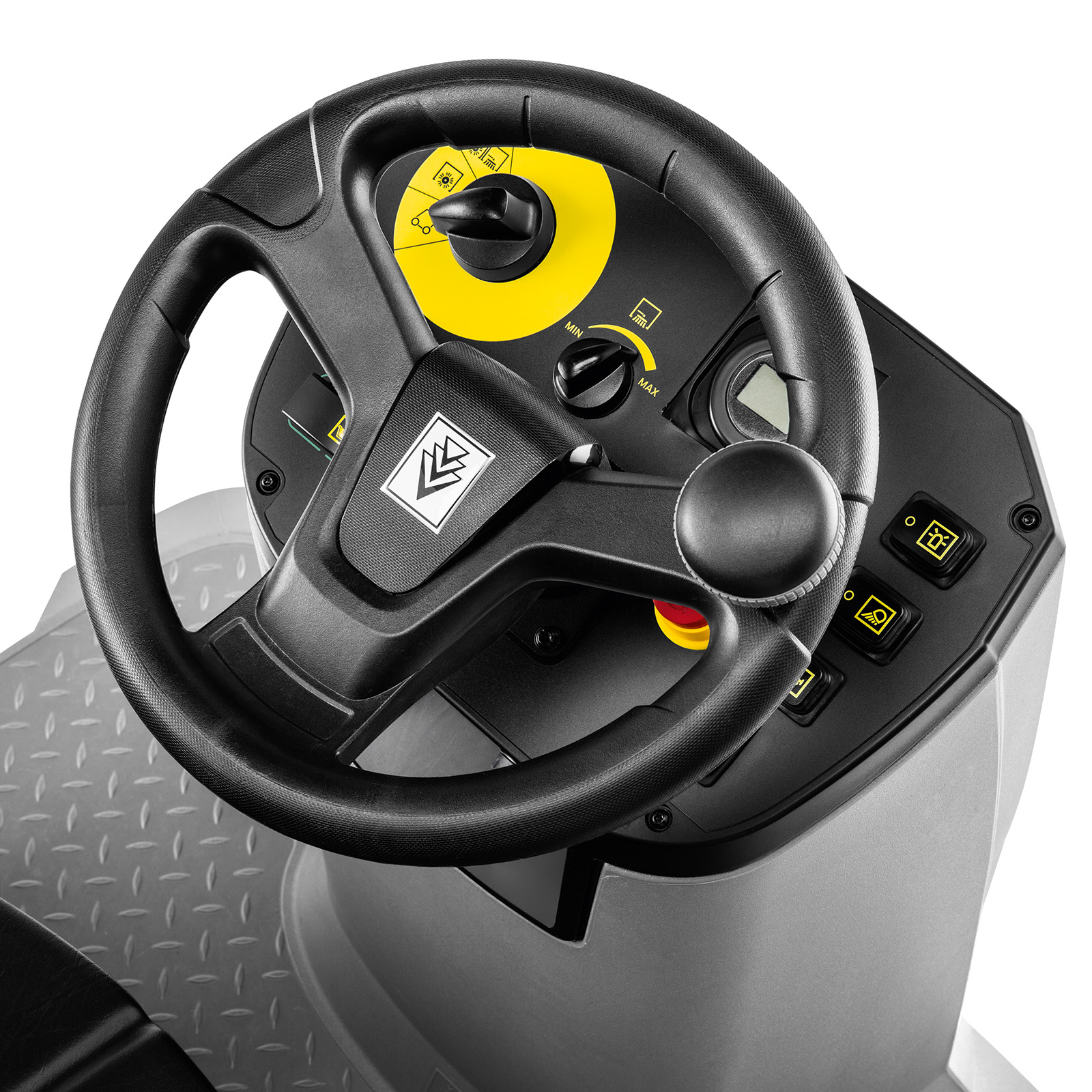

  • Convenient operation with logically linked function

Models shown may include optional features


Maximize productivity and clean any environment.

Featuring a floating main roller brush system for exceptional sweeping results, the battery powered KM 100/120 R Bp ride-on sweeper achieves a high productivity rate on one charge, while emitting zero emissions. The traction drive sweeper is perfect for larger cleaning tasks whether they are indoors or out. The side brush is retractable to prevent damage, and has an adjustable speed control for dusty areas to protect the user’s health.

The sweeper features a large (65 square feet) self-cleaning filter to handle very dusty applications, and a spacious 31.7-gallon debris container with hydraulic high dump functionality. Control elements are conveniently positioned and user-friendly, and the adjustable driver’s seat provides excellent visibility. Maintenance is a breeze with easily accessible parts, and no tools are required to change the filter or roller brush. For added customization, the KM 100/120 R can be equipped with an optional protective roof or vacuum holder.

Equipment Type

Sweeper – Riding


Technical Specifications
Cleaning path Inch 28.7 to 50
Brush quantity (std/optional) Units 1 / 2 or 4
Brush diameter Inch 5
Main broom speed RPM 600
Debris container capacity Gal 31.7
Debris container emptying height Inch 60
Total machine battery voltage V 24
Filter area Sq Ft 64.5
Practical productivity Sq Ft/Hr 75,577
Climbing ability % Grade 18
Weight with batteries Lbs 1,580
Dimensions (LxWxH) Inch 67 x 47 x 54


Part No. Description
9.899-870.0 KM 100/120 R Bp, AGM Batteries, shelf charger


Part No. Description
6.905-095.0 Main broom
6.905-986.0 Side broom
8.629-184.0 Battery pack 24V, 6v, AGM (three required)
8.642-664.0 Battery charger, 24V, 50A
6.414-532.0 Round filter
6.815-172.0 Key
2.853-095.0 Deluxe seat add-on kit

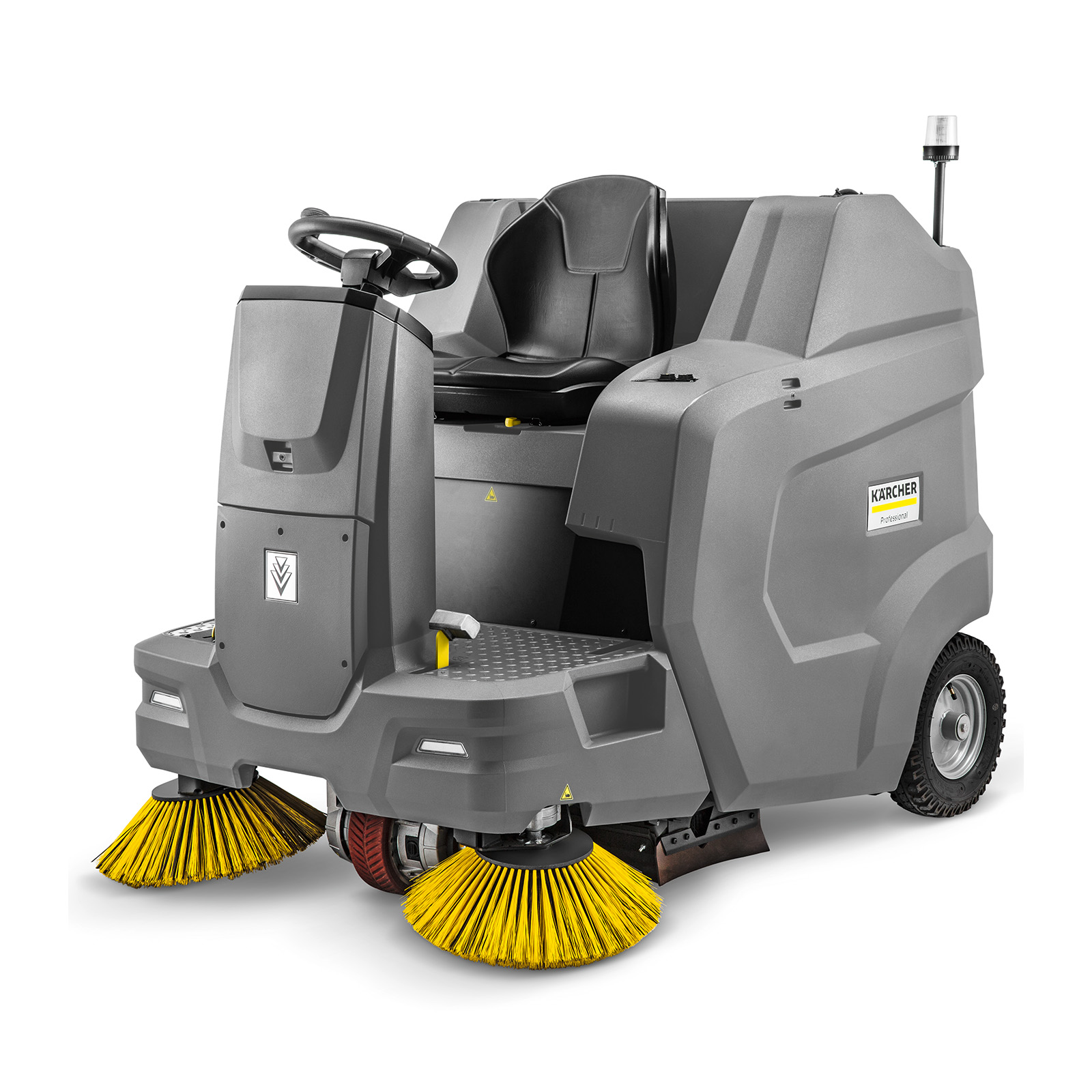

2.852-913.0 Left side broom add-on kit

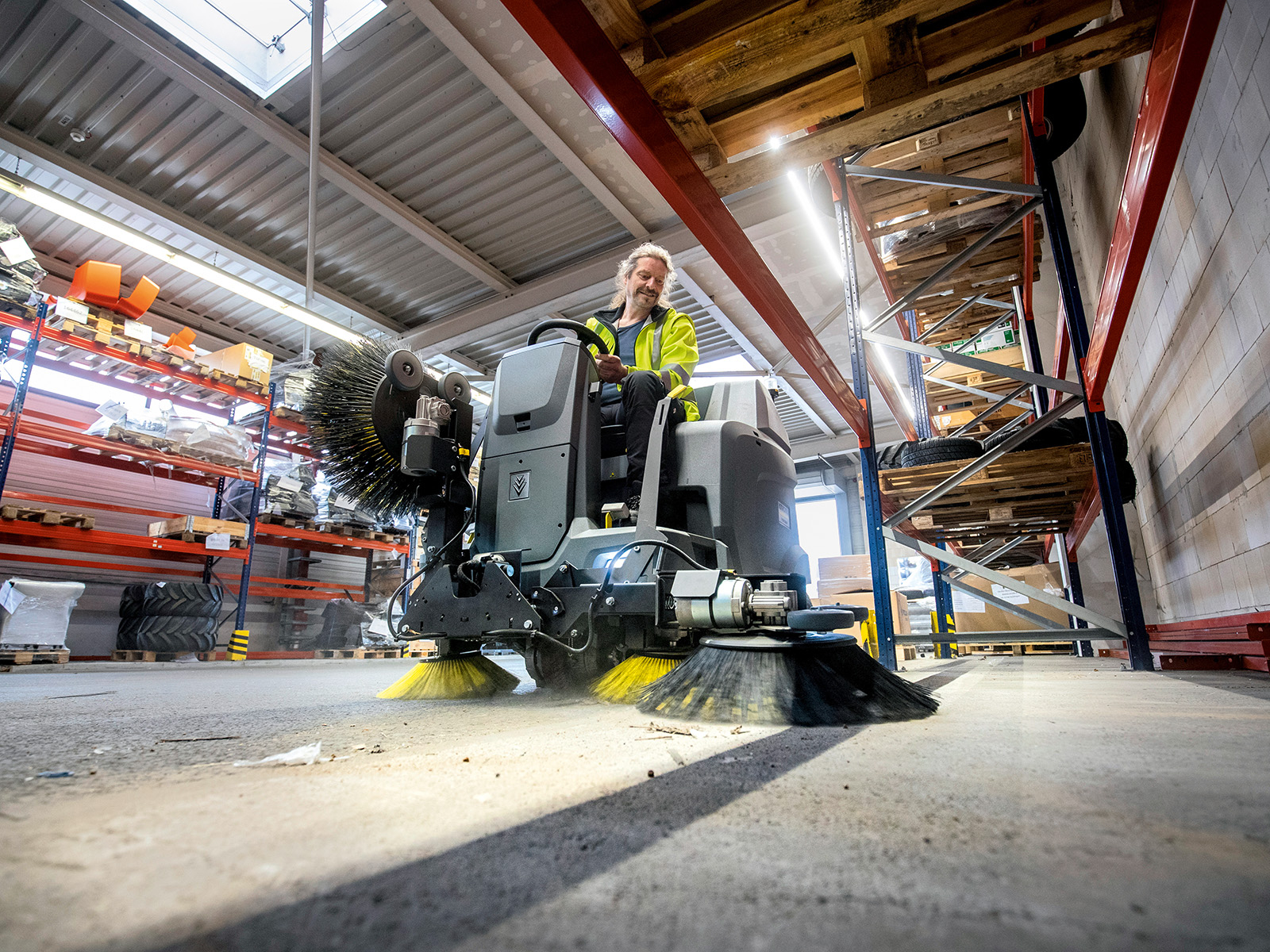

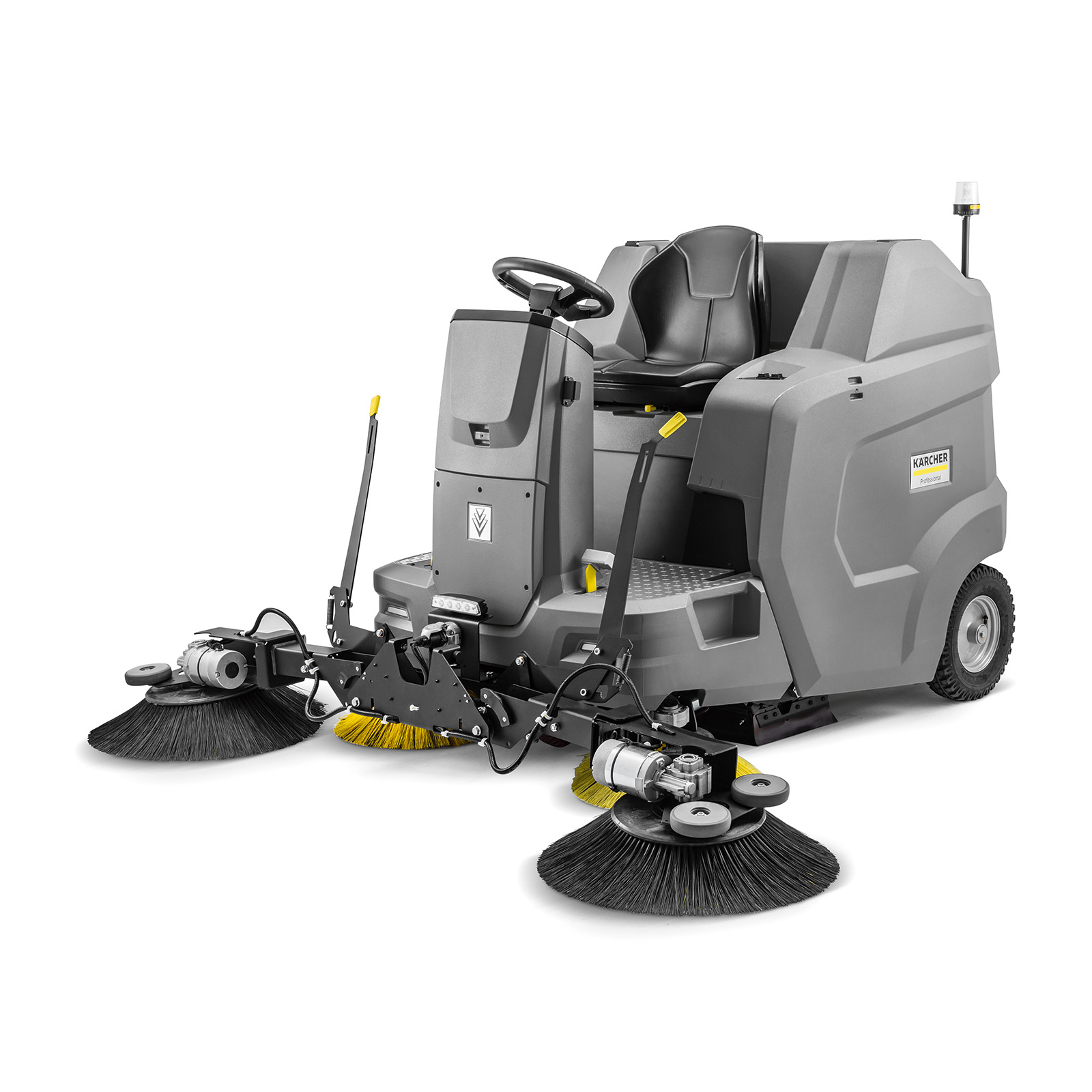

2.853-034.0 4 Side broom add-on kit
2.852-491.0 Ram protection add-on kit

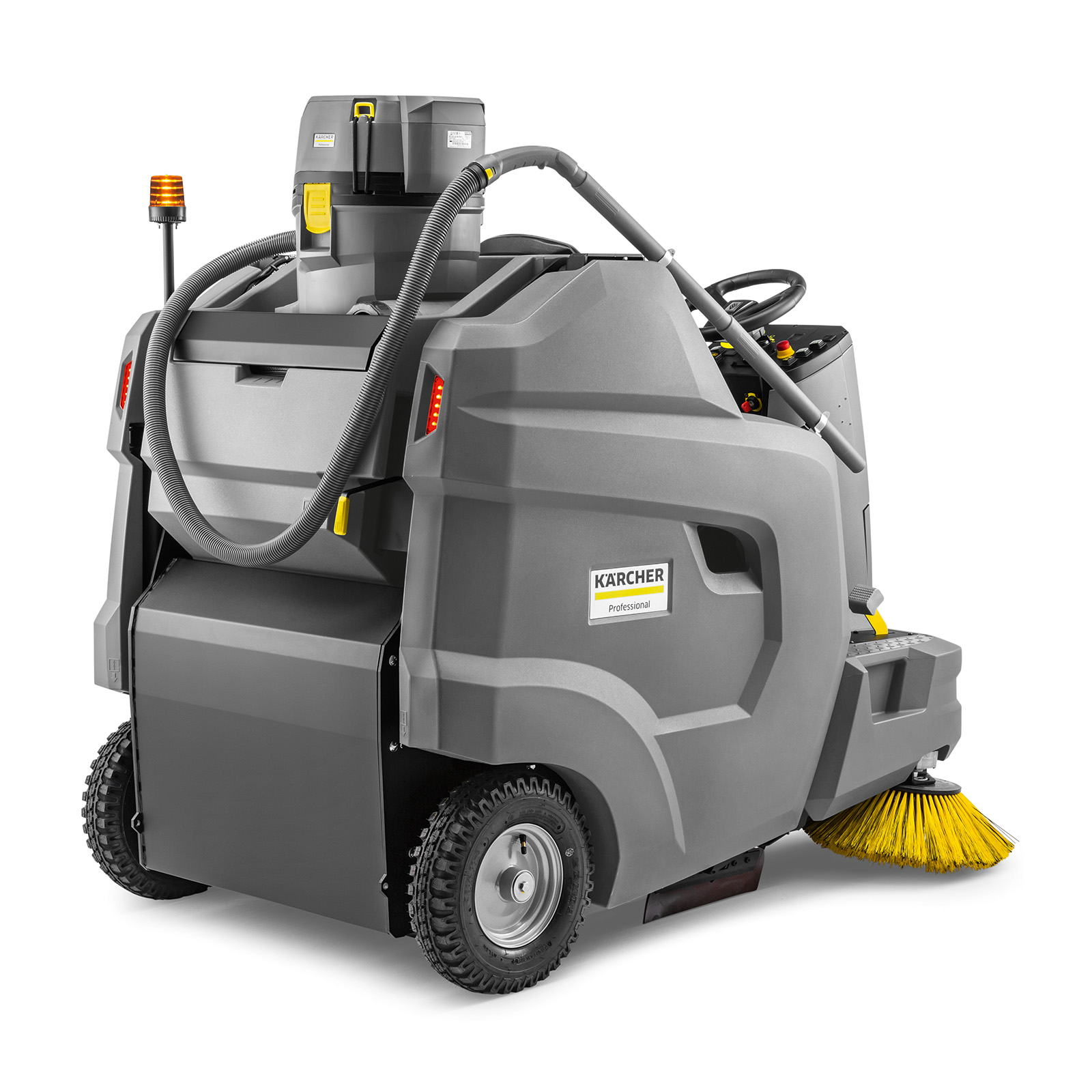

2.853-030.0 Vacuum add-on kit
2.853-048.0 Wheel set, non-chalking
2.852-835.0 Water spray add-on kit
2.852-828.0 Overhead guard
2.853-092.0 Blue spotlight add-on kit
2.853-042.0 Rear light add-on kit
2.853-094.0 Work lighting add-on kit
2.852-863.0 STVZO add-on kit
2.852-911.0 Warning beacon revolving signal add-on kit
6.905-190.0 Main broom, soft
6.905-191.0 Main broom, hard
6.906-133.0 Side broom, soft
6.906-065.0 Side broom, hard

■ Included  □ Optional
