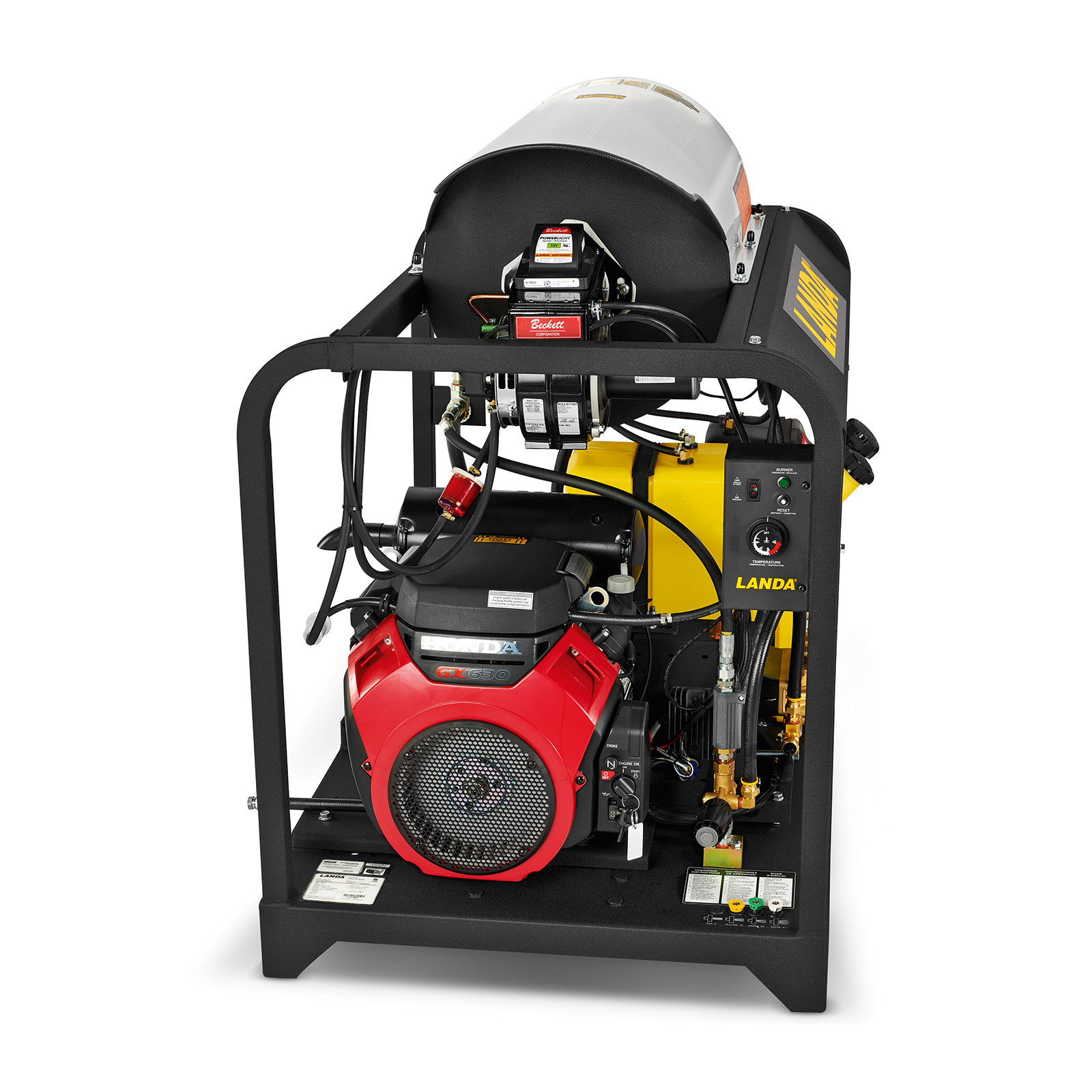

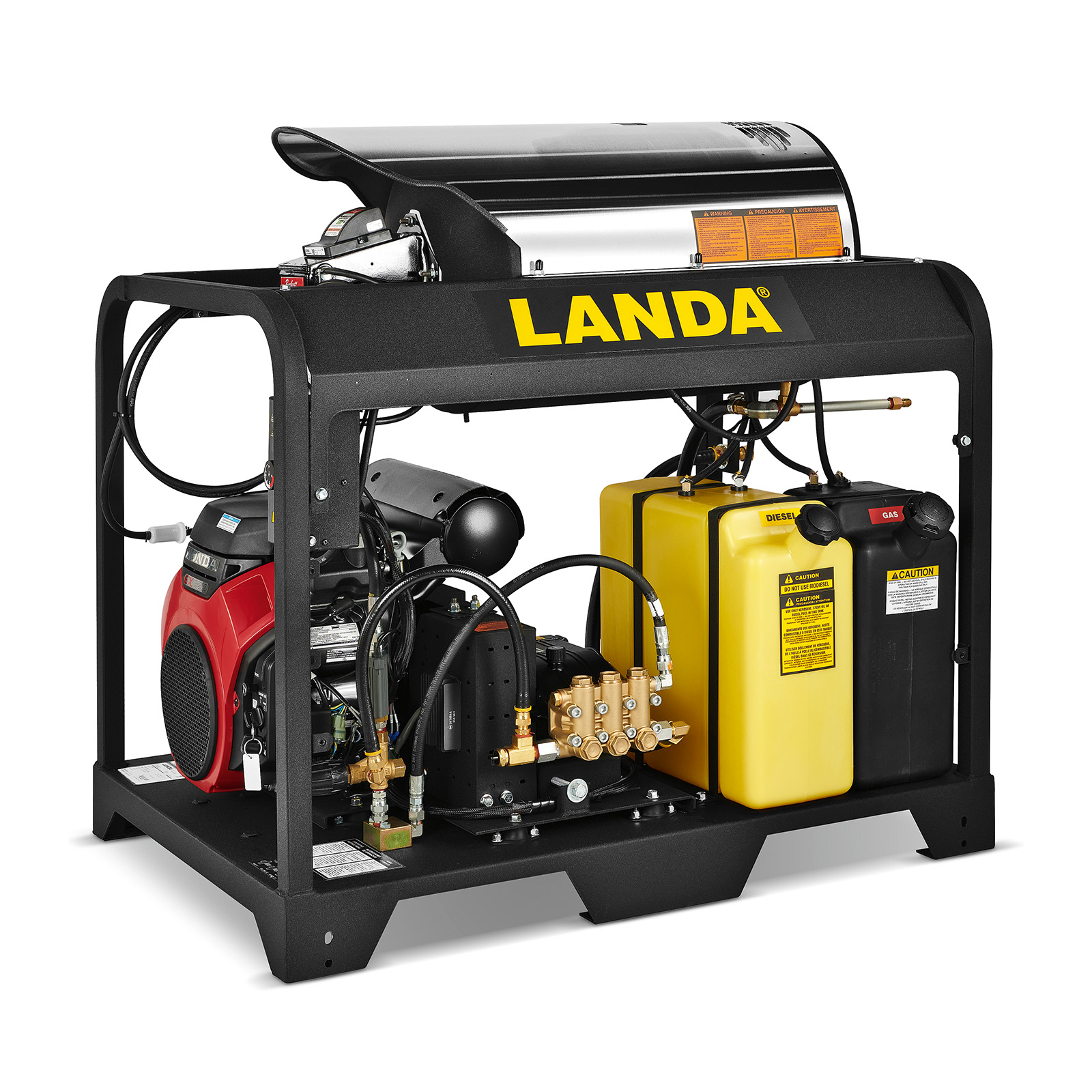

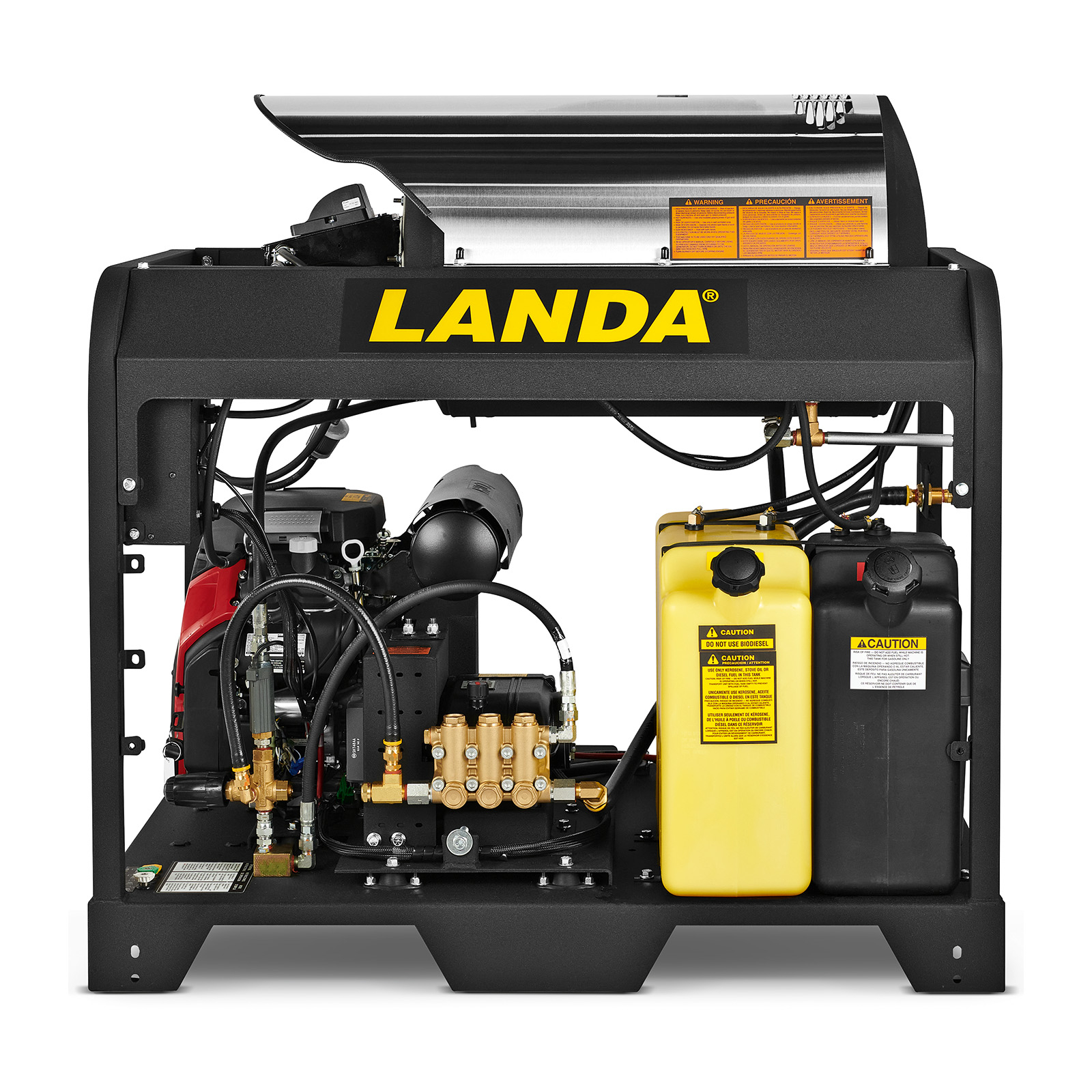

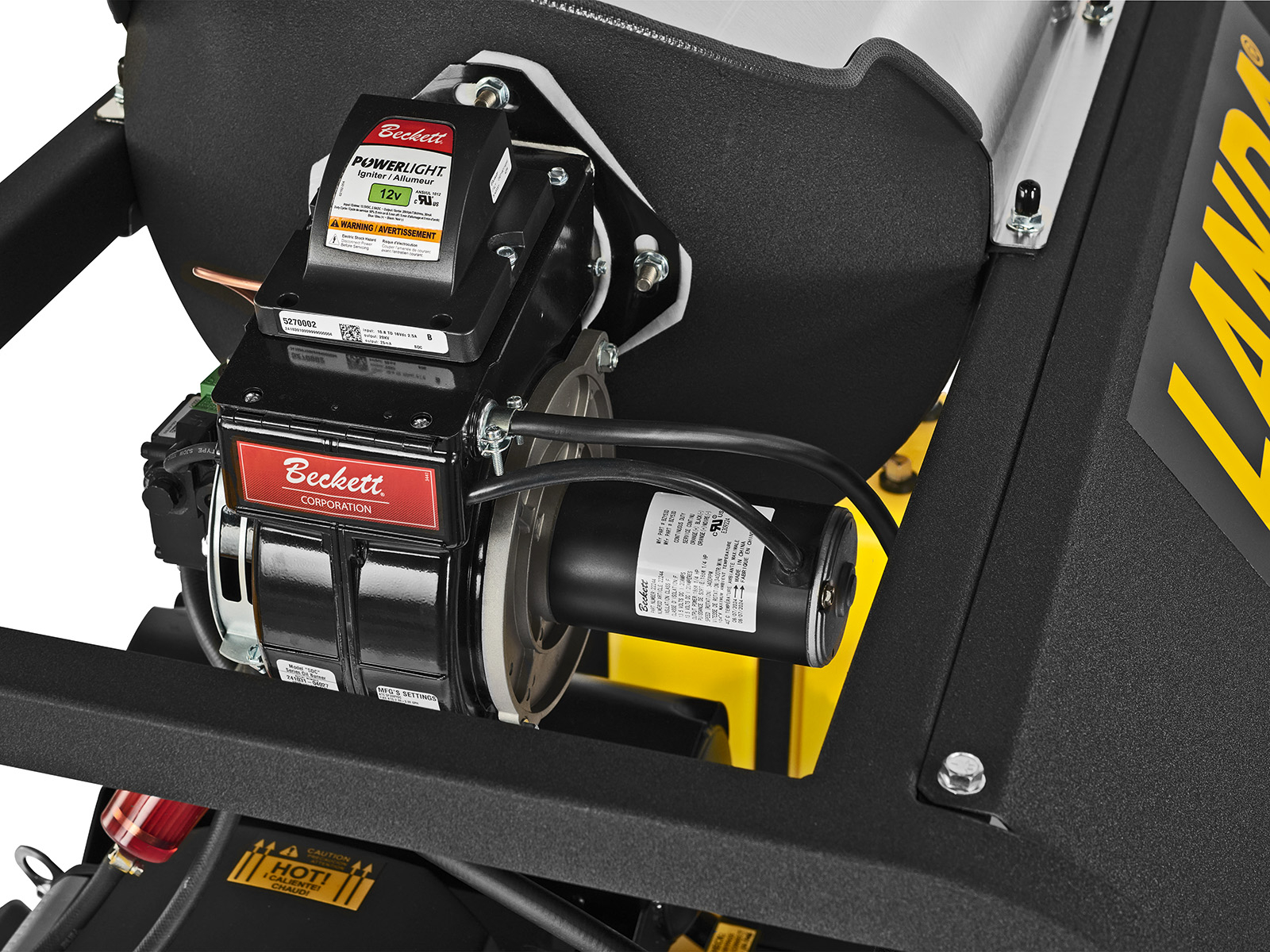

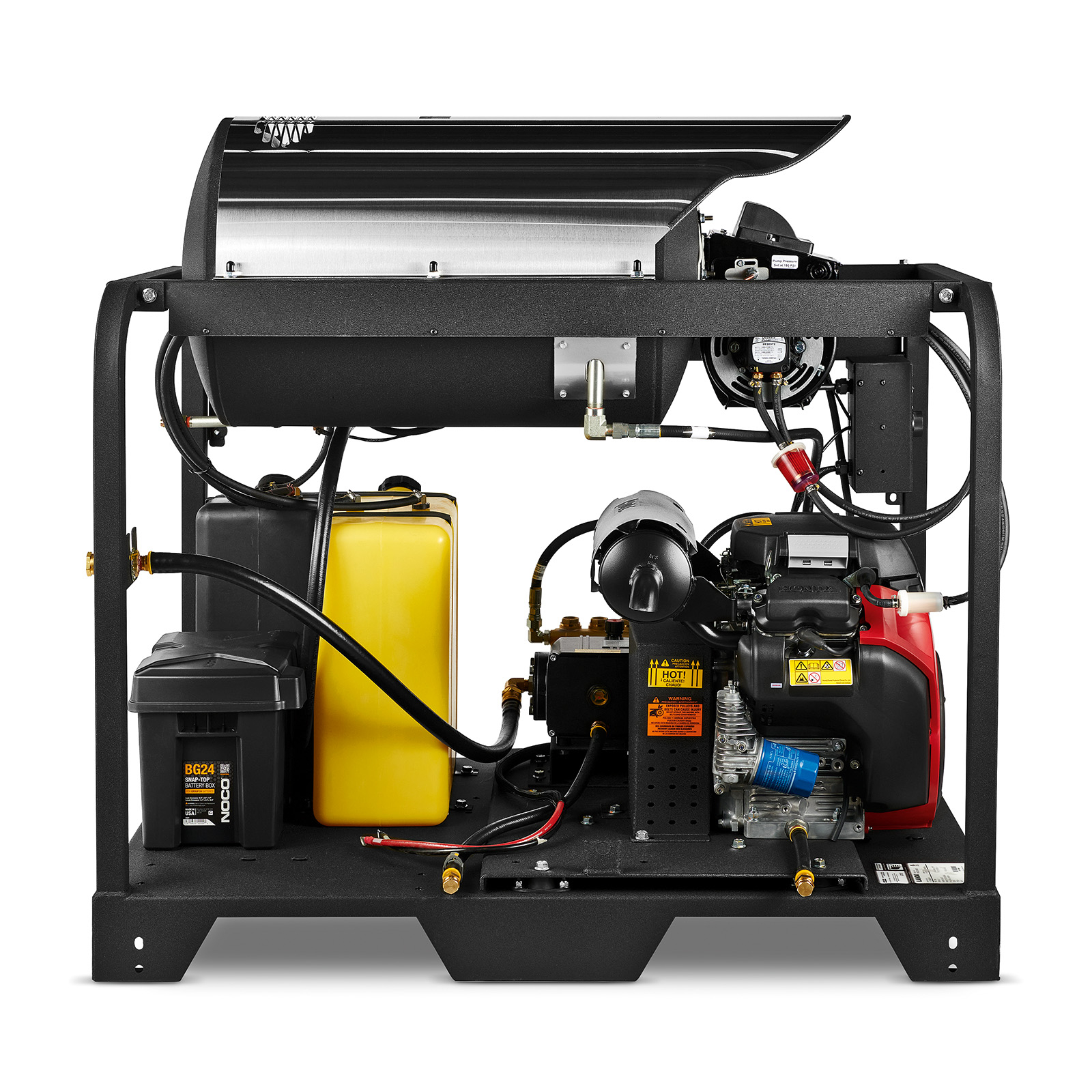

Using a 12-volt DC burner assembly offers a rugged skid frame with robust cleaning performance specifications at an economical price. This self-contained workhorse can tackle virtually any outdoor cleaning project once you provide the water. An optional wheel kit makes this already versatile machine even more portable, allowing for easy transport on-site. With a reliable Honda or Vanguard gasoline engine, this machine can provide hours of continuous worry-free cleaning power.

Models
Model |
Part No. |
GPM |
PSI |
Engine |
CCs |
Pump |
PGDC5-35324E |
1.110-096.0 |
4.7 |
3500 |
Karcher LC2V80F-D |
688 |
LT6036L.2 |
PGDC8-30324E |
1.110-098.0 |
8.0 |
300 |
Karcher LC2V80F-D |
688 |
LX9536L.2 |
PGDC4-35324E |
1.110-049.0 |
3.8 |
3500 |
Honda GX390 |
389 |
LT4540L.2 |
PGDC5-35224E |
1.110-050.0 |
4.7 |
3500 |
Vanguard 18 |
570 |
LT6036L.2 |
PGDC5-35324E |
1.110-051.0 |
4.7 |
3500 |
Honda GX630 |
688 |
LT6036L.2 |
PGDC8-30324E |
1.110-072.0 |
8.0 |
3000 |
Honda GX660 |
688 |
LX9536L.2 |
Dimensions (LxWxH): 48″ x 32″ x 44″
E = Electric start engine (battery not included)
Options
Part No. |
Description |
|
8.904-525.0 |
Wheel Kit (4 tires) |
■ |
8.915-496.0 |
360° Pivot Hose Reel Kit (100′ capacity, reel only) |
■ |
8.903-522.0 |
Non-Pivot Hose Reel Mounting Kit (100′ capacity, reel only) |
■ |
9.804-067.0 |
E-Zee Hose Reel (100′ capacity, reel only) |
■ |
8.749-946.0 |
Vinyl Skid Cover |
■ |
8.916-588.0 |
Stainless Steel Bottom Wrap |
◇ |
8.916-606.0 |
Float Tank with Inlet Detergent Metering Valve |
◇ |
■ Field Installed Option: Can be added to the machine at any time.
◇ Factory Installed Option: Must be ordered with the machine. Installed at the factory.
