Landa PDHW Series

Landa PDHW Series

4.7 GPM | 3500 PSI

  • 120V or 12V Burner Options
  • Industrial-duty Kubota diesel engine
  • Belt Drive Landa Pump
  • Stainless Steel Top Wrap
  • Variable Pressure Control Wand
  • Easy!Force Trigger
  • 7 Year Pump Warranty
  • 5 Year Coil Warranty
  • 1 Year Labor Warranty
  • ETL Safety Certified to UL-1776

Models shown may include optional features


This series fills the gap for those who are looking for the versatility of a compact pressure washer with the ruggedness and cleaning power of a full-size skid unit. It’s packed with features and options that make it highly adaptable for use in a variety of different applications. You’ll find a 2,900-watt generator that provides plenty of power for the burner, as well as a 120V outlet for low-wattage needs; forklift guides for easy transporting, mounting brackets to attach to a trailer, and an oversized, tilt-out fuel tank that’ll assure you have hours of uninterrupted cleaning. A sturdy steel frame is available in a polyester powder coat finish for added weather protection, or all-stainless steel for the ultimate insurance in high corrosion environments, making this unit the ideal choice for an offshore oil drilling operation. Highly versatile and built with the same attention to quality you’ve come to expect from Landa, the PDHW is a great all-around €œmid-size€ choice for all your cleaning needs!

Hot Water System Landa 7-Year Pump Warranty  ETL Listed  Kubota Factory Certified


Model Part No GPM PSI Engine CCs Burner Voltage Pump
PDHW5-35624E 1.110-060.0 4.7 3500 Kubota Z602 599 12V DC LT6036L.2
PDHW5-35624E/SS 1.110-061.0 4.7 3500 Kubota Z602 599 12V DC LT6036L.2
PDHW5-35624E/G 1.110-062.0 4.7 3500 Kubota Z602 599 120V AC LT6036L.2
PDHW5-35624E/G/SS 1.110-063.0 4.7 3500 Kubota Z602 599 120V AC LT6036L.2

Dimensions (LxWxH): 48″ x 32″ x 44″

E = Electric start engine (battery not included)
G = 2,400 watt generator

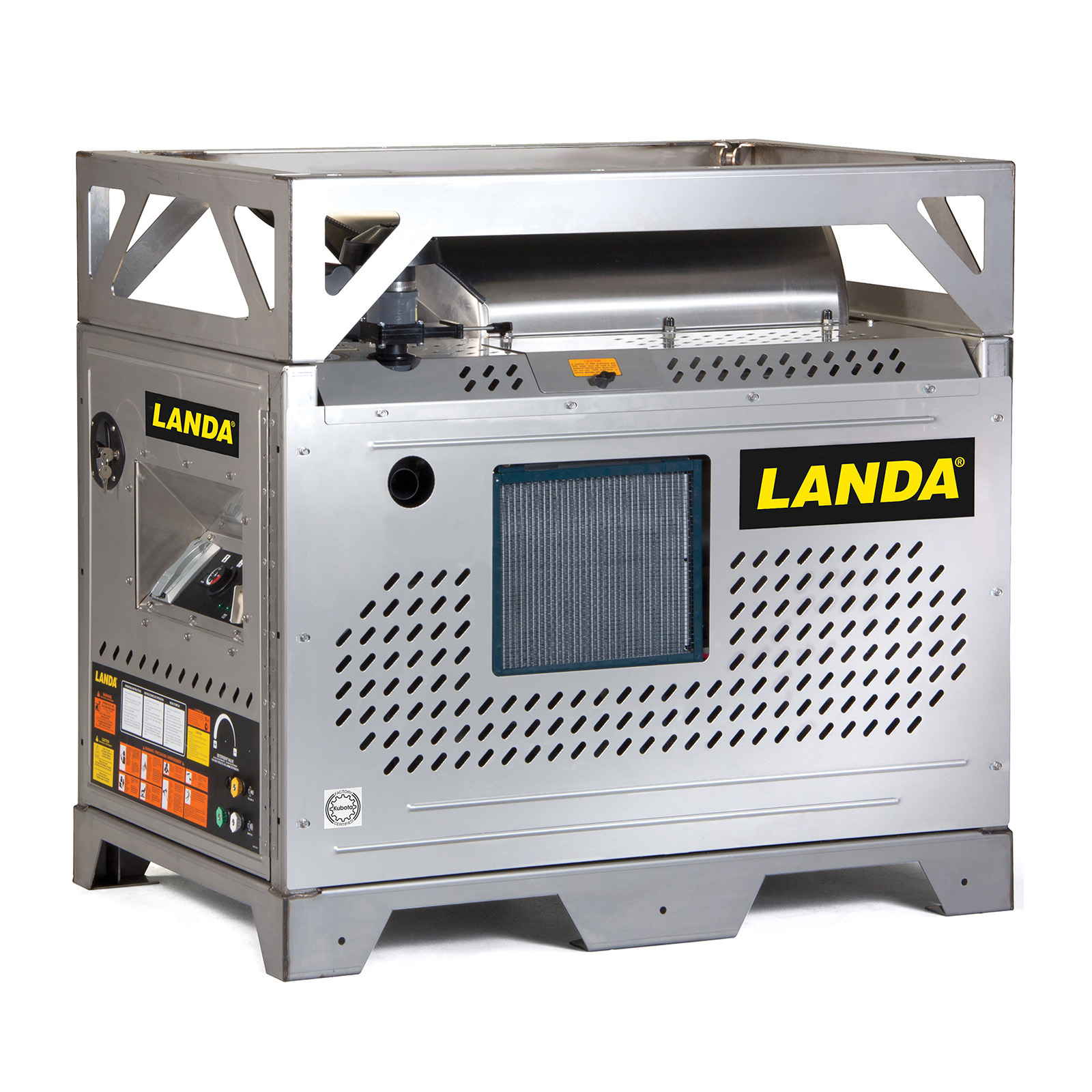

SS = Stainless steel frame


Part No. Description
8.904-525.0 Wheel Kit (4 tires)
8.919-981.0 Float Tank with Inlet Injection Kit
8.756-797.0 Downstream Detergent Injector Kit
8.919-984.0 Lifting Sling Kit
8.919-990.0 Lift/Stack Platform Kit
8.920-298.0 Lift/Stack Platform Kit, Stainless Steel
8.919-985.0 Stainless Steel Drip Pan Kit
8.919-988.0 Emergency Air Shutoff Kit
8.919-989.0 Engine Spark Arrestor Kit

■ Field Installed Option: Can be added to the machine at any time.

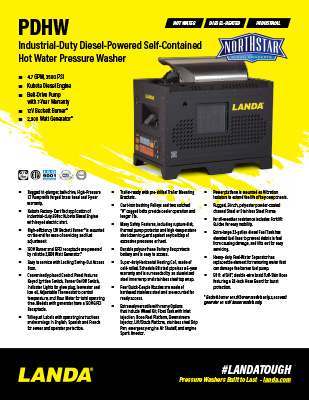

PDHW Series Product Sheet – Landa PDHW Series
