High cleaning performance.

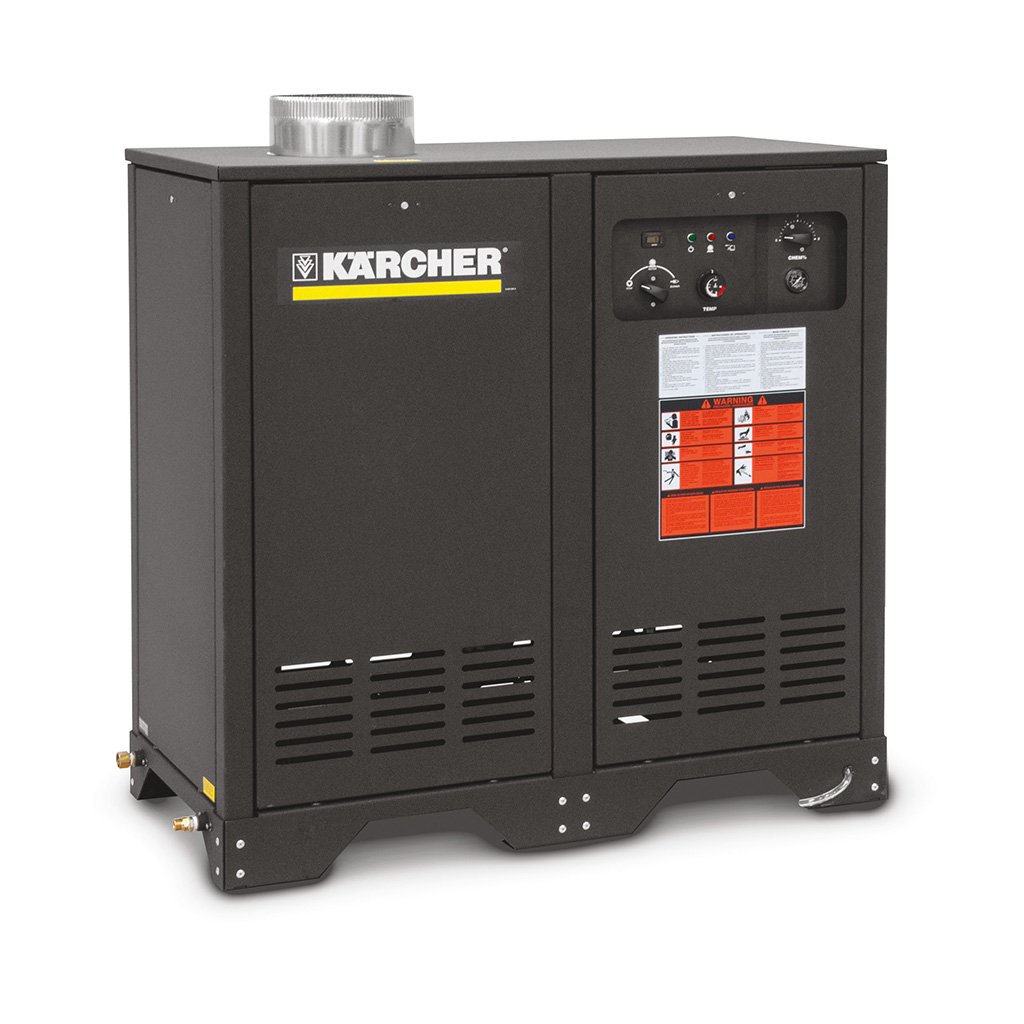

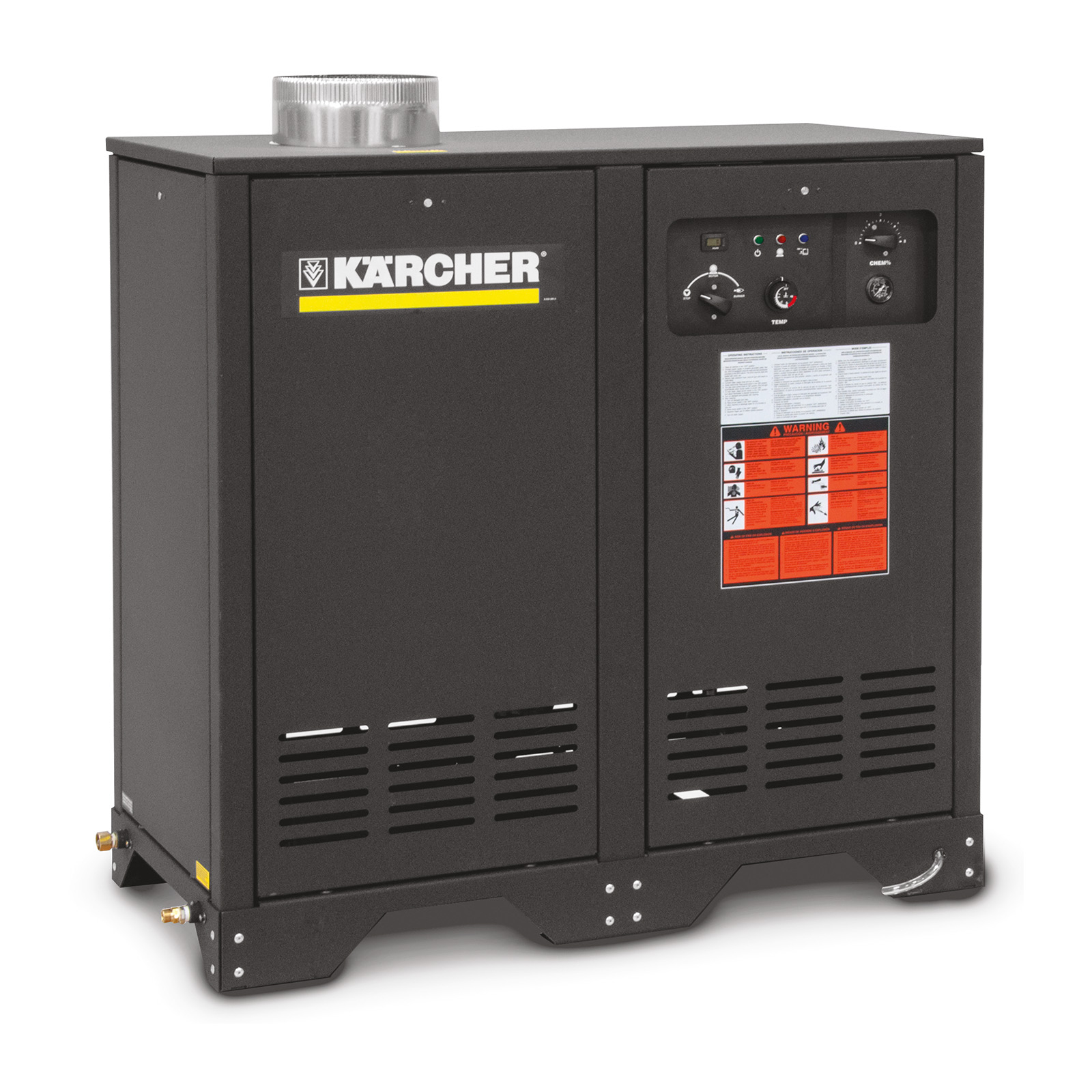

The Kärcher Sechura natural gas and LP-heated belt-drive Medium Cabinet pressure washer delivers up to 5.0 GPM and 3000 PSI of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, industrial motors and Kärcher pumps that backed by a 7-year warranty. All models are ETL certified to CSA safety standards.
Features:

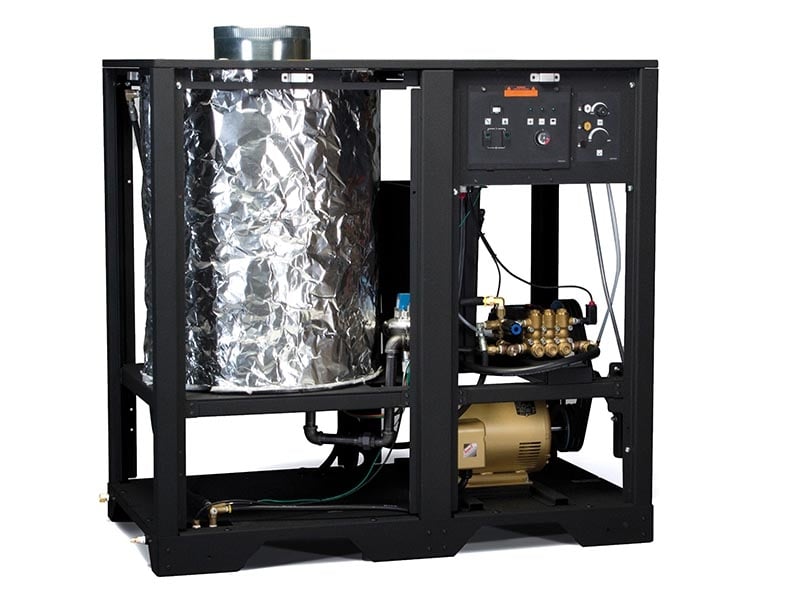

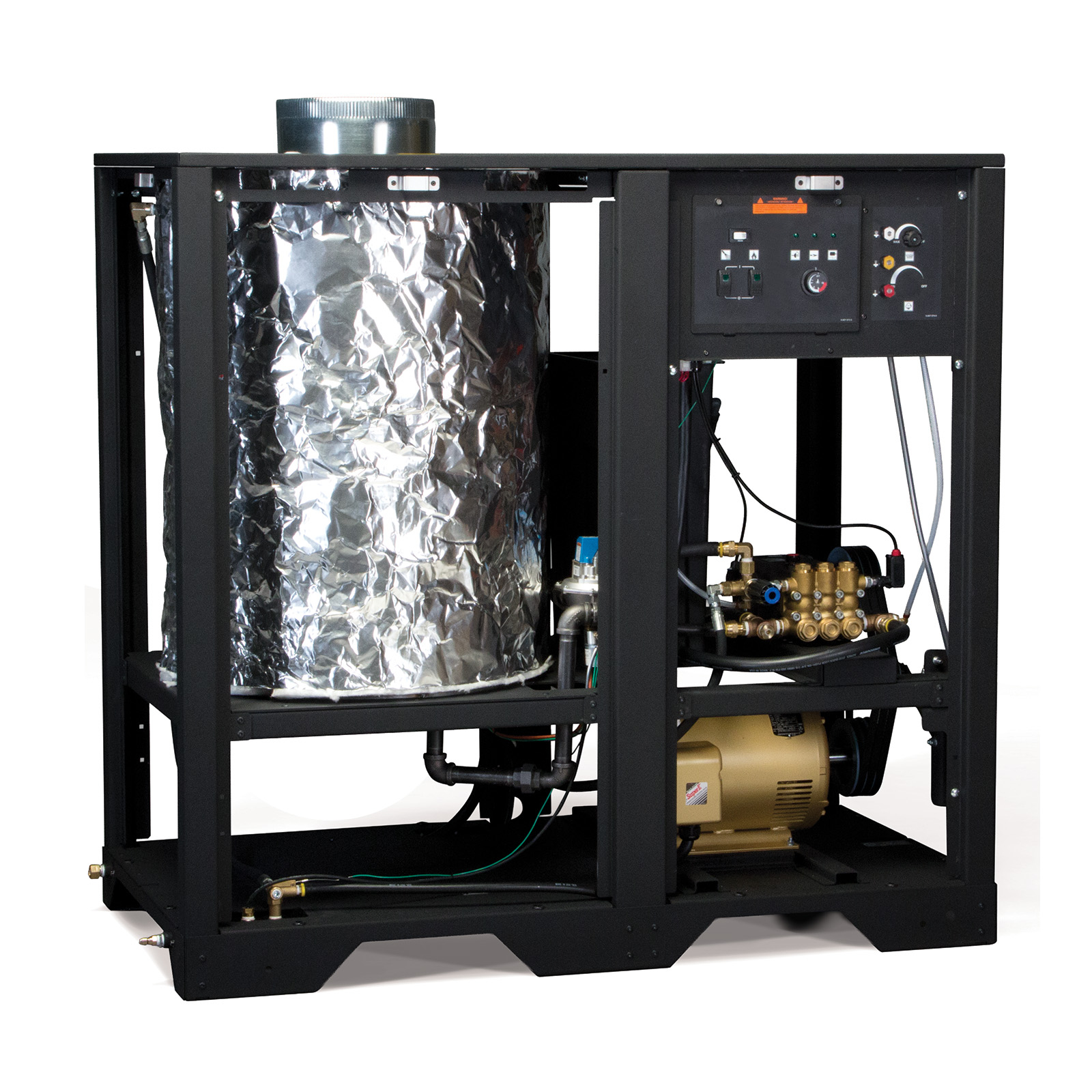

- The all-access cabinet design, with six lift out panels and easy lock fasteners, provides easy access to componets for maintenance in tight situations.
- Swing-out cast iron burner ring with separate “stay-in-place” ignition pilot light allows easy access and removal of the burner ring.

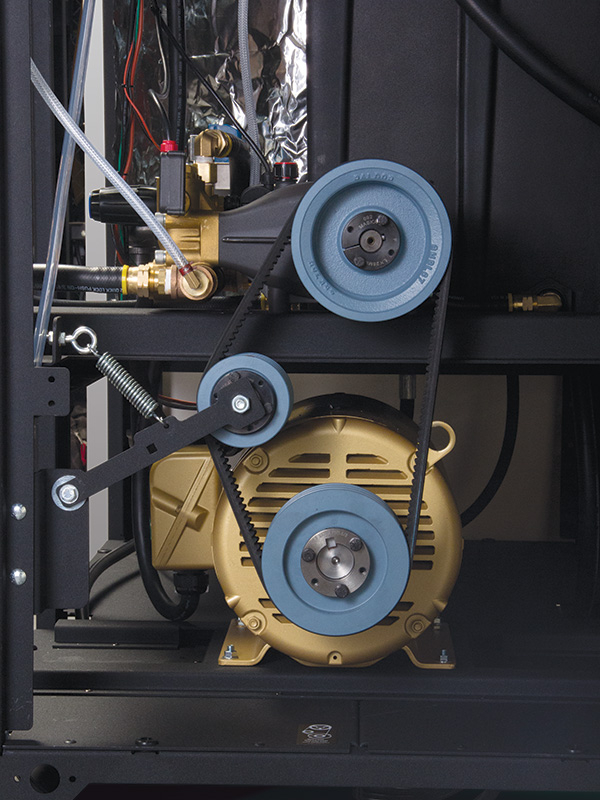

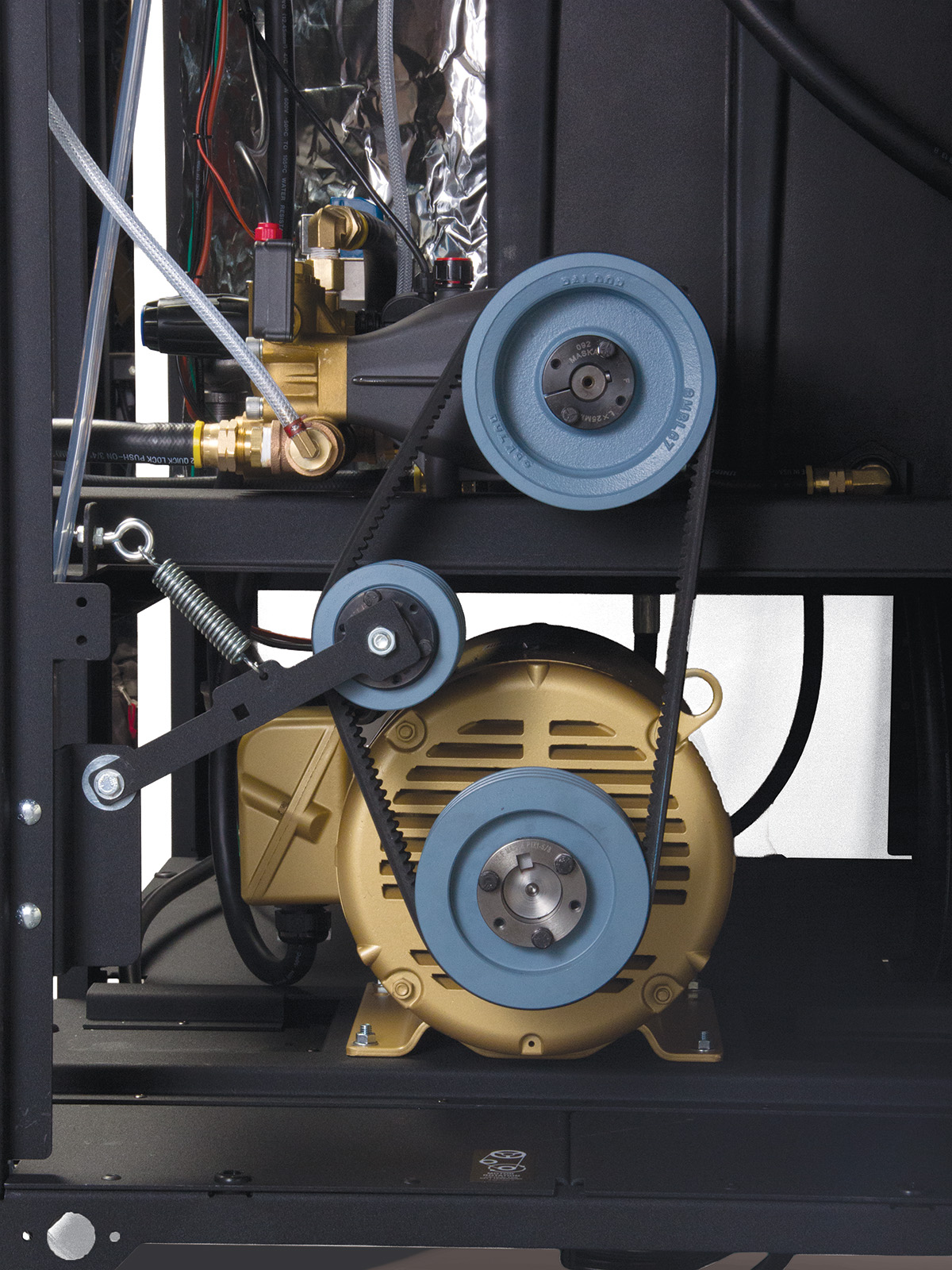

- Improved “Stay-Tite” belt tensioning system maintains belt tension on the pump with a torsion bar for precise tension adjustment.
- The heating coil is made of leak-free, cold rolled, schedule 80 steel pipe and is wrapped with a thick foil blanket insulationj that keeps cabinet wall cool to the touch.
- EASY!Force gun with cruis control like technology – uses its own recoil force to hold the trigger down – so no more sore hands after hours of use.
Models
| Model |
NG Part No. |
LP Part No. |
GPM |
PSI |
HP |
Volts/PH |
Amps |
Pump |
| HDS 3.5/20 Ea ST |
1.109-715.0 |
1.109-756.0 |
3.5 |
2000 |
5.0 |
230/1 |
25 |
KBP4025R |
| HDS 4.0/22 Ea ST |
1.109-716.0 |
1.109-757.0 |
4.0 |
2200 |
6.2 |
230/1 |
29 |
KM4035R |
| HDS 4.0/22 Eb ST |
1.109-717.0 |
1.109-758.0 |
4.0 |
2200 |
6.2 |
230/3 |
16 |
KM4035R |
| HDS 4.0/22 Ec ST |
1.109-718.0 |
1.109-759.0 |
4.0 |
2200 |
6.2 |
460/3 |
7 |
KM4035R |
| HDS 4.0/22 Ef ST |
1.109-719.0 |
1.109-760.0 |
4.0 |
2200 |
6.2 |
575/3 |
6.5 |
KM4035R |
| HDS 4.0/22 Eg ST |
1.109-720.0 |
1.109-761.0 |
4.0 |
2200 |
6.2 |
208/1 |
30 |
KM4035R |
| HDS 4.0/22 Eh ST |
1.109-721.0 |
1.109-762.0 |
4.0 |
2200 |
6.2 |
208/3 |
18 |
KM4035R |
| HDS 3.9/30 Ea ST |
1.109-723.0 |
1.109-764.0 |
3.9 |
3000 |
8.2 |
230/1 |
36 |
KM4035R |
| HDS 3.9/30 Eb ST |
1.109-724.0 |
1.109-765.0 |
3.9 |
3000 |
8.2 |
230/3 |
25 |
KM4035R |
| HDS 3.9/30 Ec ST |
1.109-725.0 |
1.109-766.0 |
3.9 |
3000 |
8.2 |
460/3 |
11 |
KM4035R |
| HDS 3.9/30 Ef ST |
1.109-726.0 |
1.109-767.0 |
3.9 |
3000 |
8.2 |
575/3 |
14 |
KM4035R |
| HDS 3.9/30 Eg ST |
1.109-727.0 |
1.109-768.0 |
3.9 |
3000 |
8.2 |
208/1 |
38 |
KM4035R |
| HDS 3.9/30 Eh ST |
1.109-728.0 |
1.109-769.0 |
3.9 |
3000 |
8.2 |
208/3 |
27 |
KM4035R |
| HDS 5.0/23 Ea ST |
1.109-730.0 |
1.109-771.0 |
5.0 |
2300 |
8.2 |
230/1 |
36 |
KT6036R |
| HDS 5.0/23 Eb ST |
1.109-731.0 |
1.109-772.0 |
5.0 |
2300 |
8.2 |
230/3 |
25 |
KT6036R |
| HDS 5.0/23 Ec ST |
1.109-732.0 |
1.109-773.0 |
5.0 |
2300 |
8.2 |
460/3 |
11 |
KT6036R |
| HDS 5.0/23 Ef ST |
1.109-733.0 |
1.109-774.0 |
5.0 |
2300 |
8.2 |
575/3 |
14 |
KT6036R |
| HDS 5.0/23 Eg ST |
1.109-734.0 |
1.109-775.0 |
5.0 |
2300 |
8.2 |
208/1 |
38 |
KT6036R |
| HDS 5.0/23 Eh ST |
1.109-735.0 |
1.109-776.0 |
5.0 |
2300 |
8.2 |
208/3 |
27 |
KT6036R |
| HDS 4.8/30 Ea ST |
1.109-736.0 |
1.109-777.0 |
4.8 |
3000 |
10.0 |
230/1 |
42 |
KT6036R |
| HDS 4.8/30 Eb ST |
1.109-737.0 |
1.109-778.0 |
4.8 |
3000 |
10.0 |
230/3 |
26 |
KT6036R |
| HDS 4.8/30 Ec ST |
1.109-738.0 |
1.109-779.0 |
4.8 |
3000 |
10.0 |
460/3 |
15 |
KT6036R |
| HDS 4.8/30 Ef ST |
1.109-739.0 |
1.109-780.0 |
4.8 |
3000 |
10.0 |
575/3 |
14 |
KT6036R |
| HDS 4.8/30 Eg ST |
1.109-740.0 |
1.109-781.0 |
4.8 |
3000 |
10.0 |
208/1 |
49 |
KT6036R |
| HDS 4.8/30 Eh ST |
1.109-741.0 |
1.109-782.0 |
4.8 |
3000 |
10.0 |
208/3 |
32 |
KT6036R |
Dimensions (LxWxH): 49″ x 24: x 48″
Options
| Part No. |
Description |
|
| 4.118-005.0 |
EASY!Force Trigger Gun* |
■ |
| 8.917-509.0 |
Wireless Remote Kit (pump/burner/detergent) |
□ |
| 8.921-832.0 |
Wireless Hand-Held Transmitter |
□ |
| 8.917-817.0 |
Wall Bracket Kit for Wireless Transmitter |
□ |
| 8.921-774.0 |
NG Kit, Wired Remote Station (pump/burner) |
□ |
| 8.921-773.0 |
NG Kit, Wired Remote (detergent) |
□ |
| 8.922-157.0 |
Wired Remote Control Box (pump/burner – add 8.921-773.0 for detergent switch) |
□ |
| 8.917-507.0 |
Snap-N -Go Auto Start/Stop Kit with Lock Out (no remote) |
□ |
| 9.807-464.0 |
Snap-N-Go Auto Start Stop Kit w/out Lock Out (wired remote, requires 8.921-774.0) |
□ |
| 8.917-508.0 |
Snap-N-Go Time Delay Kit |
□ |
| 8.921-776.0 |
Combination Steam Kit |
□ |
| 9.801-040.0 |
10″ Draft Diverter (up to 5 GPM) |
□ |
| 8.753-474.0 |
10″ Draft Damper |
□ |
| 8.753-707.0 |
10″ to 8″ Stack Reducer |
□ |
| 8.923-213.0 |
Outlet Relocater |
□ |
■ Included
□ Optional
*Compatible with EASY!Lock System
