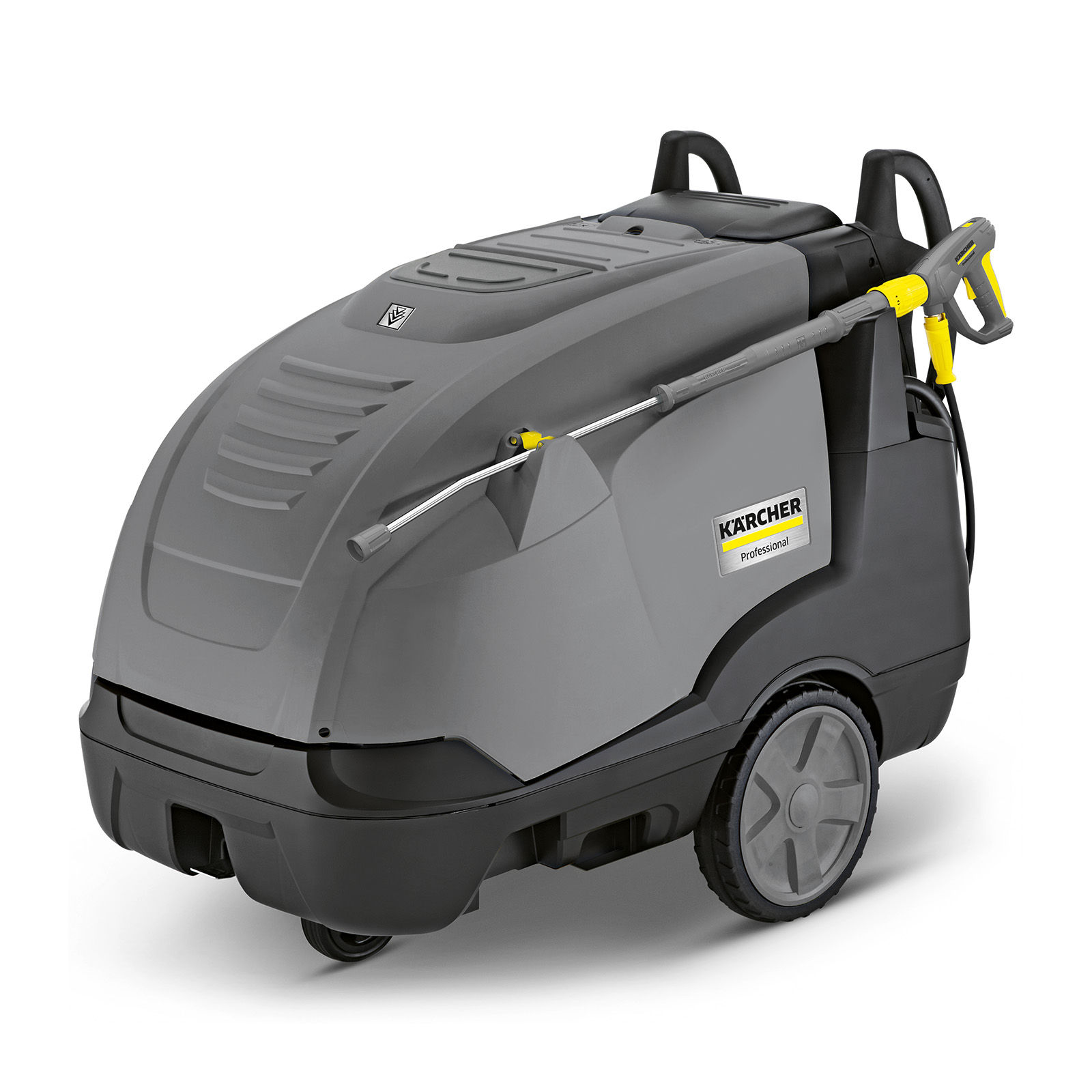

Karcher HDS Special Class

Karcher HDS Special Class

3.3 GPM | 2520 PSI

  • Electric Heated
  • Axial Drive Karcher Pump
  • Easy!Force Trigger Gun
  • 7 Year Pump Warranty
  • 5 Year Coil Warranty
  • 1 Year Labor Warranty
  • ETL Safety Certified to UL-1776


The zero emission specialist.

The emission-free HDS-E with electric heater is ideal where exhaust gases are undesirable or prohibited. Thanks to the unique type of heater insulation and Karcher eco!efficiency mode, the HDS-E is efficient and eco-friendly. Models are ETL certified to UL & CSA safety standards.


  • eco!efficiency mode – economical and environmentally friendly, even during longer periods of use
  • Intuitive operation with large single button selector dial

ETL Listed Karcher 7-Year Pump Warranty  Easy!Force Anti!Twist  Full Ceramic Valve Easy!Lock Chem Switch System Auto Shutdown  Flat Free Tires  3 to 4 Hour Runtime eco!Efficiency


Model Part No GPM PSI Electrical Amps Pump Drive
HDS -E 3.3/25-4M Ec 1.030-902.0 1.6-3.3 465-2520 460V / 3ph 31 Karcher Axial Direct
HDS-E 3.3/25-4M Ef 1.030-903.0 1.6-3.3 465-2520 575V / 3ph 28 Karcher Axial Direct


Part No Description
4.118-005.0 EASY!Force Trigger Gun
4.112-000.0 41″ Spray Lance
6.110-030.0 50′ EASY!Lock Longlife Hose w/ ANTI!Twist Connection
2.113-009.0 Power Nozzle, TR 25047

■ Included – Compatible with EASY!Lock System


Part No Description
2.111-013.0 FR 30 ME Surface Cleaner
4.111-037.0 Coupler
4.118-007.0 Servo Control
4.111-036.0 Adapter for EASY!Lock Lance Connecting to M18 Dirtblaster Nozzle
4.111-041.0 Adapter for EASY!Lock Gun Connecting to 3/8″ Hose
8.750-685.0 100′ Pivot Reel *
8.921-775.0 Hose Reel Bracket (w/ EASY!Lock adapter, street elbow and 6′ jumper hose) *

◇ Optional – Compatible with EASY!Lock System
□ Optional – NOT compatible with EASY!Lock System


HDS Special Class Product Sheet Product Sheet – Karcher HDS Special Class
