Cuda SJ Series

SKU SJ-Series Category

Cuda SJ Series

SKU SJ-Series Category
  • 32 x 21-Inch Cleaning Basket
  • 18-Inch Working Height
  • Vertical Seal-Less Pump
  • 350 Lbs Capacity
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

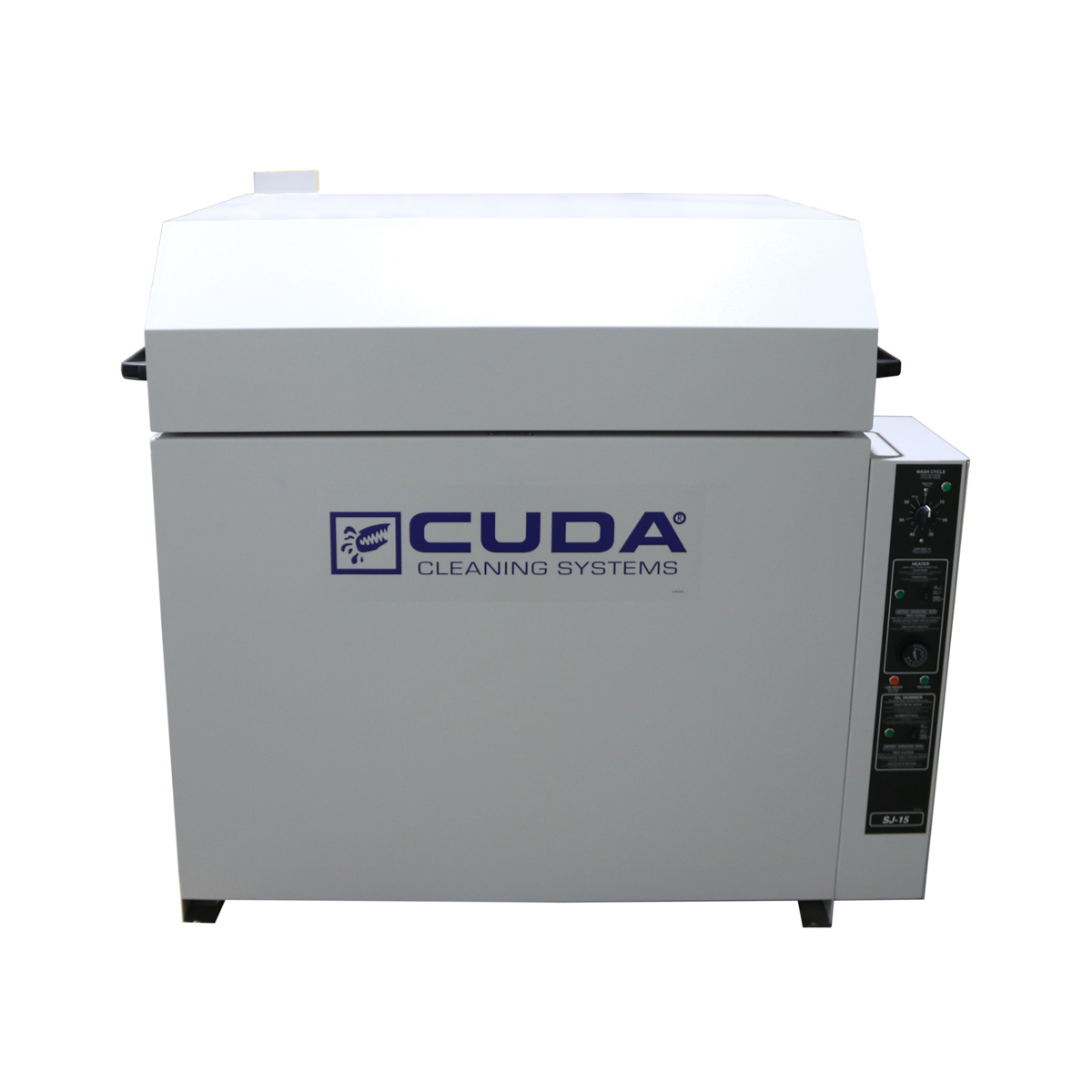

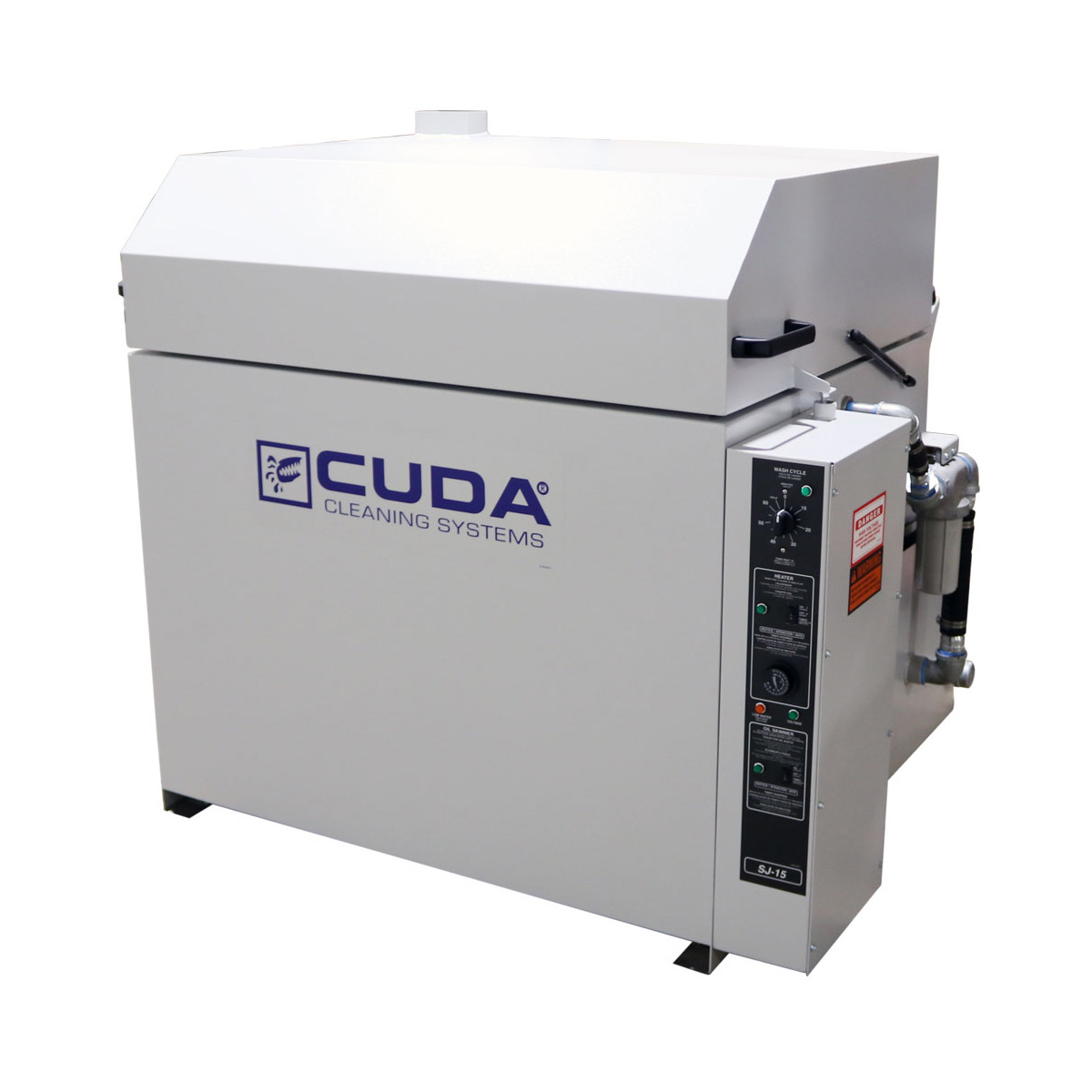

Models shown may include optional features

Cuda

The newest addition to the Cuda top load line-up, the SJ-15 uses a patented spray wash technology which eliminates the need for a drive motor, gears and pulleys. Using a water-propelled spray arm with 23 nozzles that spin around a stationary parts basket, parts are hit from every angle while being cleaned. It has a 350-lb. load capacity, and a basket dimension of 32″ x 21″, 90 gallon sump capacity, and 3 HP pump motor delivering 37 GPM @ 30 PSI.

Models

Model Part No Working Height Basket Dimensions Volt/PH Total Amps
SJ-15 1.043-646.0 18″ 32″ x 21″ 208/1 42
SJ-15 1.043-647.0 18″ 32″ x 21″ 208/3 25
SJ-15 1.043-648.0 18″ 32″ x 21″ 230/1 38
SJ-15 1.043-649.0 18″ 32″ x 21″ 230/3 23
SJ-15 1.043-650.0 18″ 32″ x 21″ 460/3 11
SJ-15 1.043-651.0 18″ 32″ x 21″ 575/3 9

Options

Part No Description
8.725-271.0 Preferred Options Package – Contains Small Parts Basket and Oil Container ■
8.725-261.0 Automatic Water Fill □
8.725-276.0 Pneumatic Power Brush □
8.725-278.0 Detail Brush with Pump □
8.924-172.0 Oil Drain Container □
8.725-283.0 Skimmer Timer, 24 hour 7 day □
9.802-283.0 Hour Meter □
8.704-104.0 Chip Trapper System, 55 Gal □
9.804-631.0 Pressure Gauge □
8.712-156.0 Temperature Gauge □
8.731-254.0 Small Parts Basket – Light Duty (8″ x 8″ x 4″) □
8.753-825.0 Medium Parts Basket – Light Duty (16″ x 12″ x 6″) □
8.723-214.0 Gray Spray Paint (cannot ship via air) □

■ Included □ Optional

Literature

SJ Series Product Sheet Product Sheet – Cuda SJ Series
