Cuda 2518 Series

SKU: 2518-Series Category:
  • 25-Inch Dia Table
  • 18-Inch Working Height
  • Vertical Seal-Less Pump
  • 500 Lbs Capacity
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Loading...

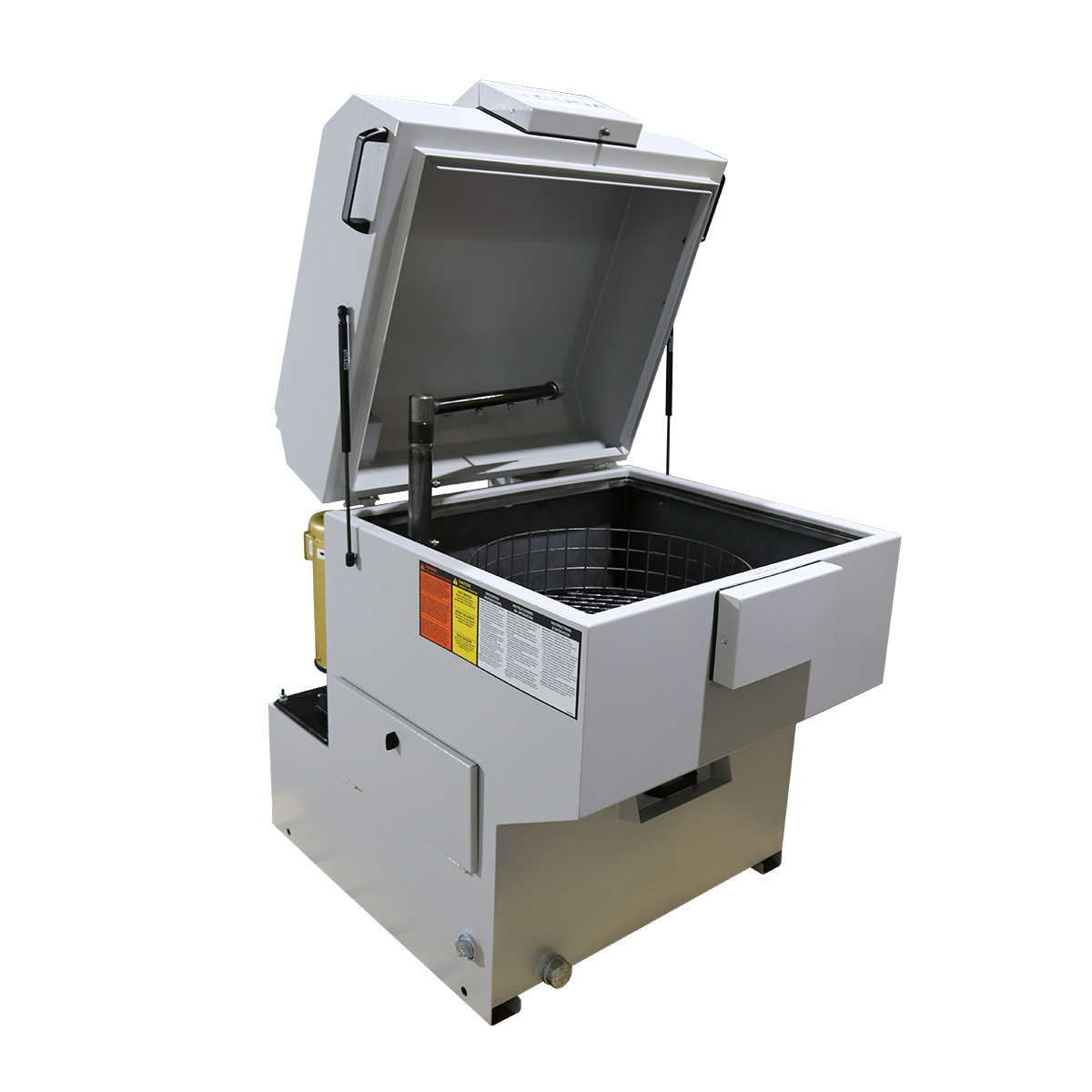

The 2518 Series is at the top of our line with ruggedness and automation throughout. It comes standard with a time-tested chain drive assembly, virtually maintenance-free vertical seal-less pump, and disc oil skimmer that can be automated for convenience in disposing of oil. Extra-easy access to the sump and removable debris screen set it apart from other top-loaders on the market.

Models

ModelPart NoWorking HeightTurntable DiamterVolt/PHTotal Amps
25181.043-565.018″25″230/138
25181.043-564.018″25″208/142
25181.043-567.018″25″230/323
25181.043-566.018″25″208/325
25181.043-568.018″25″460/311
25181.043-569.018″25″575/39
25181.043-571.018″25″230/138
25181.043-570.018″25″208/142
25181.043-573.018″25″230/323
25181.043-572.018″25″208/325
25181.043-574.018″25″460/311
25181.043-575.018″25″575/39

Options

Part NoDescription
8.725-260.0Preferred Options Package - Contains Parts Basket, Containment Ring, Oil Container
8.725-261.0Automatic Water Fill
8.731-256.025″ Containment Ring
8.725-246.0Deluxe Kit: Detail and Power Brush
8.725-252.0Detail Brush with Pump
8.642-699.0Pneumatic Power Brush
8.924-172.0Oil Drain Container
8.725-253.0Filtration
8.725-254.0Filtration & Sump Sweep
8.642-890.025″ Containment Ring, Stainless Steel

Literature

Product Sheet - Cuda 2518 Series
