Cuda 7248 Series

SKU 7248-Series Category
  • 72-Inch Dia Table
  • 48-Inch Working Height
  • Vertical Seal-Less Pump
  • 5000 Lbs Capacity
  • Rear Forklift Extension Pockets
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • 2x 9 kW Heaters
  • ETL Safety Certified

Models shown may include optional features

Cuda logo

Call to Order

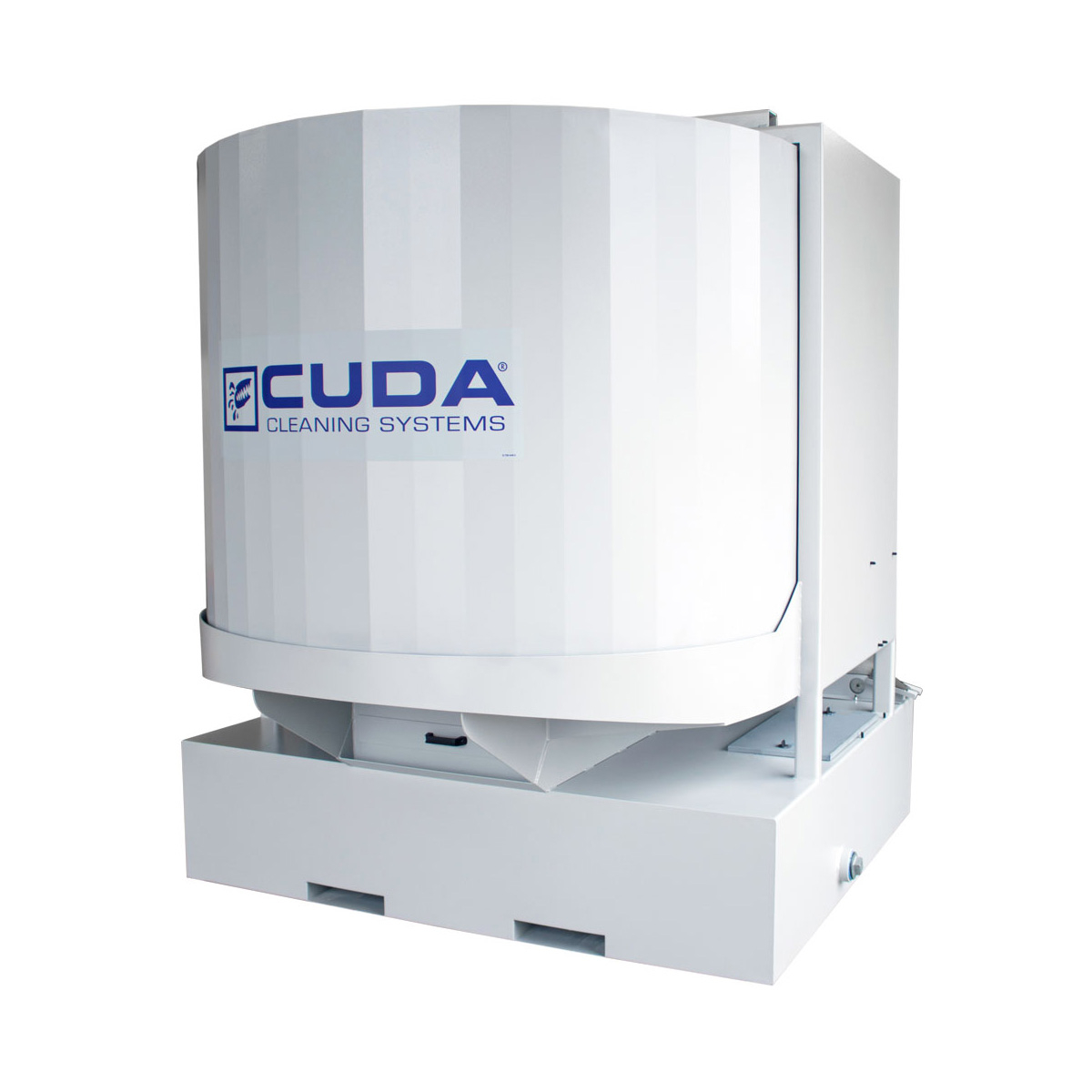

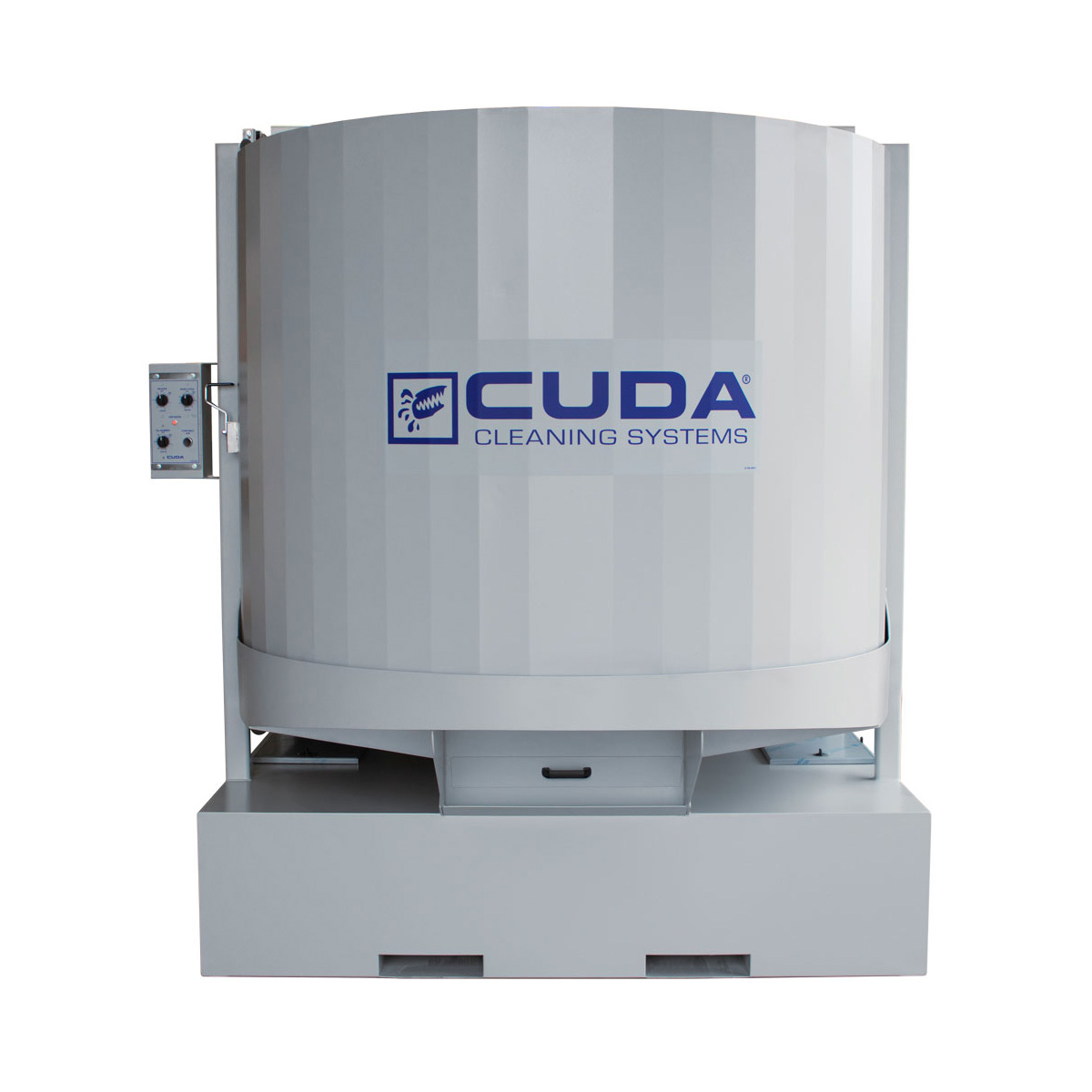

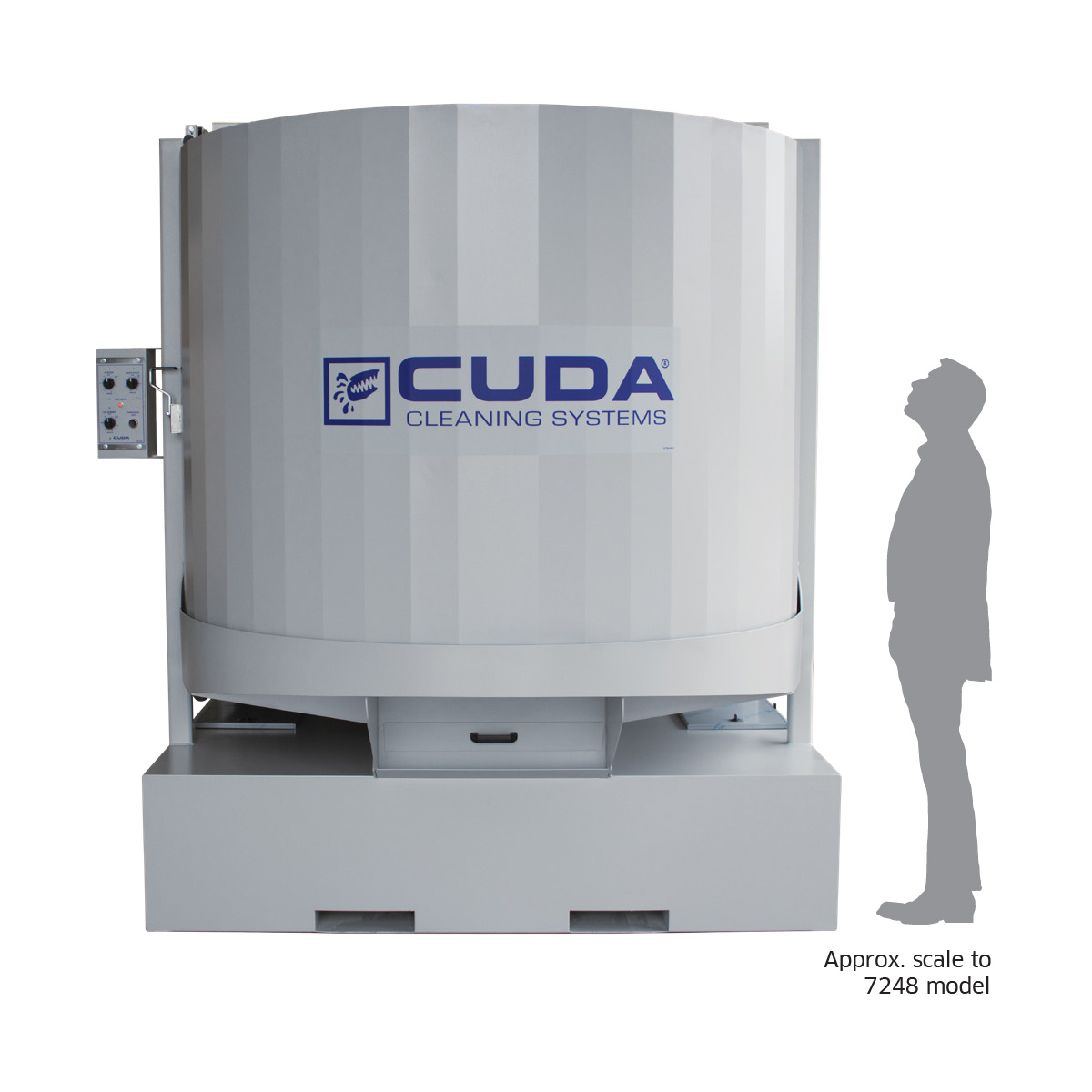

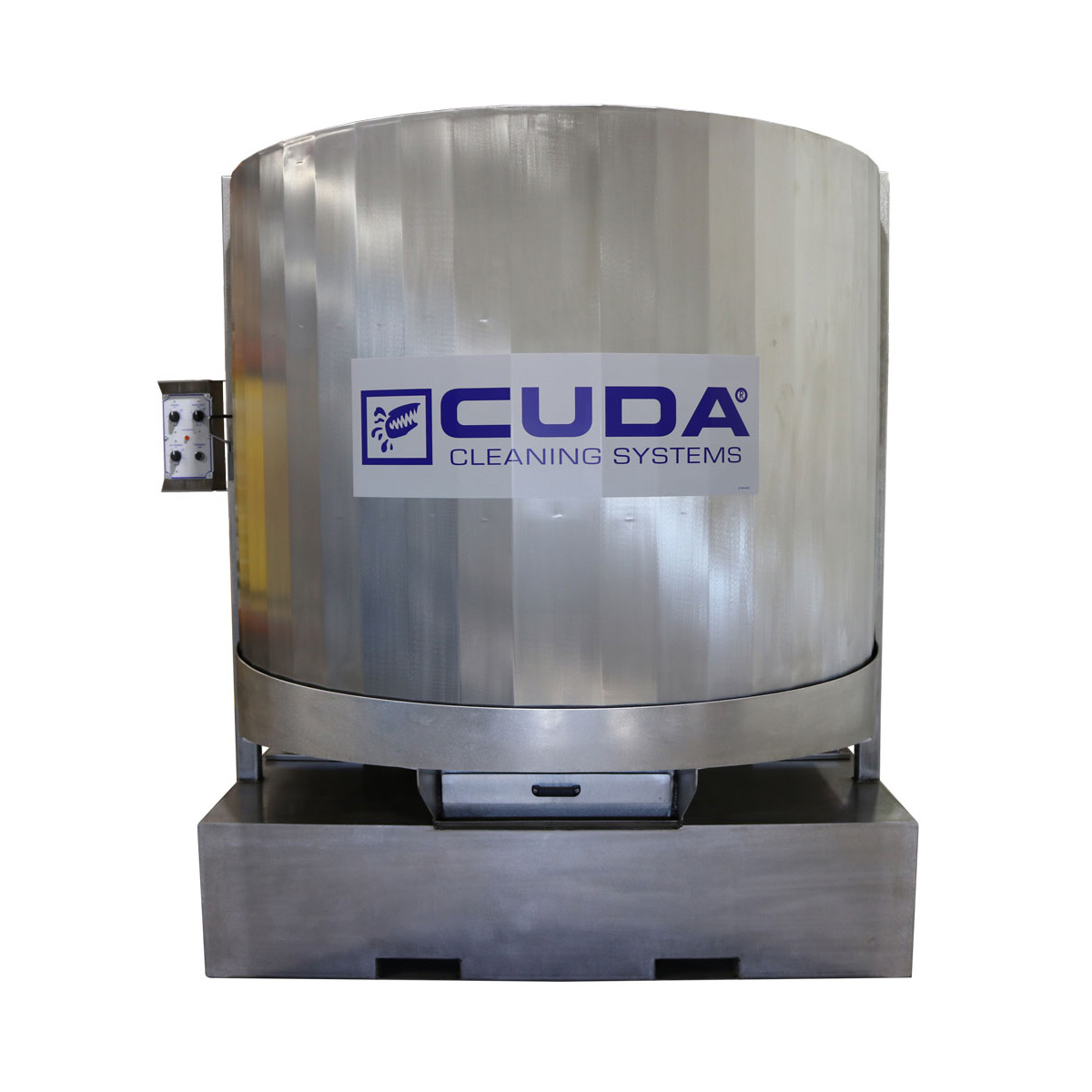

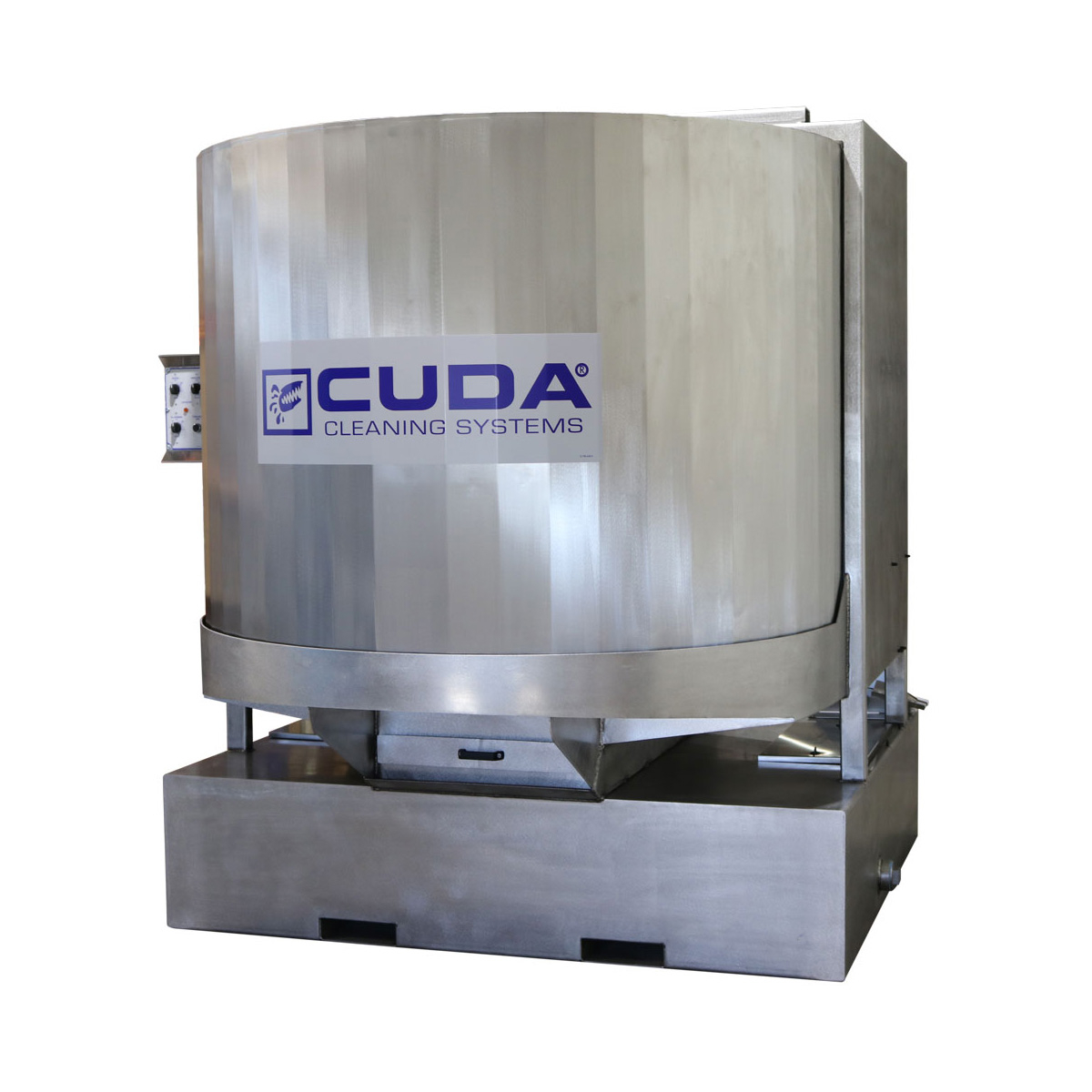

A behemoth by any standard, Cuda’s 7248 features a large, 72-inch turntable diameter, allowing users to clean a wide range of industrial components. Its working height stands at 48-inches, and it boastas a load capacity of 5000 lbs. The 7248 series is equipped with a 7.5 HP vertical seal-less pump producting 160 GPM at 45 PSI, and has a 200-gallon sump capacity.

A variety of industries can benefit from a 72-inch diameter parts washer including oil and gas, heavy equipment industry (CAT), railroads, and larg manufacturing.

Capacity

5000 lbs.

Diameter

72 in.

Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
7248 1.043-516.0 48″ 72″ 230/3 58
7248 1.043-517.0 48″ 72″ 460/3 32
7248 1.043-518.0 48″ 72″ 575/3 26

Options

Part No Description
8.749-394.0 Automatic Water Fill
8.923-103.0 72″ Containment Ring
8.921-972.0 2 Stage Filtration
8.923-102.0 Filtration & Sump Sweep
8.924-191.0 60 Mesh Insert for Debris Screen Tray
8.941-104.0 Middle Spray Arm, Detachable
8.725-267.0 Heater Timer, 24 hour 7 day
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day
8.924-172.0 Oil Drain Container
9.802-283.0 Hour Meter
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″)
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″)
8.753-826.0 Medium Duty Parts Basket (18″ x 16″ x 8″)
8.723-214.0 Gray Spray Pain (cannot ship via air)

□ Optional

Literature

7248 Series Product Sheet Product Sheet – Cuda 7248 Series
