Cuda 4860 Series

SKU 4860-Series Categories ,

Cuda 4860 Series

SKU 4860-Series Categories ,
  • 48-Inch Dia Table
  • 60-Inch Working Height
  • Vertical Seal-Less Pump
  • 5000 Lbs Capacity
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

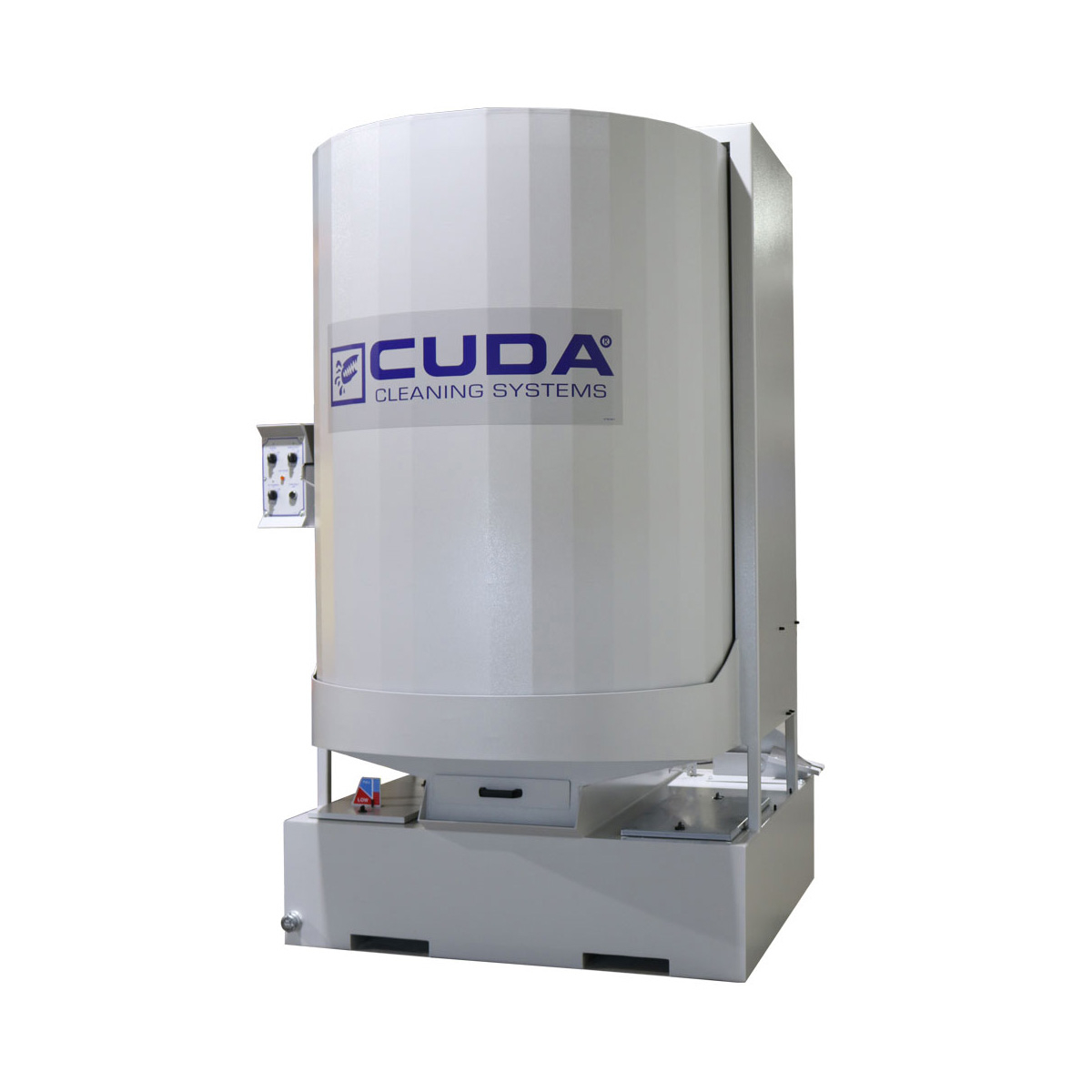

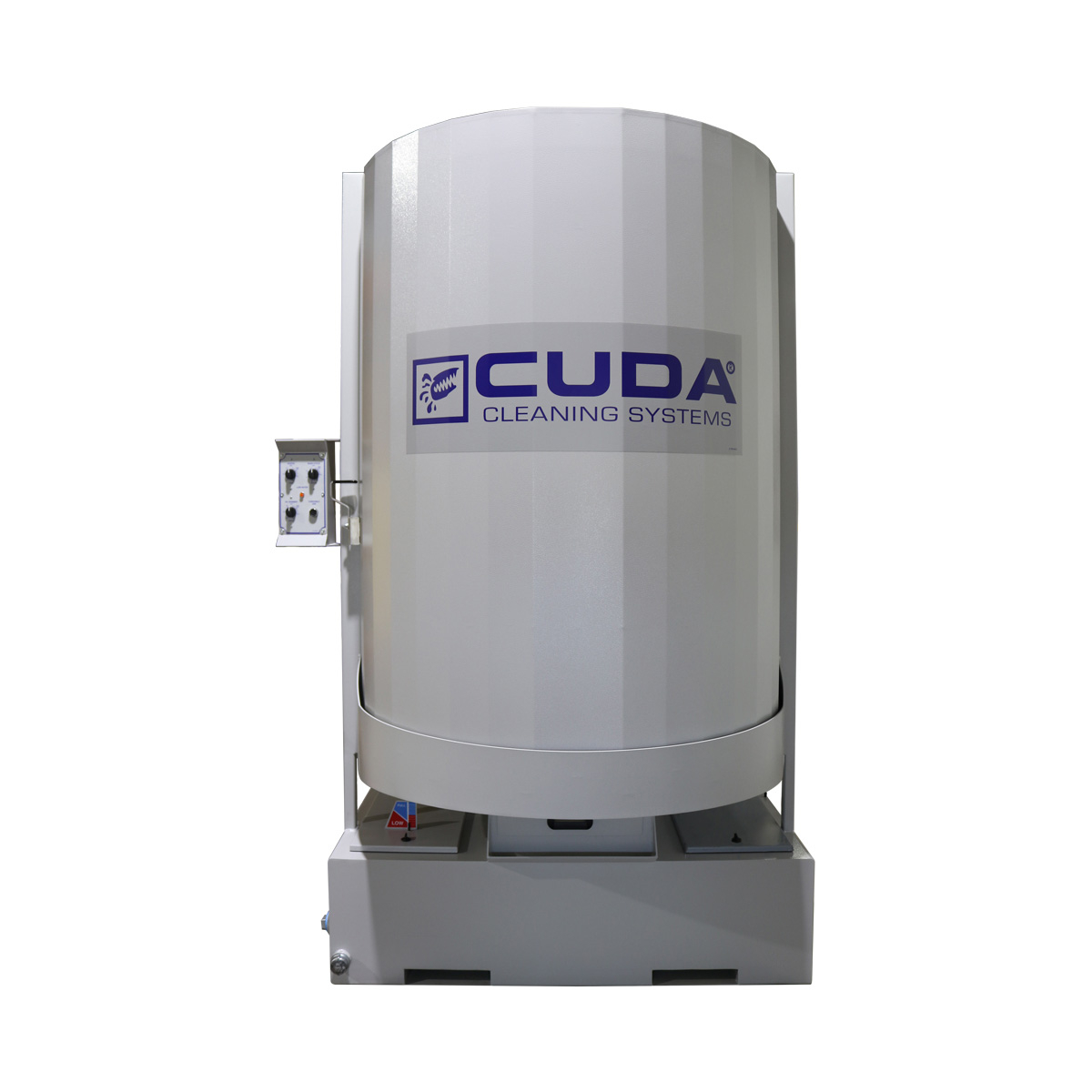

Models shown may include optional features

Cuda

The Cuda 4860 features a turntable diameter of 48-inches, working height of 60-inches, and load capacity of 5000 lbs. The 4860 Series is equipped with a 7.5 HP vertical seal-less pump producing 200 GPM at 50 PSI, and has a 156-gallon sump capacity.

Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
Standard Models
4860 1.043-444.0 60″ 48″ 230/3 55
4860 1.043-519.0 60″ 48″ 208/3 60
4860 1.043-445.0 60″ 48″ 460/3 32
4860 1.043-446.0 60″ 48″ 575/3 26

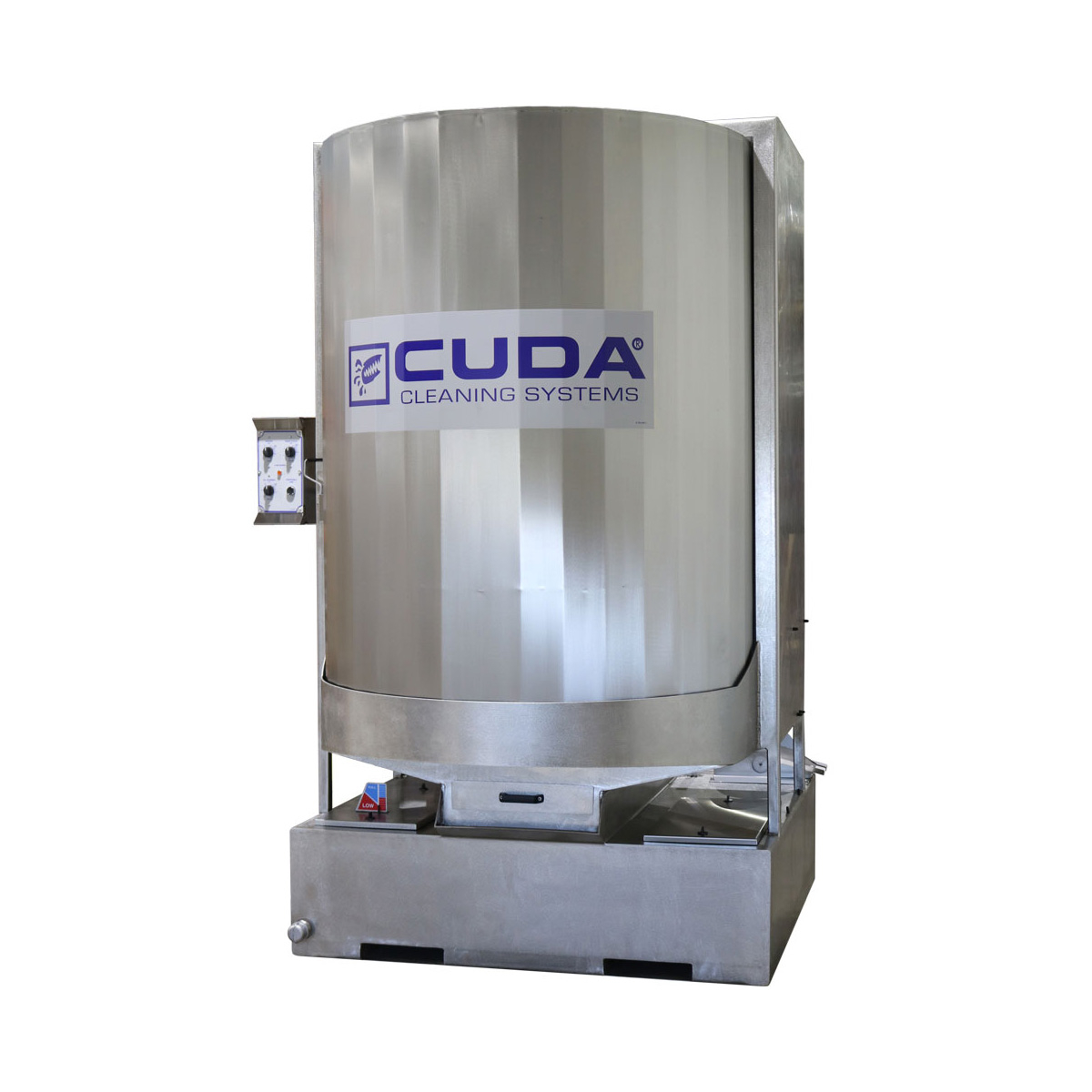

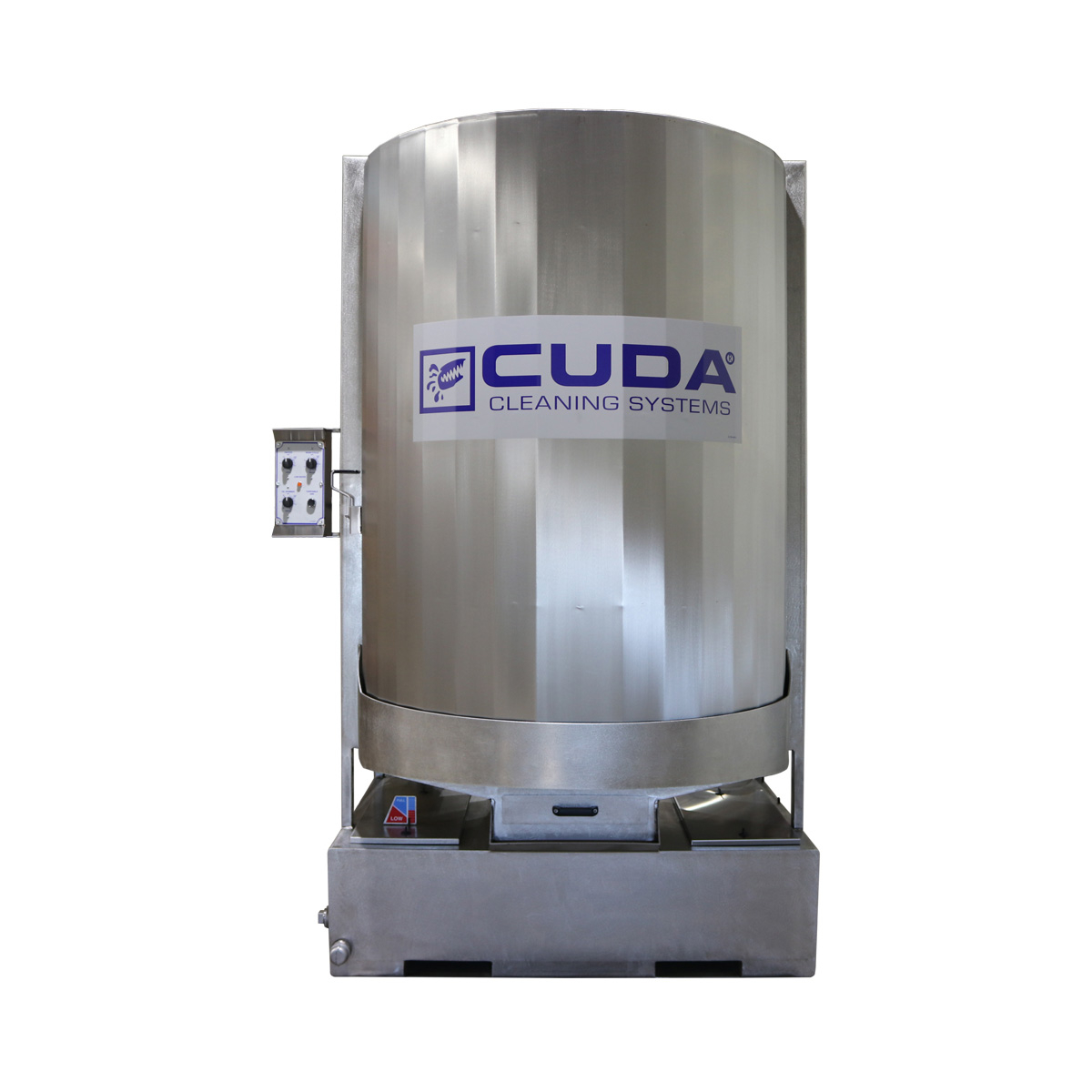

Stainless Steel Models
4860 1.043-510.0 60″ 48″ 230/3 55
4860 1.043-520.0 60″ 48″ 208/3 60
4860 1.043-511.0 60″ 48″ 460/3 32
4860 1.043-512.0 60″ 48″ 575/3 26

NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No Description
8.916-220.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container ■
8.749-394.0 Automatic Water Fill □
8.749-392.0 48″ Containment Ring □
8.916-341.0 2 Stage Filtration □
8.916-342.0 2 Stage Filtration & Sump Sweep □
8.916-365.0 12″ Height Extension □
8.749-395.0 60 Mesh Insert for Debris Screen Tray □

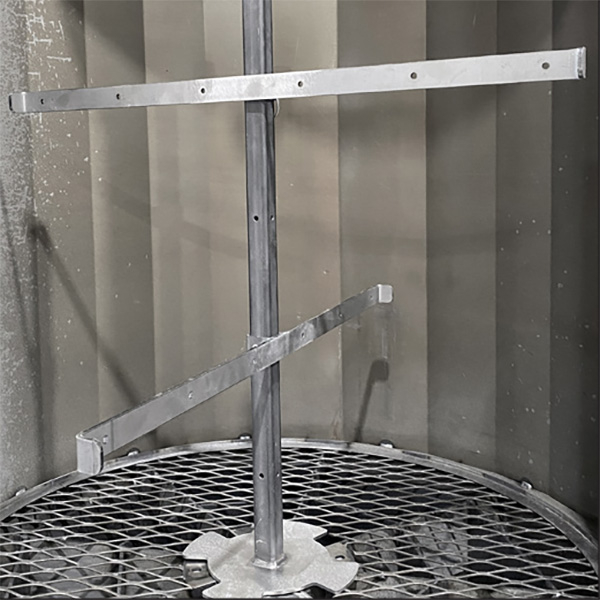

8.749-396.0 4 Hook Parts Tree □

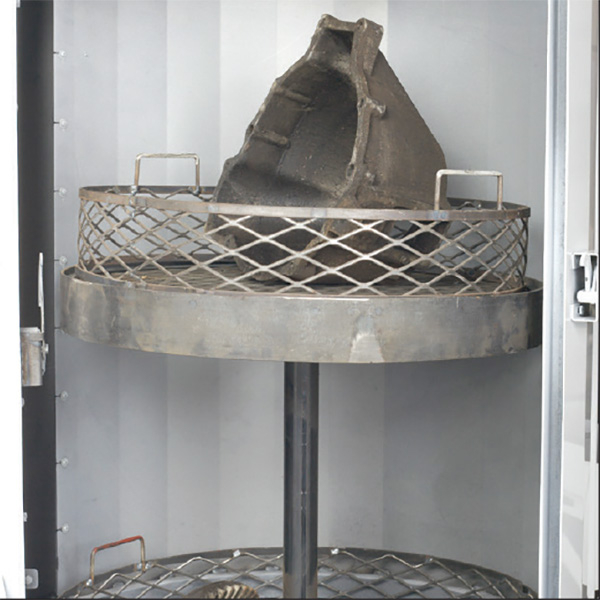

8.749-492.0 Two-Tier Turntable* □
8.749-397.0 Deluxe Kit: Detail and Power Brush with Side Sink □
8.725-267.0 Heater Timer, 24 hour 7 day □
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day □
8.924-172.0 Oil Drain Container □
9.802-283.0 Hour Meter □
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″) □
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″) □
8.753-826.0 Medium Duty Parts Basket (18″ x 16″ x 8″) □
8.723-214.0 Gray Spray Pain (cannot ship via air) □
Stainless Optional Accessories
Stainless Two-Tier Turntable □
Stainless Parts Tree □
Stainless Containment Ring □
Stainless Pump Motor □
Stainless Oil Bucket □
Stainless Steel Handle Kit, assembled

■ Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.

Literature

4860 Series Product Sheet Product Sheet – Cuda 4860 Series
