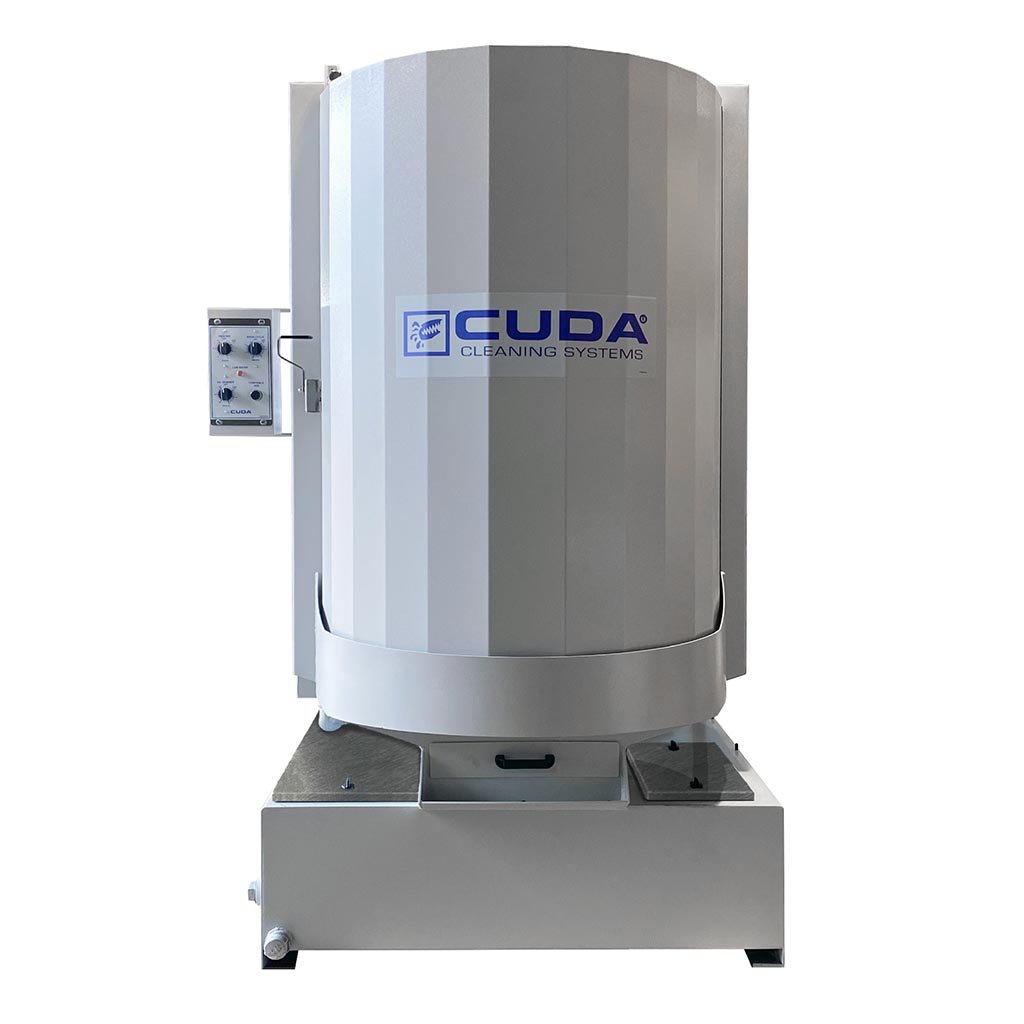

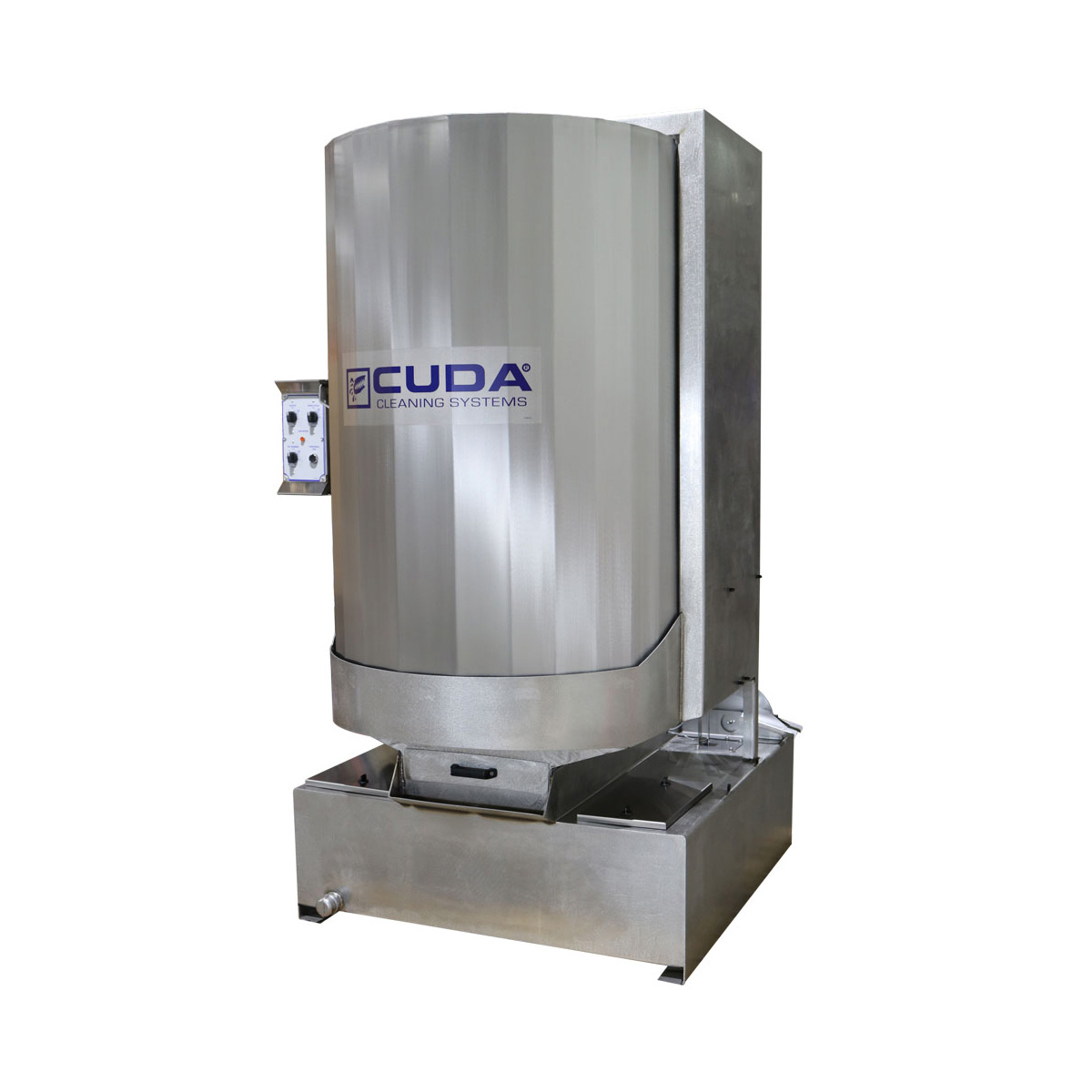

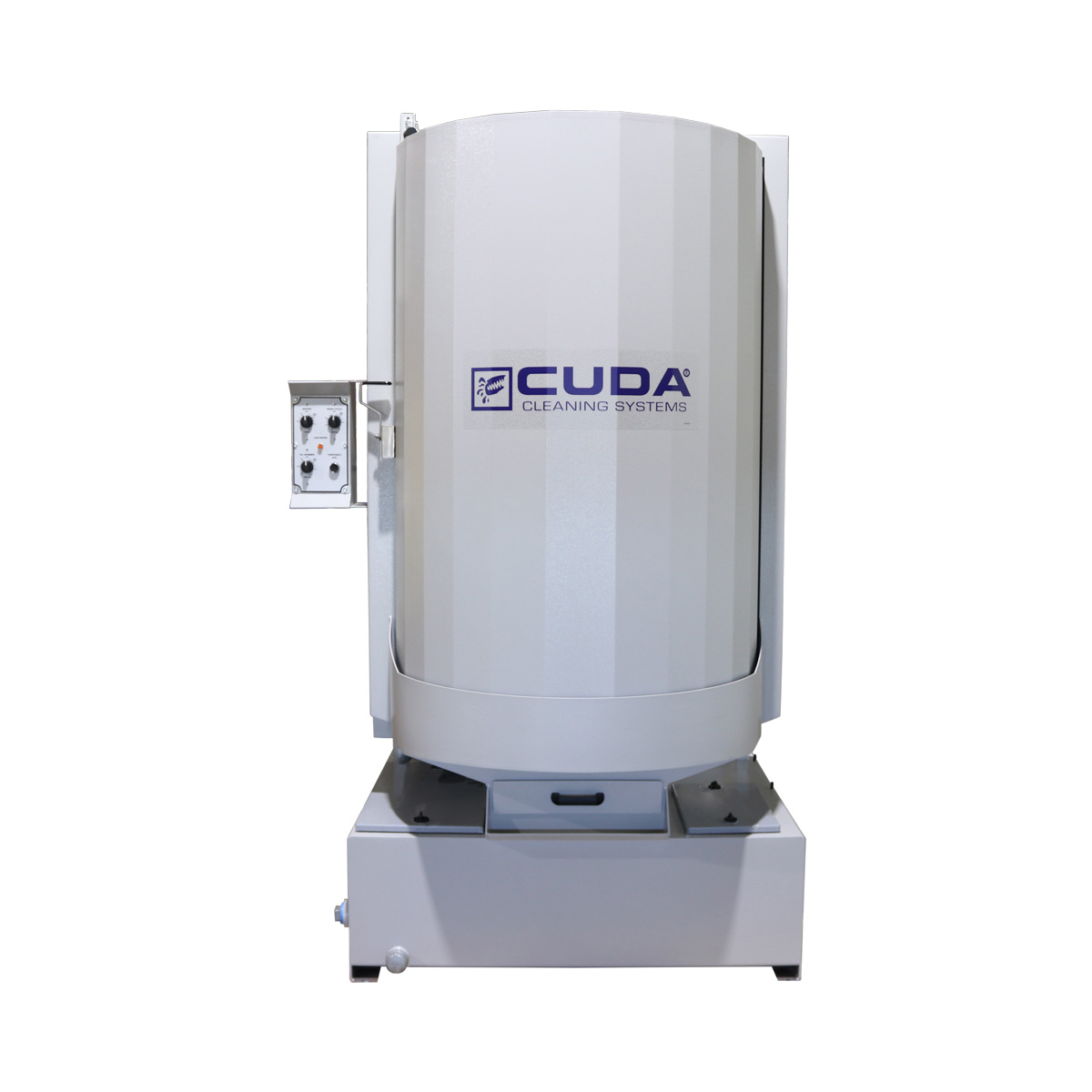

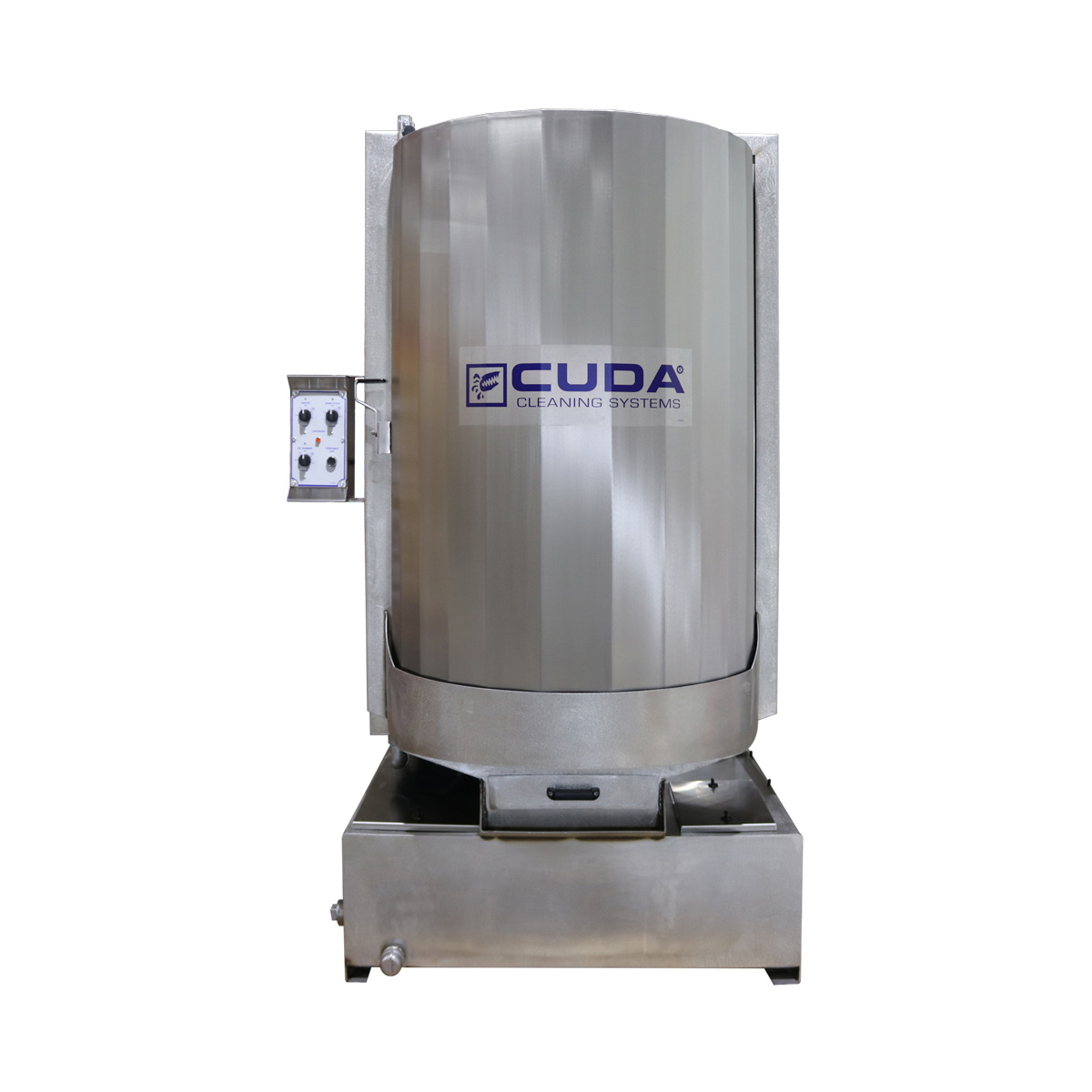

Cuda 3648 Series

SKU: 3648-Series Category:
  • 36-Inch Dia Table
  • 48-Inch Working Height
  • Vertical Seal-Less Pump
  • 2500 Lbs Capacity
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda logo

Loading...

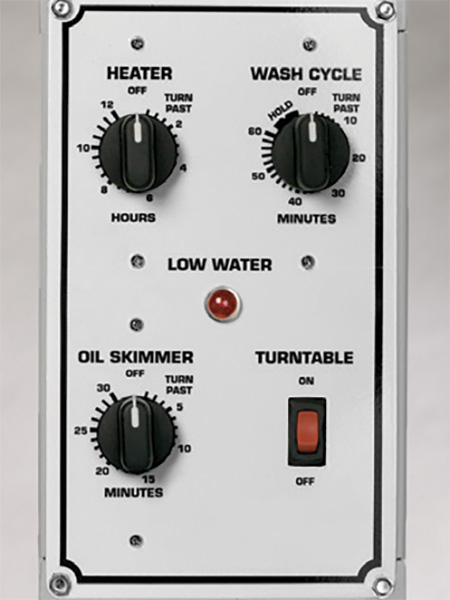

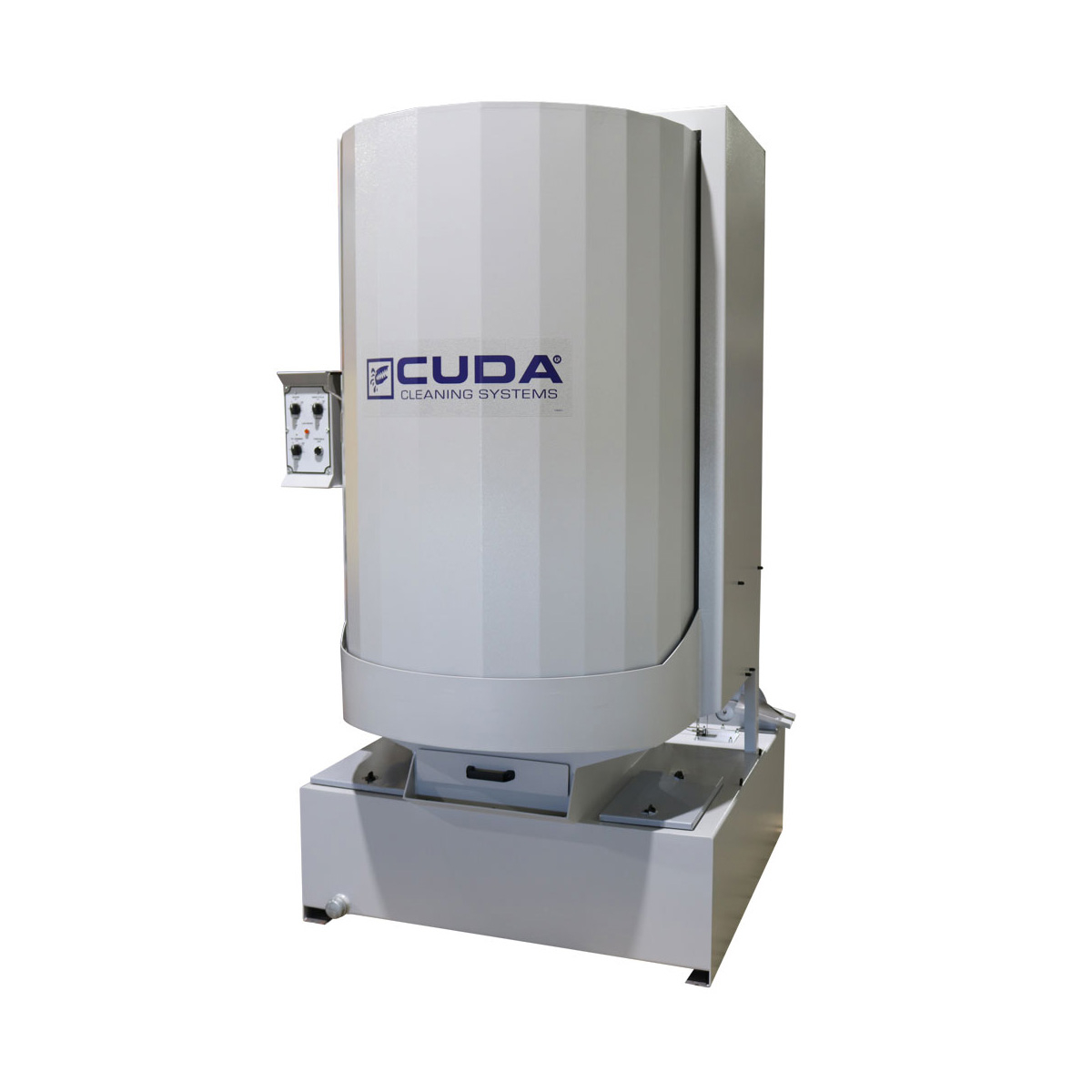

The Cuda 3648 features a turntable diameter of 36-inches, working height of 48-inches, and load capacity of 2500 lbs. The 3648 Series is equipped with a 7.5 HP vertical seal-less pump producing 150 GPM at 50 PSI, and has a 113-gallon sump capacity. It also includes upgraded features such as a more durable control panel, easier to replace handle, stainless steel sump covers, and external plumbing making it the easiest to maintain Cuda yet!

Models

ModelPart NoWorking HeightTurntable DiameterVolt/PHTotal Amps
36481.043-477.048″36″230/358
36481.043-478.048″36″460/332
36481.043-479.048″36″575/328
36481.043-507.048″36″230/358
36481.043-506.048″36″460/332
36481.043-505.048″36″575/328

Options

Part NoDescription
8.922-632.0Preferred Options Package - Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container
8.749-394.0Automatic Water Fill
8.753-767.036″ Containment Ring
8.921-972.02 Stage Filtration
8.921-973.0Filtration & Sump Sweep, 2 Stage

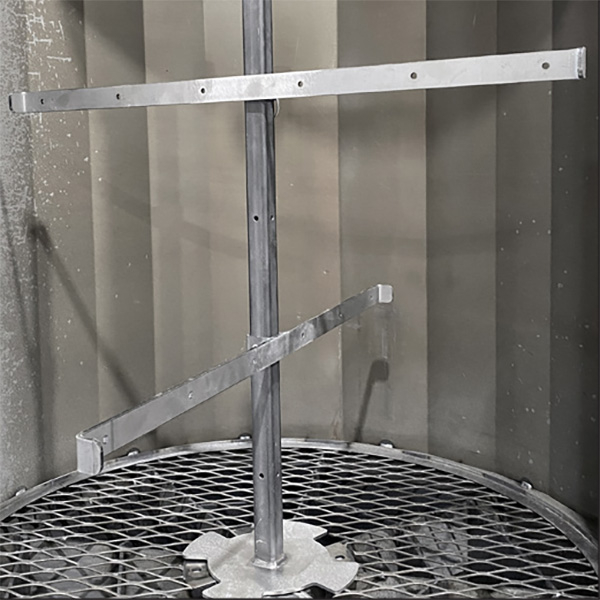

8.749-396.04 Hook Parts Tree

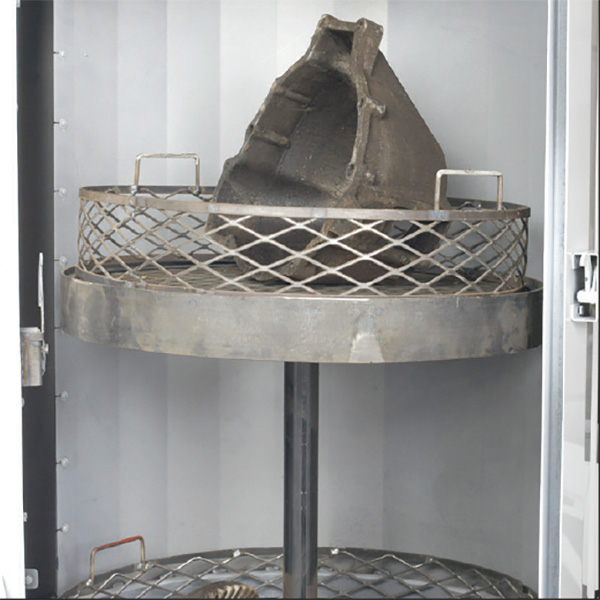

8.921-971.0Two-Tier Turntable
8.707-034.0Wastewater Drum Evaporator Belt (FOB Arkansas)

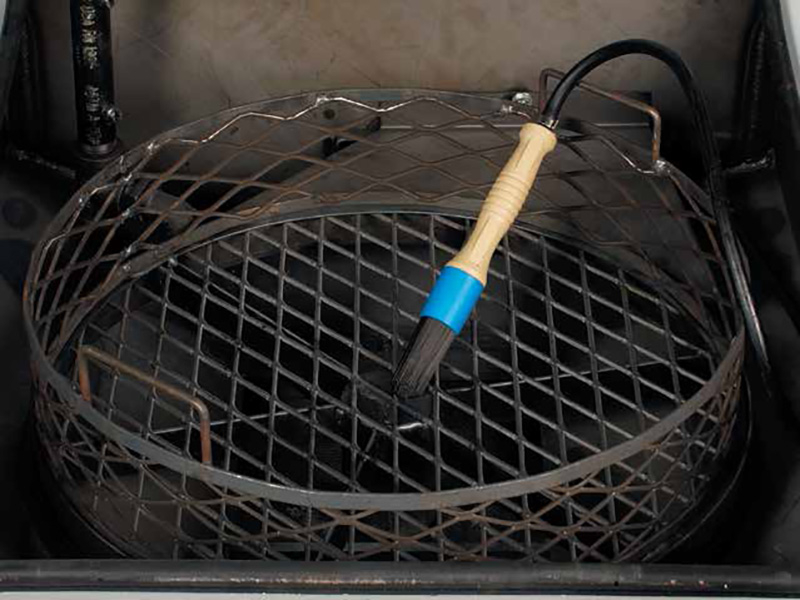

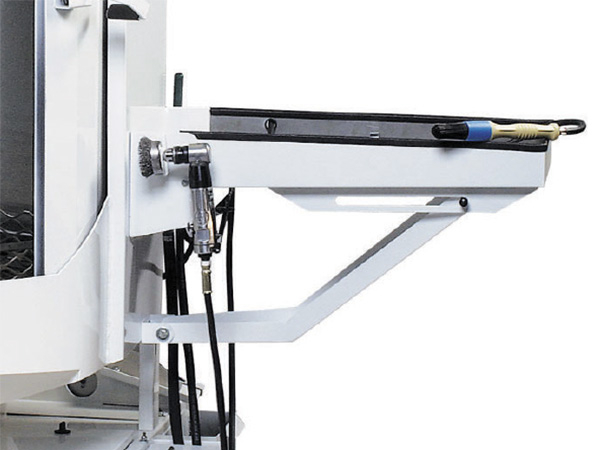

8.749-397.0Deluxe Kit: Detail and Power Brush with Side Sink
8.749-395.060 Mesh Insert for Debris Screen Tray

Literature

Product Sheet - Cuda 3648 Series
