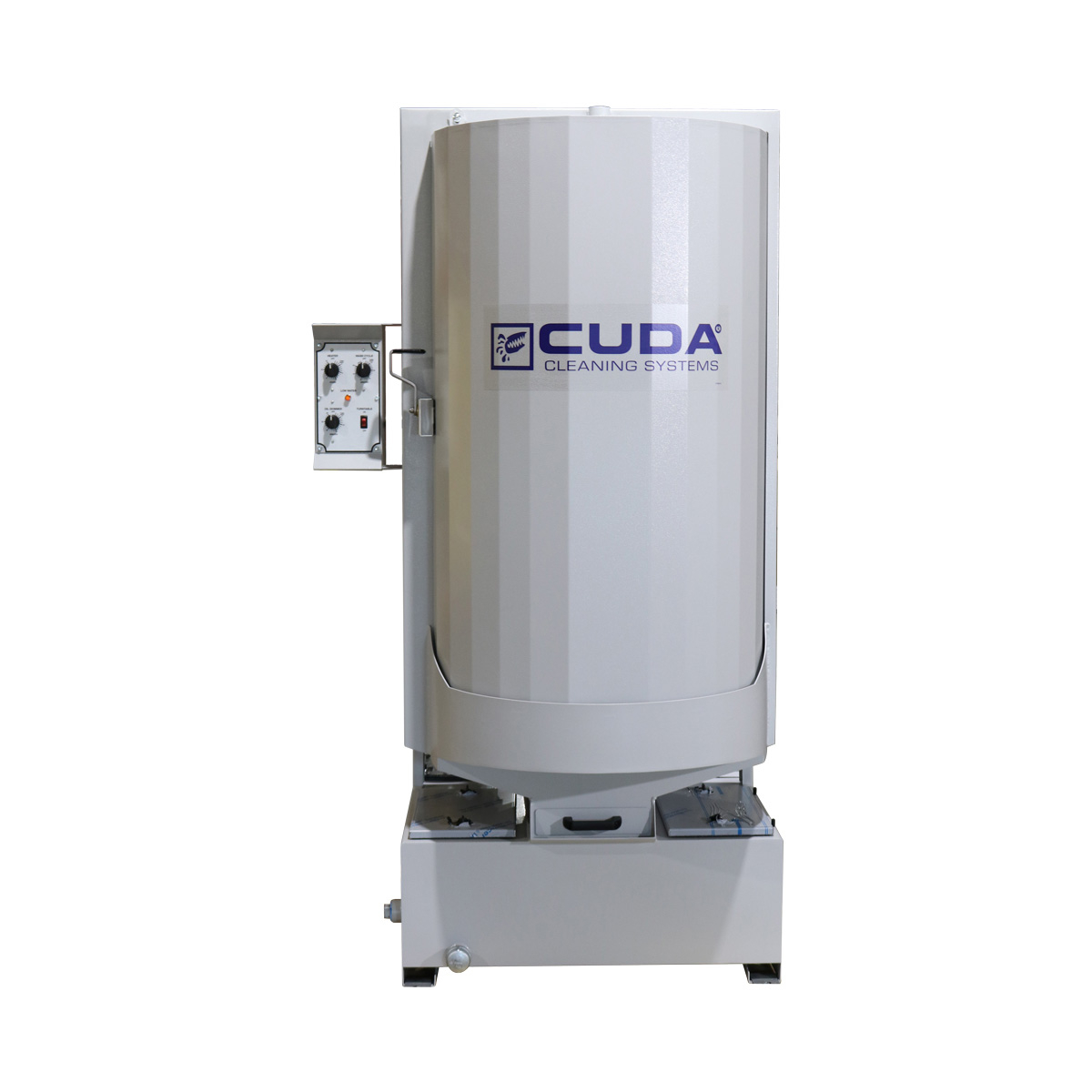

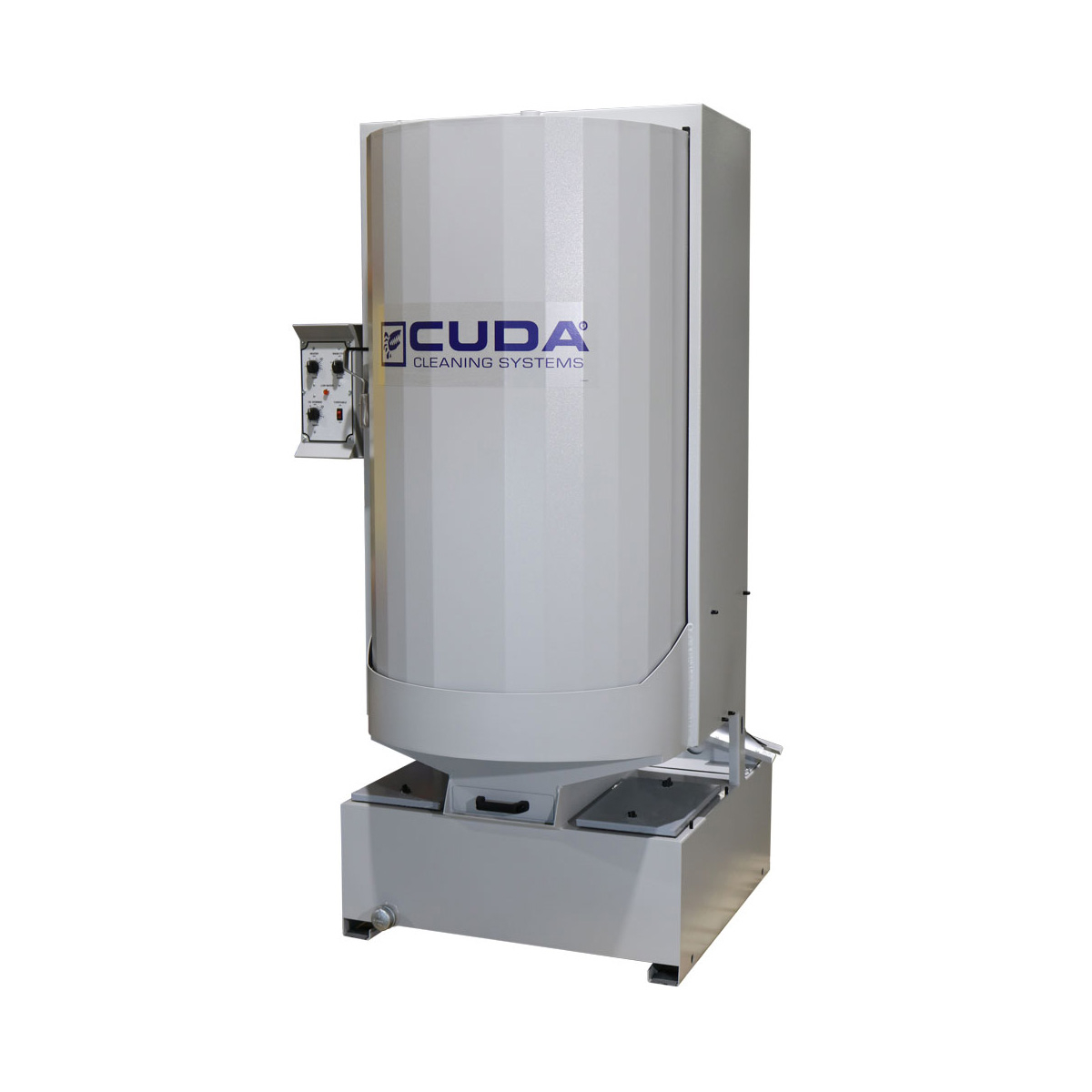

The Cuda 2848 features a turntable diameter of 28-inches, working height of 48-inches, and load capacity of 1000 lbs. The 2848 Series is equipped with a 5 HP vertical seal-less pump producing 110 GPM at 50 PSI.
Models
| Model |
Part No |
Working Height |
Turntable Diameter |
Volt/PH |
Total Amps |
| Standard Models |
| 2848 |
1.043-421.0 |
48″ |
28″ |
208/1 |
64 |
| 2848 |
1.043-422.0 |
48″ |
28″ |
230/1 |
58 |
| 2848 |
1.043-394.0 |
48″ |
28″ |
230/3 |
36 |
| 2848 |
1.043-423.0 |
48″ |
28″ |
208/3 |
40 |
| 2848 |
1.043-424.0 |
48″ |
28″ |
460/3 |
17 |
| 2848 |
1.043-425.0 |
48″ |
28″ |
575/3 |
14 |

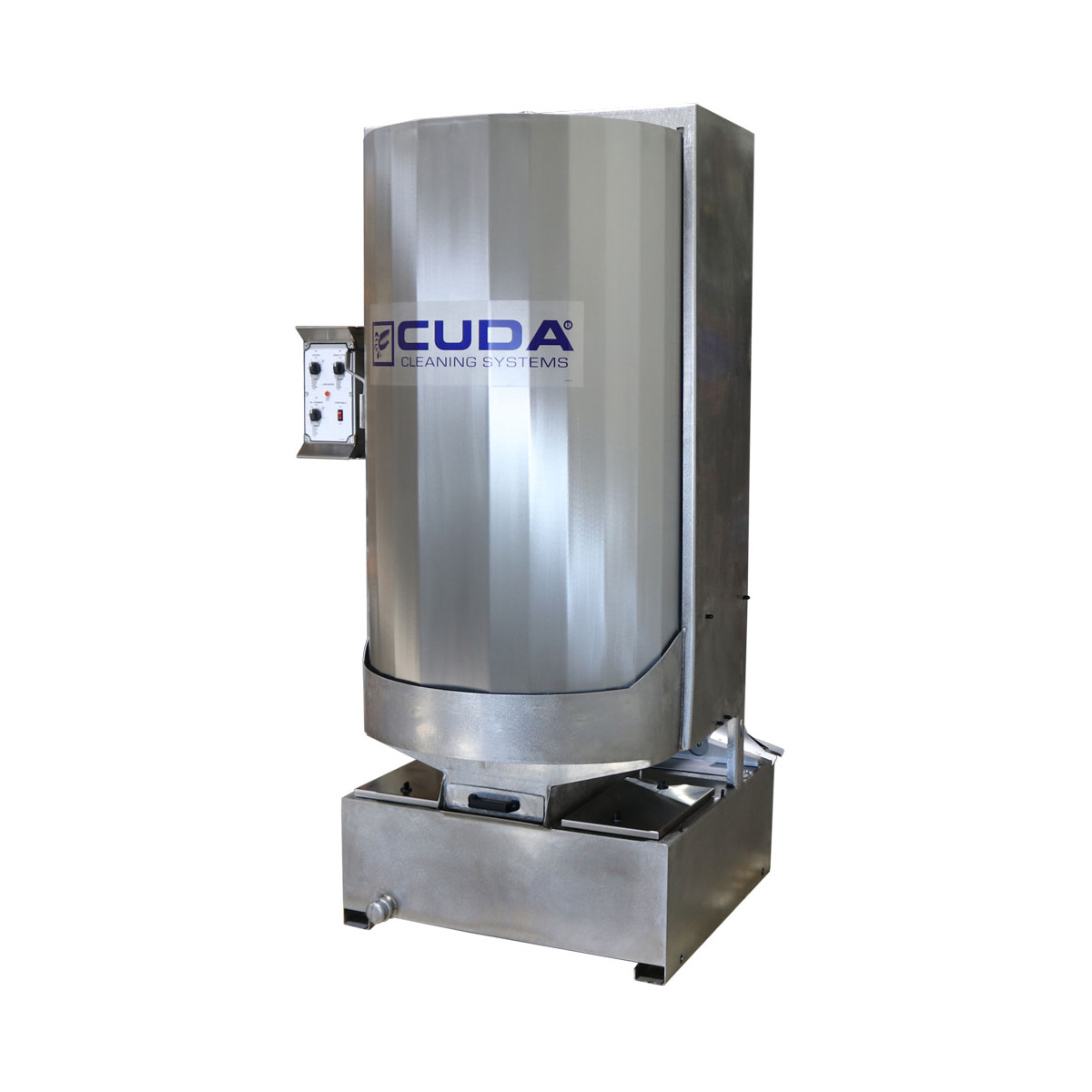

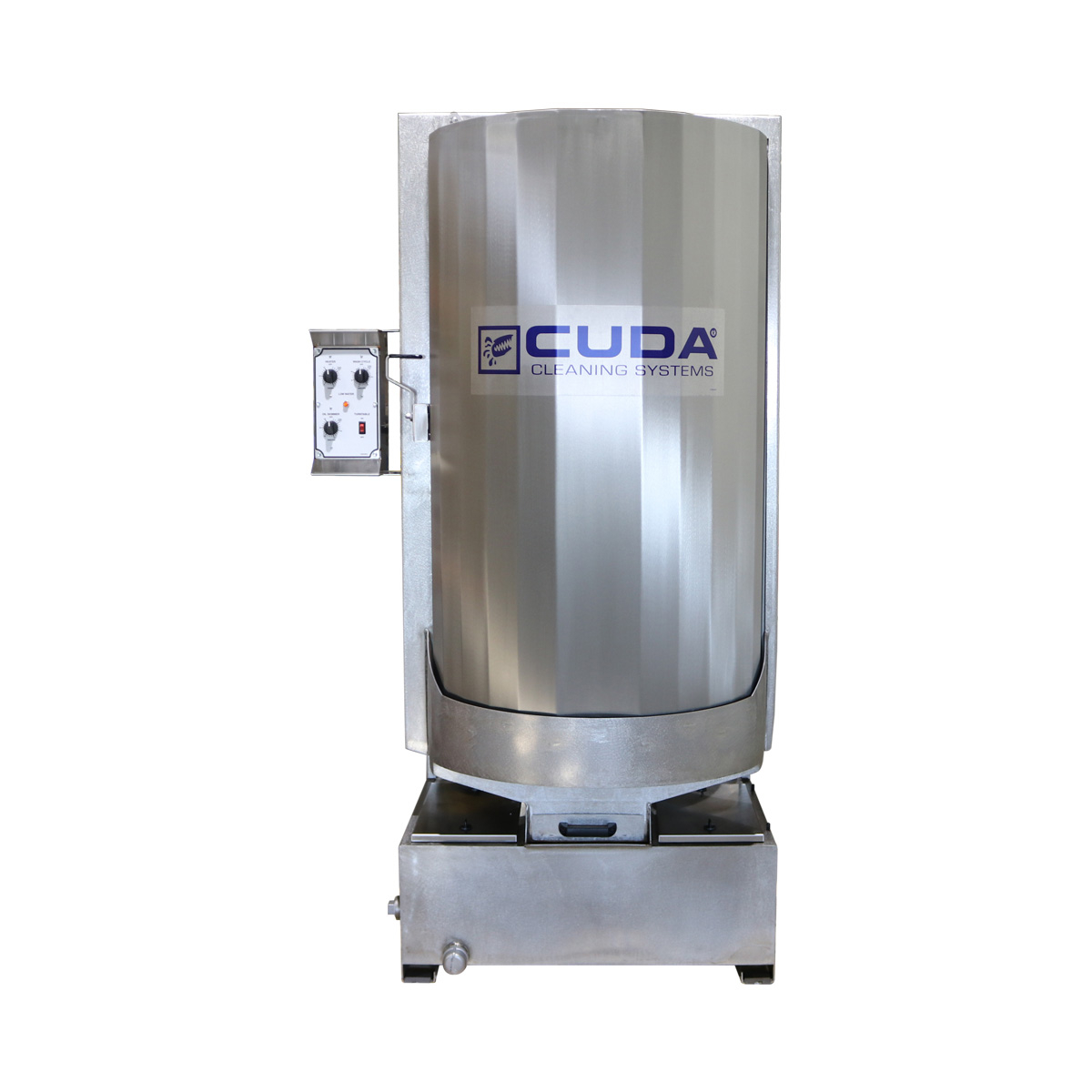

| Stainless Steel Models |
| 2848 |
1.043-481.0 |
48″ |
28″ |
208/1 |
64 |
| 2848 |
1.043-482.0 |
48″ |
28″ |
230/1 |
58 |
| 2848 |
1.043-480.0 |
48″ |
28″ |
230/3 |
36 |
| 2848 |
1.043-483.0 |
48″ |
28″ |
208/3 |
40 |
| 2848 |
1.043-484.0 |
48″ |
28″ |
460/3 |
17 |
| 2848 |
1.043-485.0 |
48″ |
28″ |
575/3 |
14 |
NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.
Options
| Part No |
Description |
|
| 8.915-493.0 |
Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container |
■ |
| 8.915-113.0 |
Automatic Water Fill |
□ |
| 8.705-957.0 |
28″ Containment Ring |
□ |
| 8.915-378.0 |
Filtration |
□ |
| 8.915-379.0 |
Filtration & Sump Sweep |
□ |
| 8.916-114.0 |
12″ Height Extension |
□ |
| 8.915-124.0 |
4 Hook Parts Tree |
□ |
| 8.725-267.0 |
Heater Timer, 24 hour 7 day |
□ |
| 8.725-268.0 |
Heater & Skimmer Timer, 24 hour 7 day |
□ |
| 8.901-881.0 |
Deluxe Kit: Detail and Power Brush with Side Sink |
□ |
| 8.915-316.0 |
60 Mesh Insert for Debris Screen Tray |
□ |
| 8.915-352.0 |
Two-Tier Turntable* |
□ |
| 8.924-172.0 |
Oil Drain Container |
□ |
| 9.802-283.0 |
Hour Meter |
□ |
| 8.731-254.0 |
Light Duty Small Parts Basket (8″ x 8″ x 4″) |
□ |
| 8.753-825.0 |
Light Duty Medium Parts Basket (16″ x 12″ x 6″) |
□ |
| 8.753-826.0 |
Medium Duty Parts Basket (18″ x 16″ x 8″) |
□ |
| 8.723-214.0 |
Gray Spray Pain (cannot ship via air) |
□ |
| Stainless Optional Accessories |
| |
Stainless Two-Tier Turntable |
□ |
| |
Stainless Parts Tree |
□ |
| |
Stainless Containment Ring |
□ |
| |
Stainless Pump Motor |
□ |
| |
Stainless Oil Bucket |
□ |
| |
Stainless Steel Handle Kit, assembled |
|
■ Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.
