Cuda 2840 Series

SKU: 2840-Series Category:
  • 28-Inch Dia Table
  • 40-Inch Working Height
  • 1000 Lbs Capacity
  • 150° – 180° Operating Temp
  • Vertical Seal-Less Pump
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda logo

Loading...

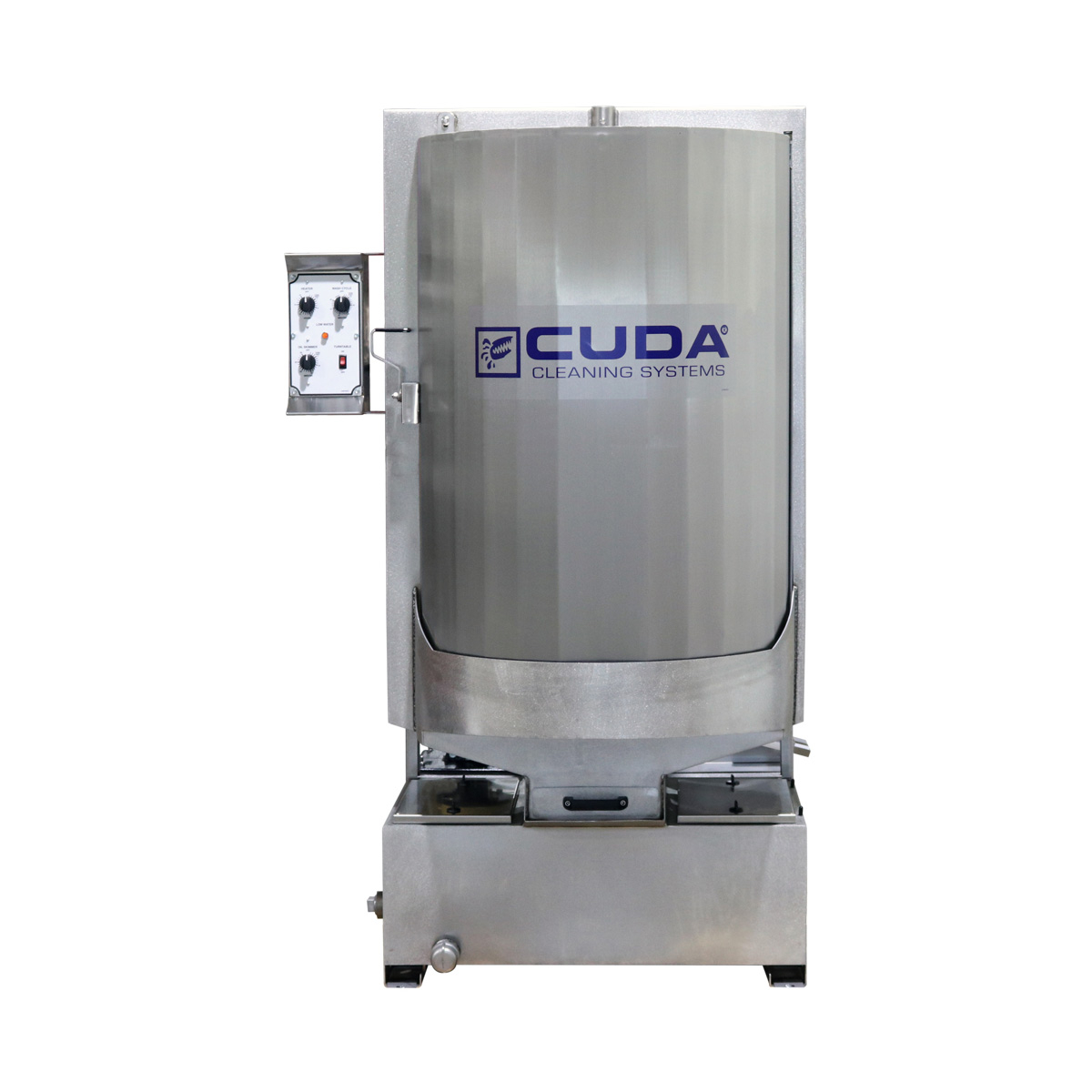

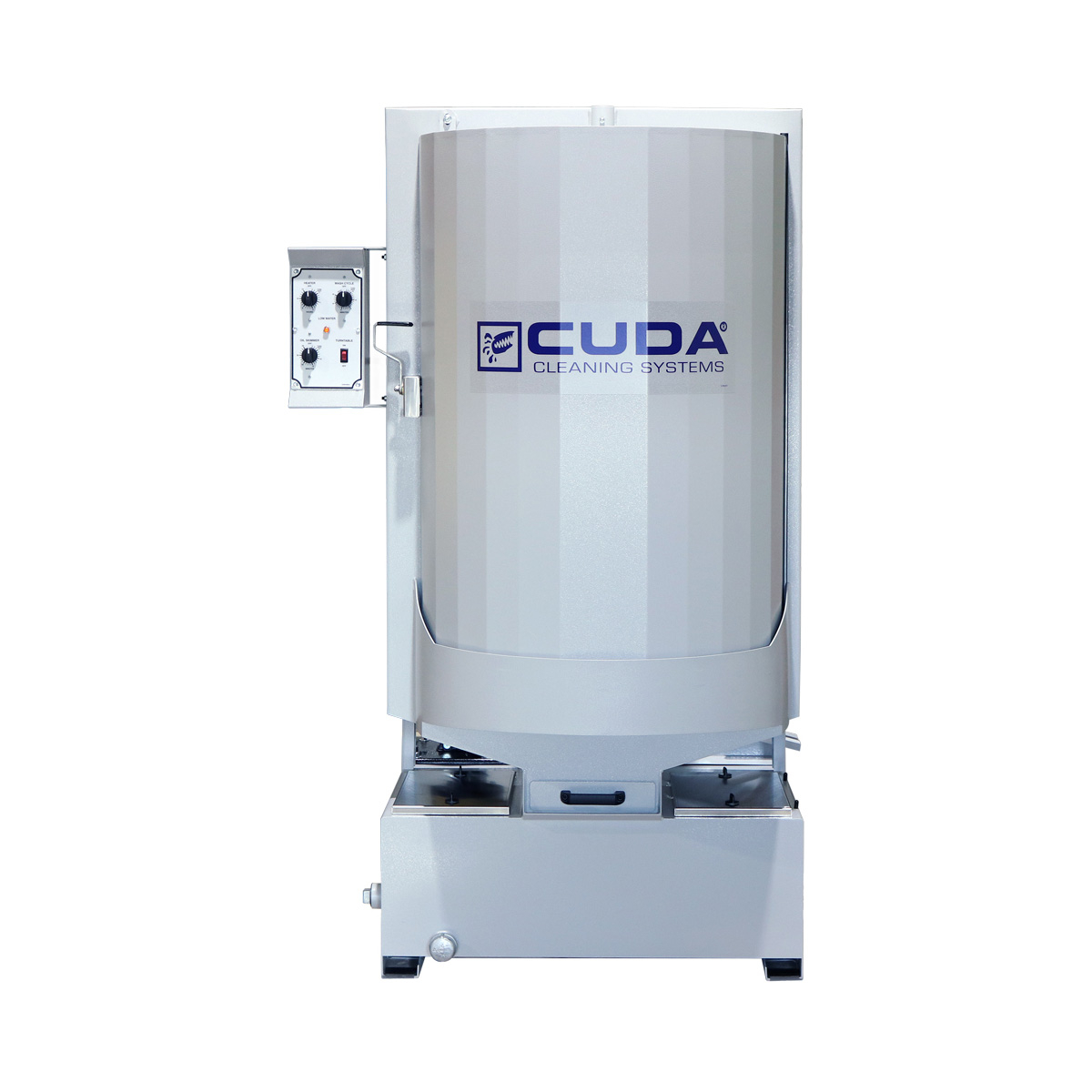

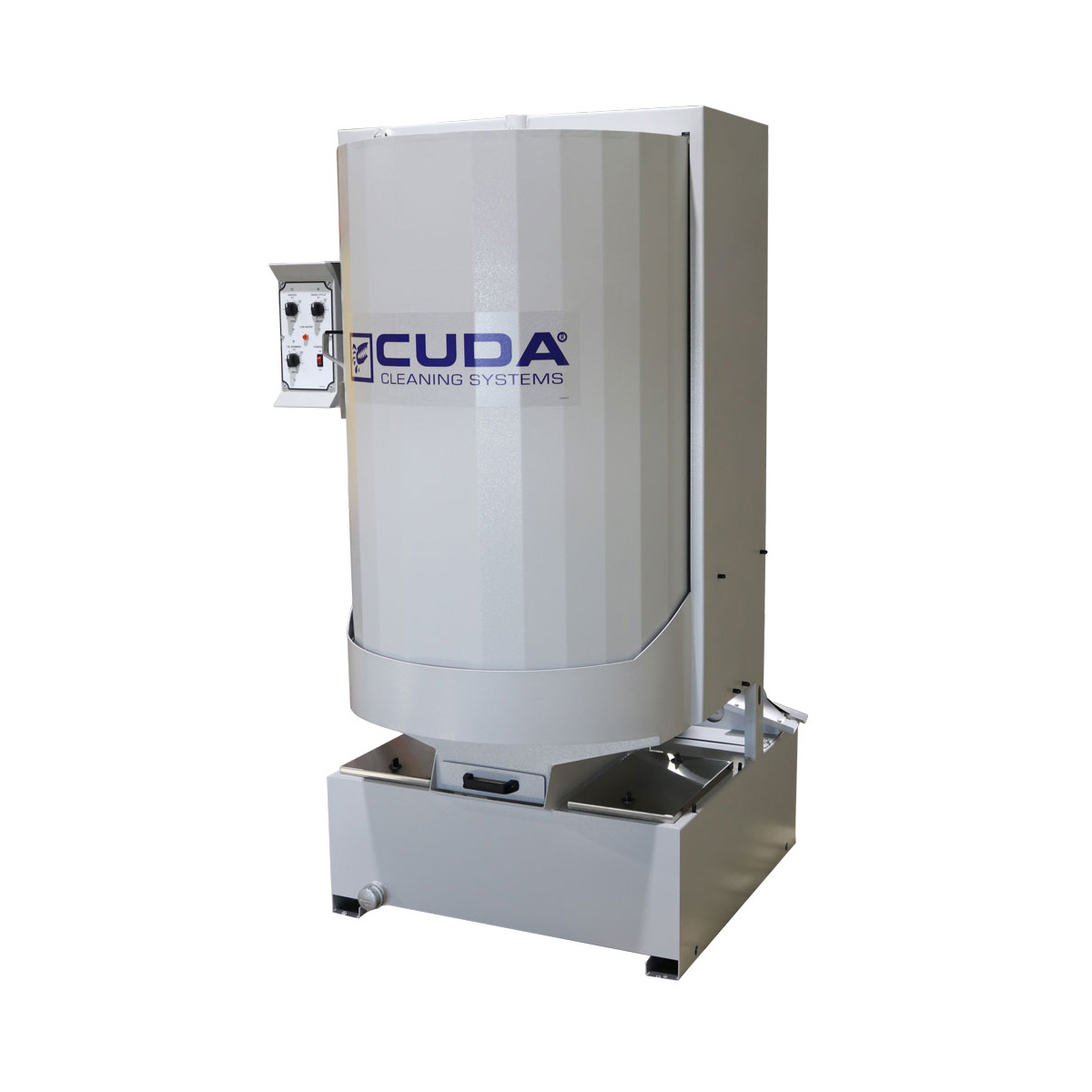

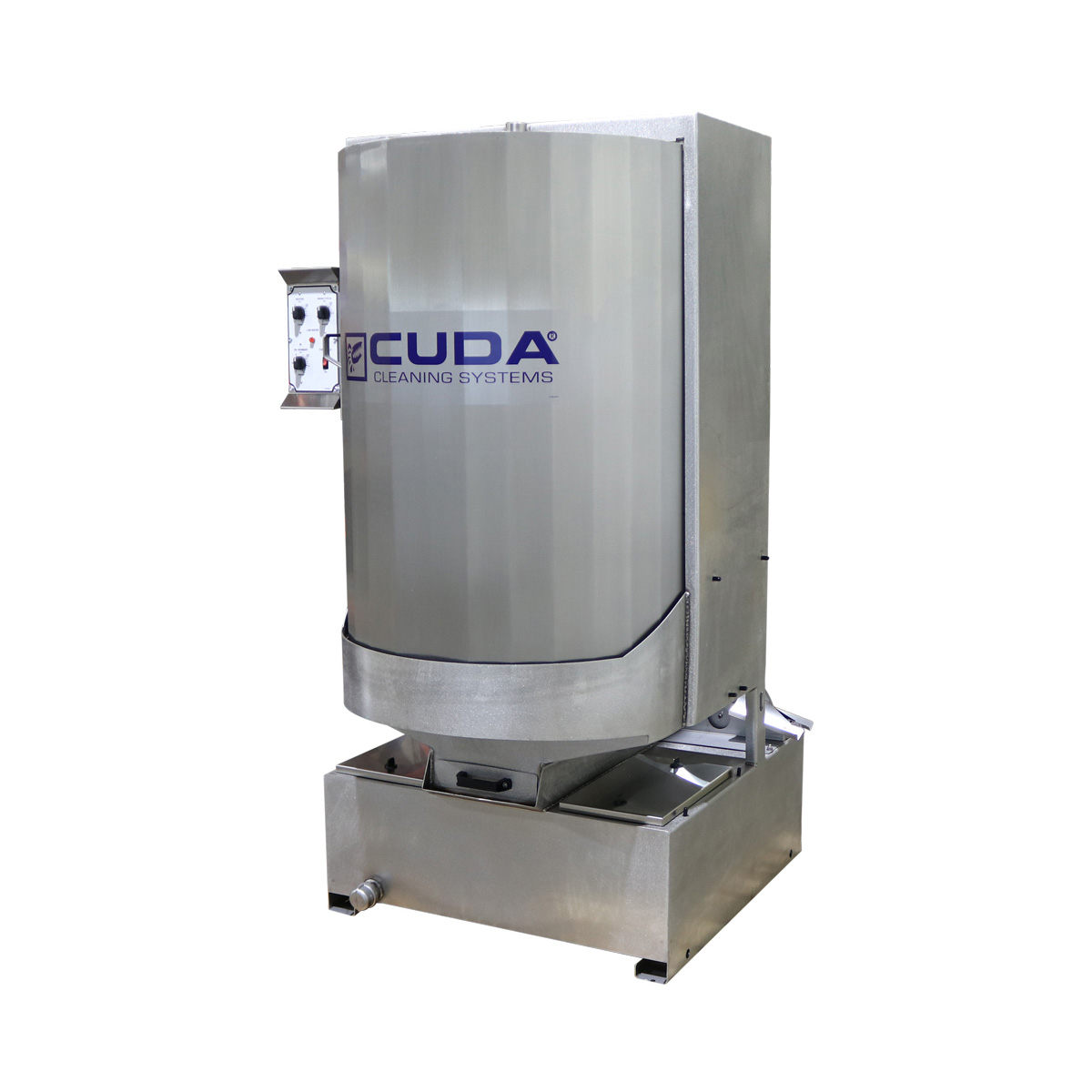

The Cuda 2840 is the next larger size in the front-load automatic parts washer models. The 2840 features a turntable diameter of 28-inches, working height of 40-inches, and load capacity of 1000 lbs. The 2840 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI.

Models

ModelPart NoWorking HeightTurntable DiameterVolt/PHTotal Amps
28401.043-395.040″28″230/138
28401.043-416.040″28″208/142
28401.043-418.040″28″230/323
28401.043-417.040″28″208/325
28401.043-419.040″28″460/311
28401.043-420.040″28″575/39
28401.043-492.040″28″230/138
28401.043-493.040″28″208/142
28401.043-498.040″28″230/323
28401.043-494.040″28″208/325
28401.043-496.040″28″460/311
28401.043-497.040″28″575/39

Options

Part NoDescription
8.915-493.0Preferred Options Package - Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container
8.915-113.0Automatic Water Fill
8.705-957.028″ Containment Ring
8.915-378.0Filtration
8.915-379.0Filtration & Sump Sweep
8.915-124.04 Hook Parts Tree
8.725-267.0Heater Timer, 24 hour 7 day
8.725-268.0Heater & Skimmer Timer, 24 hour 7 day
8.901-881.0Deluxe Kit: Detail and Power Brush with Side Sink

Literature

Product Sheet - Cuda 2840 Series
