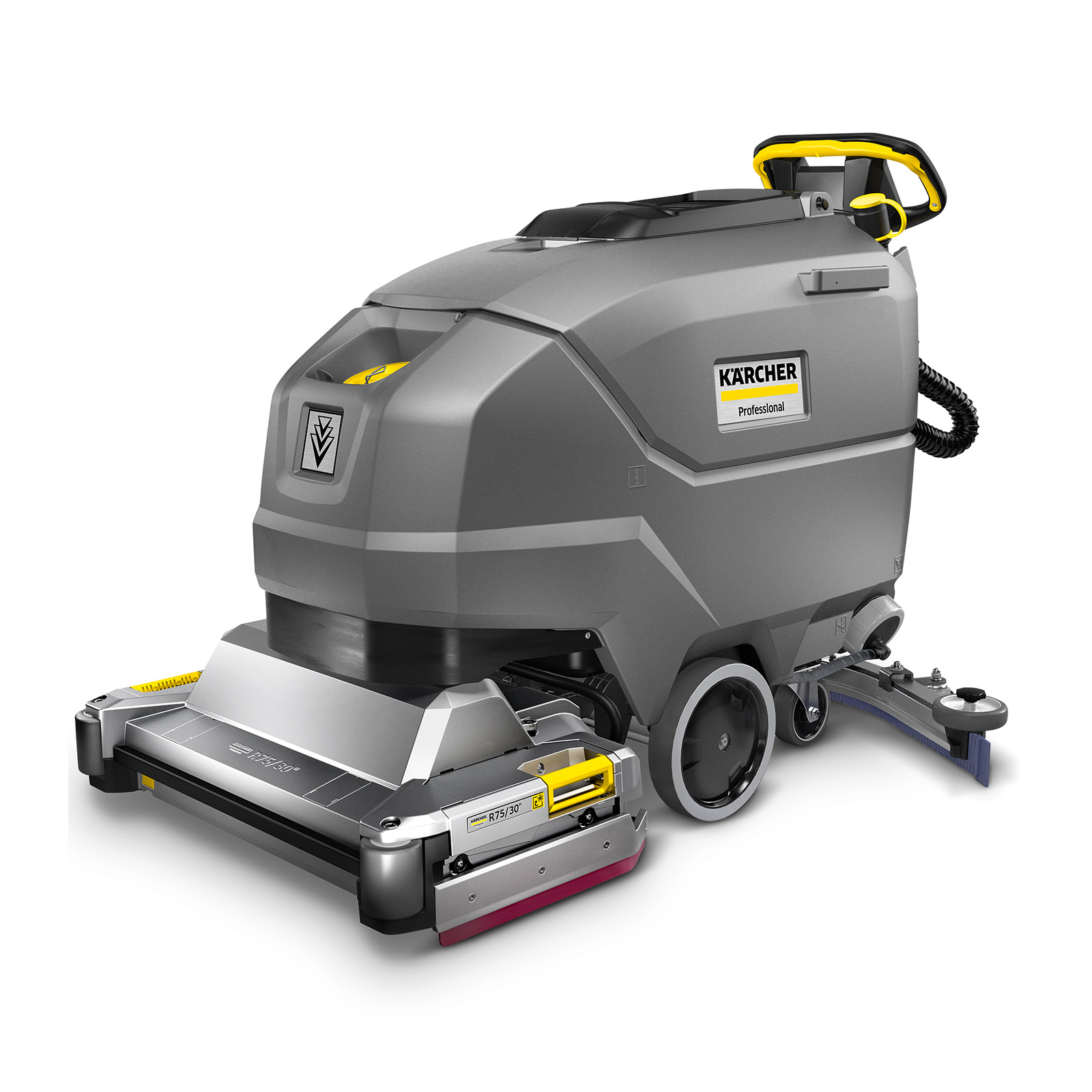

Karcher BR 75/75 W Bp Classic
- 40.5″ Suction Bar
- 30″ Cleaning Width
- Traction Drive
- Adaptable to specific floor type cleaning needs
- Large aluminum brush deck is tough and durable
- Wet, AGM and Lithium battery options are available
Heavy-duty cleaning made simple.
Experience cleaning like never before with the BR 75/75 W Bp Classic, a cylindrical walk-behind scrubber with traction drive, now part of our growing Classic Series family. It’s a powerhouse designed for simplicity, reliability, and ease of use. It can tackle challenging environments with its exceptional cleaning ability and rugged construction. Not only is the BR 75/75 incredibly effective, it’s also incredibly easy to use and maintain. Its durable frame and excellent sight lines makes it highly maneuverable, even able to turn in spaces as narrow as 5.1 feet in width. The die cast aluminum scrub decks and squeegee assemblies provide unbeatable durability, as the increased contact pressure of the cylindrical brushes ensure exceptional cleaning. With the yellow color coding you have come to know from Kärcher, identifying important operator touch points is a breeze. With its 30-inch working width and 40.5-inch suction width this scrubber covers up to 30,645 square feet per hour. Running on a 24V/190Ah battery, it provides up to 4 hours of battery run time, and has a maximum speed of 3.1 mph while cleaning. Get the job done with ease using the BR 75/75 Cylindrical W Bp Classic – a machine that’s simple, powerful and delivers exceptional results every time.
| Capacity | 19.8/19.8 Gal |
|---|---|
| Cleaning Path | 30 In. |
| Equipment Type | Scrubber – Walk-Behind |
Specifications
| Technical Specifications | ||
| Cleaning path/width | Inch | 30 |
| Brush type | Cylindrical | |
| Brush quantity | Units | 2 |
| Brush diameter | Inch | 4 |
| Suction bar (squeegee) width | Inch | 40.5 |
| Drive | Traction | |
| Solution/recovery capacity | Gal | 19.8 / 19.8 |
| Theoretical/practical productivity | Sq Ft/Hr | 30,645 / 21,342 |
| Operating noise level | dBA | 65 |
| Battery charger | Shelf | |
| Brush contact pressure | Lbs | 66 |
| Brush speed | RPM | 600 |
| Vac motor rating | Watts | 500 |
| Vac motor suction | cfm | 51 |
| Waterlift | In of Water | 64 |
| Weight with batteries | Lbs | 556 AGM |
| Dimensions (LxWxH) | Inch | 57 x 30 x 42 |
Models
| Part No | Description |
| 9.848-458.0 | BD 75/75 W Bp Classic, 185 Ah wet batteries, shelf charger |
| 9.848-459.0 | BD 75/75 W Bp Classic, 195 Ah AGM batteries, shelf charger |
| 9.848-460.0 | BD 75/75 W Bp Classic, 114 Ah Lithium battery, shelf charger |
Accessories
| Part No. | Description | |
| 8.663-291.0 | Battery, 6V/190 Ah AGM (std. with 9.841-467.0, 4 required) | ■ |
| 8.622-835.0 | Battery, 6V/185 Ah wet (std. with 9.841-466.0, 4 required) | ■ |
| 8.643-374.0 | Shelf charger for 190 Ah AGM batteries (std. with 9.841-467.0) | ■ |
| 8.644-222.0 | Shelf charger for 185 Ah wet batteries (std. with 9.841-466.0) | ■ |
| 4.777-108.0 | Squeegee, 1030 mm | ■ |
| 4.037-144.0 | Suction blades, 1030 mm, blue (standard) | ■ |
| 4.035-605.0 | Cylindrical red brush, 30-inch | ■ |
| 4.037-145.0 | Suction blades, 1030 mm (polyurethane) | □ |
| 9.753-088.0 | Squeegee transport plate | □ |
| 2.644-140.0 | Warning beacon add-on kit | □ |
| 2.763-047.0 | R 75 Aluminum brush head, cylindrical, 30 inch | □ |
| 6.907-729.0 | Cylindrical white brush, soft, 30-inch | □ |
| 6.907-730.0 | Cylindrical orange brush, high-low for grout, 30-inch | □ |
| 6.907-731.0 | Cylindrical green brush, hard, 30-inch | □ |
| 6.907-732.0 | Cylindrical black brush, very agressive, 30-inch | □ |
| 5.035-488.0 | Home Base kit (adapter and cable hook) | □ |
| 6.980-077.0 | Double Hook (requires 5.035-488.0) | □ |
| 4.035-406.0 | Home Base kit carrying case | □ |
| 6.980-078.0 | Mop Clip (requires 5.035-488.0) | □ |
| 6.980-080.0 | Bottle Hook (requires 5.035-488.0) | □ |
| 4.070-075.0 | Universal hook | □ |
■ Included □ Optional
