Models shown may include optional features.
Price range: $6,741.00 through $7,452.55
This product ships via LTL Freight. See our Shipping Policy for details.
Free LTL freight to the 48 Continental United States. See our Shipping Policy for details. Please call (509) 535-1555 to order if shipping to Alaska, Hawaii, or Canada.
Quality is within your reach.

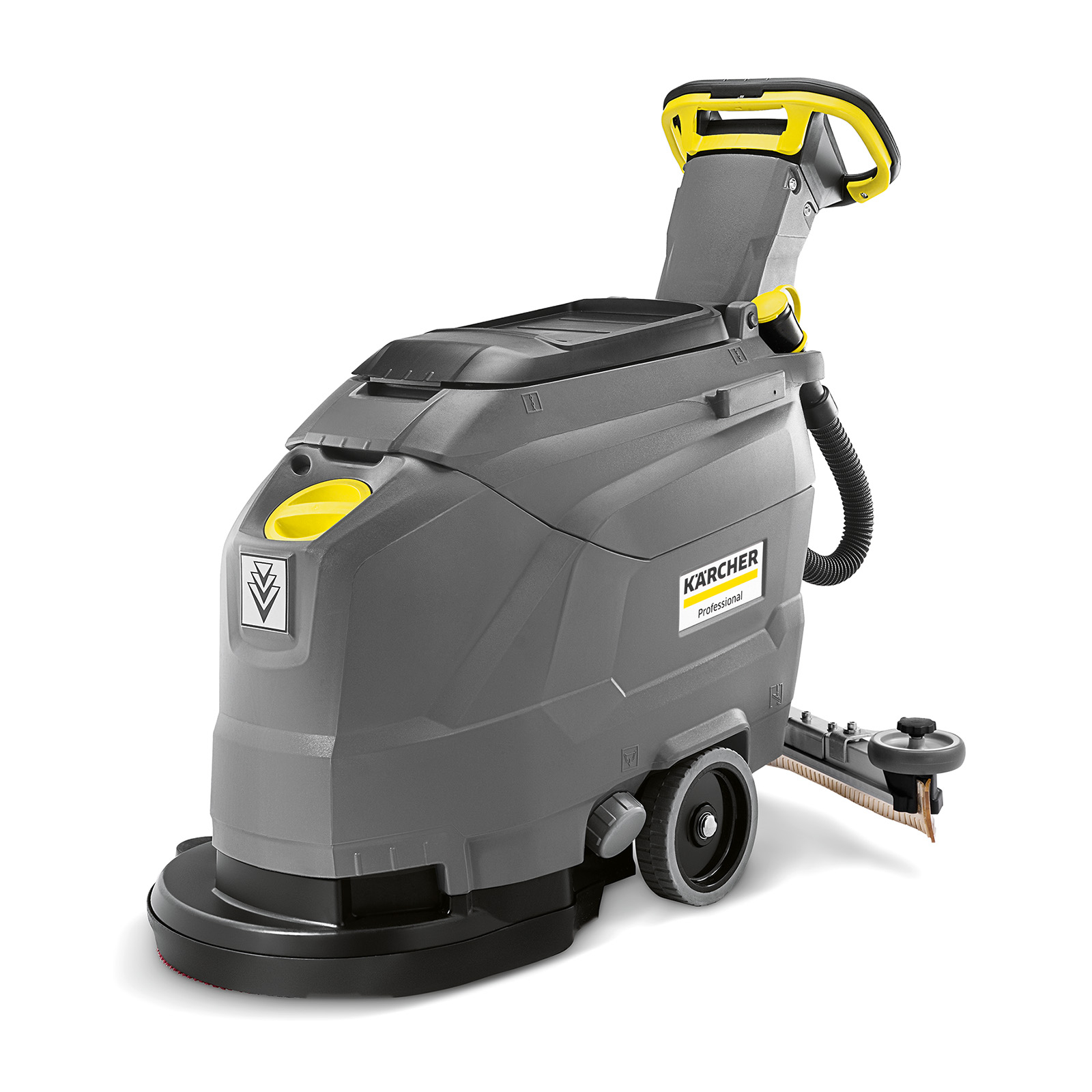

This is the 17 inch scrubber for value and productivity. Its compact size allows for easy operation in tight areas. The BD 43/25 C Bp features a streamlined design that is easy to service; every aspect of the design has been streamlined for ultimate quality at a price that will not break the bank.
Part Numbers: 9.841-418.0, 98414180, 9.841-419.0, 98414190
| Technical Specifications | ||
| Cleaning path / width | Inch | 17 |
| Brush type | Pad | |
| Brush quantity | Units | 1 |
| Brush diameter | Inch | 17 |
| Suction bar (squeegee) width | Inch | 33 |
| Drive | Pad-Assist | |
| Brush contact pressure | lbs | 59-62 |
| Solution / recovery capacity | Gal | 6.6 / 6.6 |
| Theoretical / practical productivity | Sq Ft / Hr | 17,200 / 11,180 |
| Operating noise level | dBA | 66 |
| Brush speed | RPM | 180 |
| Vac motor rating | Watts | 500 |
| Vac motor suction | cfm | 51 |
| Waterlift | In of Water | 48 |
| Weight with batteries | Lbs | 240 |
| Dimensions (LxWxH) | Inch | 45 x 20 x 41 |
| Part No | Description |
| 9.841-418.0 | BD 43/25 C Bp pad driver with wet batteries |
| 9.841-419.0 | BD 43/25 C Bp pad driver with AGM batteries |
| Part No. | Description | |
| 4.762-533.0 | Pad driver, 17-inch | ■ |
| 4.777-411.0 | Curved squeegee, 33.5-inch w/caster, polyurethane | ■ |
| 5.035-488.0 | Home Base kit (adapter and cable hook) | ■ |
| 4.905-022.0 | Red disc brush, 17-inch | □ |
| 4.777-416.0 | Curved squeegee, 33.5-inch w/out caster, rubber | □ |
| 6.369-079.0 | Straight squeegee, 33.5-inch made of oil-resistant polyurethane for smooth floors | □ |
■ Included □ Optional
 |
Product Sheet – Karcher BD Classic Series |
