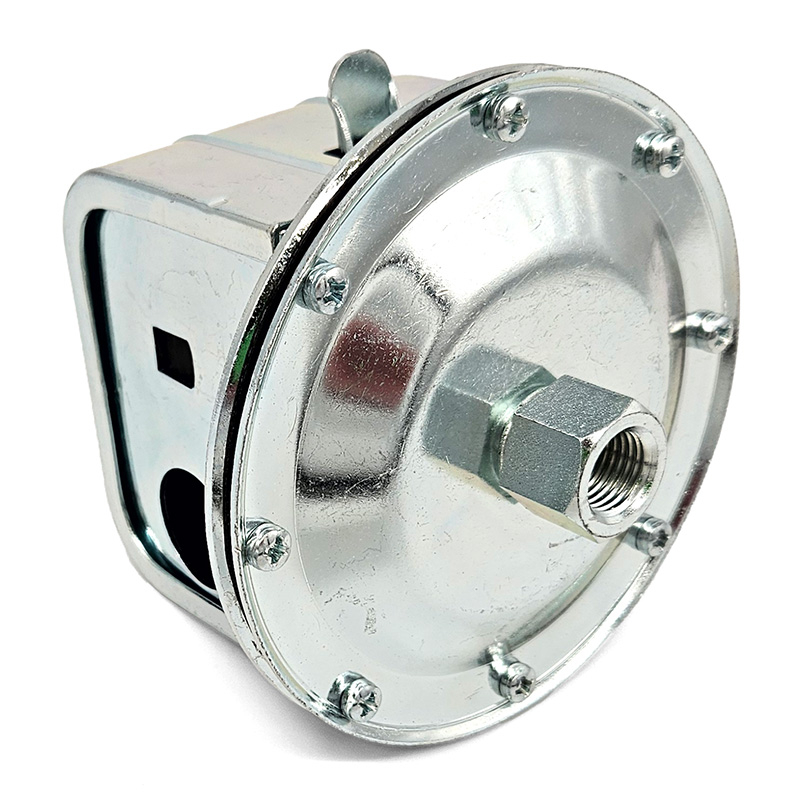

Vacuum Switch, 1.5″ HG Burner Control

SKU: 8.712-391.0 Category:
  • 1.5″ HG
  • Normally Open
  • Temperature Max: 140°F
  • Heavy-duty, 16 Amp Contacts
  • 1/4″ FPT Connect

Loading...

Part Number: 8.712-391.0
OEM / Old Part Number(s): 413031, 8-25100001, 87123910

This 8.712-391.0 Normally Open VACUUM SWITCH with 1.5″ HG closes when the pump vacuum begins to draw water, allowing for burner ignition, then opens when the vacuum is broken; either due to pump shutdown or an empty water tank. Vacuum switches are used by such pressure washer manufacturers as Aaladin for burner control.

Weight 2.72 lbs
Dimensions 4.25 × 4.25 × 3.5 in
